Operation Manual – MSTP
H3C S3100 Series Ethernet Switches Chapter 1 MSTP Configuration
1-60

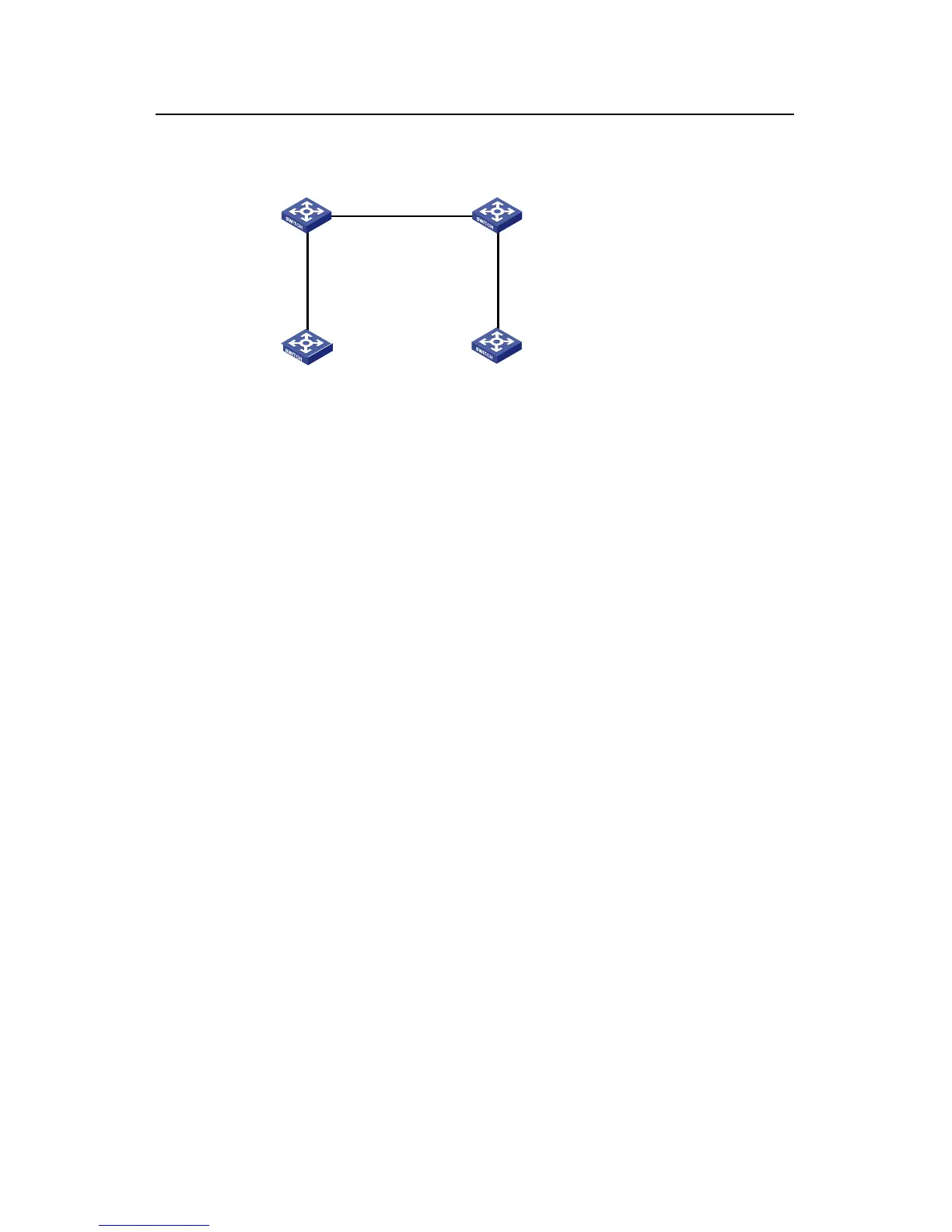

II. Network diagram
Eth 1/0/1
Switch A
Switch D
Switch C
Switch B
Eth 1/0/1
GE 1/0/2
GE 1/0/1
GE 1/0/2
GE 1/0/1
Figure 1-11 Network diagram for VLAN-VPN tunnel configuration
III. Configuration procedure
1) Configure Switch A
# Enable MSTP.
<Sysname> system-view
[Sysname] stp enable
# Add Ethernet 1/0/1 to VLAN 10.
[Sysname] vlan 10
[Sysname-Vlan10] port Ethernet1/0/1
2) Configure Switch B
# Enable MSTP.
<Sysname> system-view
[Sysname] stp enable
# Add Ethernet 1/0/1 to VLAN 10.
[Sysname] vlan 10
[Sysname-Vlan10] port Ethernet1/0/1
3) Configure Switch C
# Enable MSTP.
<Sysname> system-view
[Sysname] stp enable
# Enable the VLAN-VPN tunnel function.
[Sysname] vlan-vpn tunnel
# Add GigabitEthernet 1/0/1 to VLAN 10.
[Sysname] vlan 10
[Sysname-Vlan10] port GigabitEthernet1/0/1
[Sysname-Vlan10] quit
