II. Network diagram
Network
FTP server/TFTP server
SNMP host/logging host
63.172.55.1/24
69.172.55.4/24
Eth1/0/1
Vlan-int2
163.172.55.1/24
Eth1/0/3
Eth1/0/2
Eth1/0/1 Eth1/0/1
Member switch
MAC:000f.e001.0011
Member Switch
MAC: 000f.e001.0012
Management Switch
Cluster

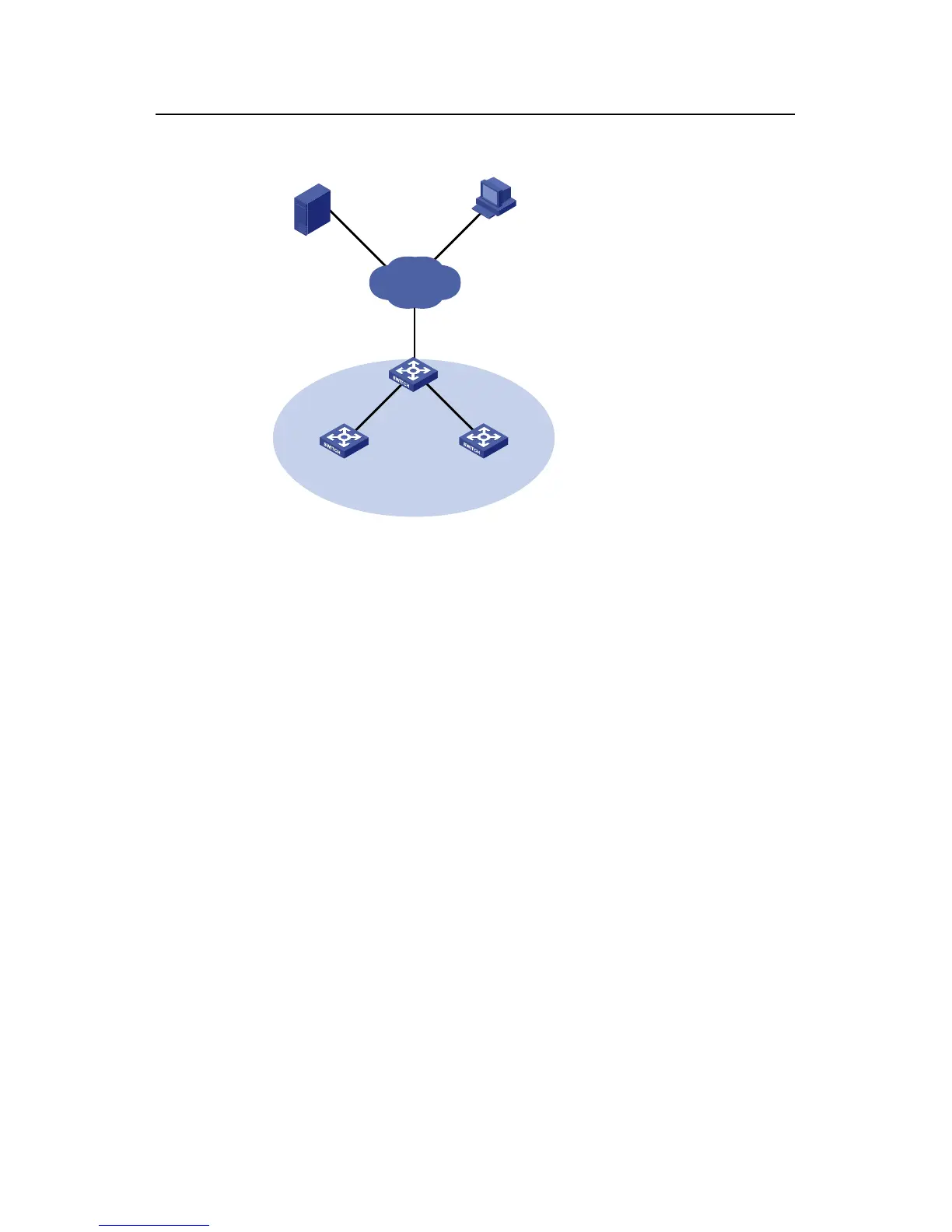

Figure 2-4 Network diagram for HGMP cluster configuration
III. Configuration procedure
1) Configure the member devices (taking one member as an example)
# Enable NDP globally and on Ethernet1/0/1.
<Sysname> system-view
[Sysname] ndp enable
[Sysname] interface Ethernet 1/0/1
[Sysname-Ethernet1/0/1] ndp enable
[Sysname-Ethernet1/0/1] quit
# Enable NTDP globally and on Ethernet1/0/1.
[Sysname] ntdp enable
[Sysname] interface Ethernet 1/0/1
[Sysname-Ethernet1/0/1] ntdp enable
[Sysname-Ethernet1/0/1] quit
# Enable the cluster function.
[Sysname] cluster enable
2) Configure the management device
# Enable NDP globally and on Ethernet 1/0/2 and Ethernet 1/0/3.
<Sysname> system-view
[Sysname] ndp enable
[Sysname] interface Ethernet 1/0/2
