Operation Manual – PoE-PoE Profile
H3C S3100 Series Ethernet Switches Chapter 2 PoE Profile Configuration
2-4

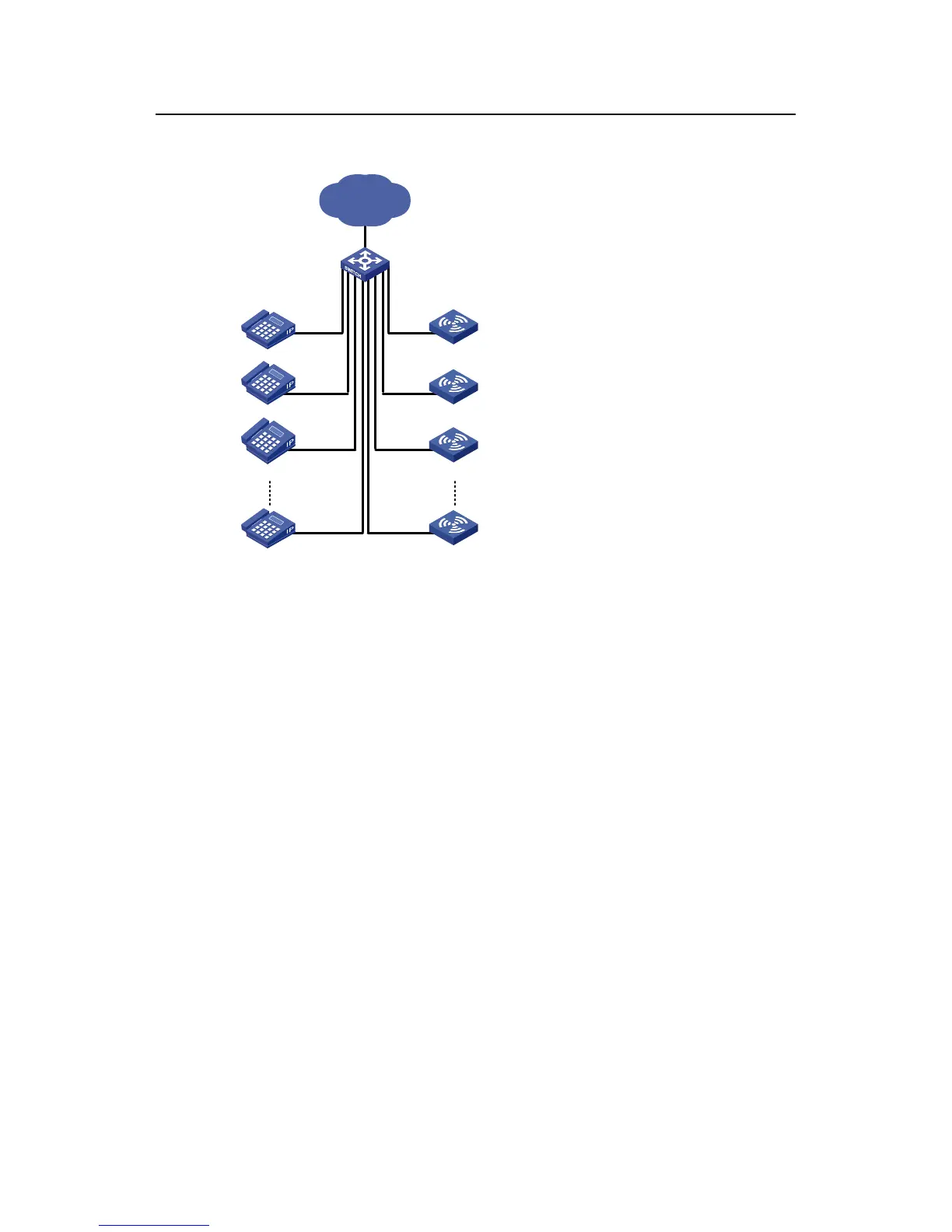

II. Network diagram
Network
IP Phone
Switch A
AP
IP Phone
IP Phone
IP Phone
AP
AP
AP
Eth1/0/1~Eth1/0/5 Eth1/0/6~Eth1/0/10
Figure 2-1 PoE profile application
III. Configuration procedure
# Create Profile1, and enter PoE profile view.
<SwitchA> system-view
[SwitchA] poe-profile Profile1
# In Profile1, add the PoE policy configuration applicable to Ethernet 1/0/1 through
Ethernet 1/0/5 ports for users of group A.
[SwitchA-poe-profile-Profile1] poe enable
[SwitchA-poe-profile-Profile1] poe mode signal
[SwitchA-poe-profile-Profile1] poe priority critical
[SwitchA-poe-profile-Profile1] poe max-power 3000
[SwitchA-poe-profile-Profile1] quit
# Display detailed configuration information for Profile1.
[SwitchA] display poe-profile name Profile1
Poe-profile: Profile1, 3 action
poe enable
poe max-power 3000
poe priority critical
# Create Profile2, and enter PoE profile view.
