Operation Manual – HWPing
H3C S3100 Series Ethernet Switches Chapter 1 HWPing Configuration
1-21
II. Network diagram

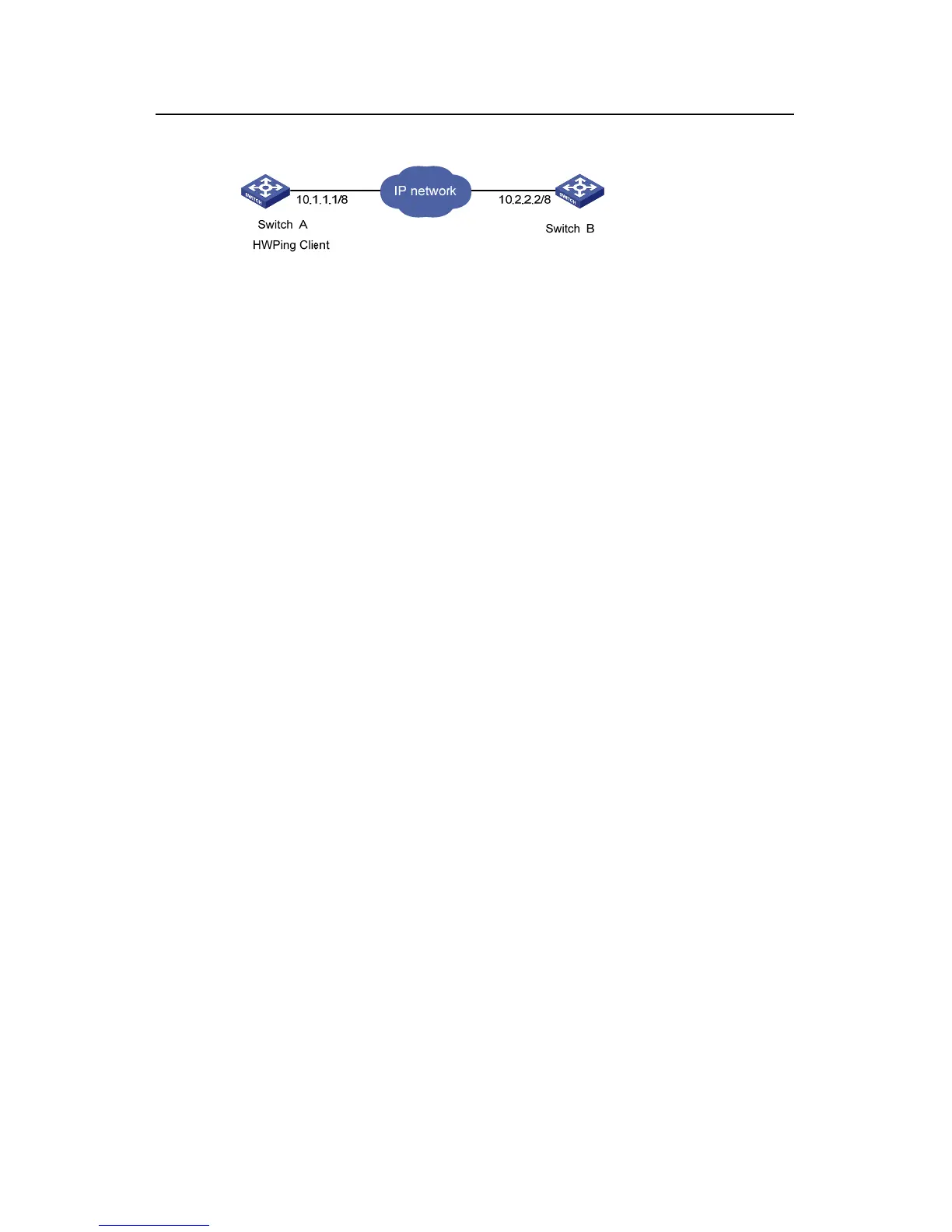

Figure 1-2 Network diagram for the ICMP test
III. Configuration procedure
z Configure HWPing Client (Switch A):
# Enable HWPing client.
<Sysname> system-view
[Sysname] hwping-agent enable
# Create a HWPing test group, setting the administrator name to "administrator" and
test tag to "ICMP".
[Sysname] hwping administrator icmp
# Configure the test type as icmp.
[Sysname-hwping-administrator-icmp] test-type icmp
# Configure the destination IP address as 10.2.2.2.
[Sysname-hwping-administrator-icmp] destination-ip 10.2.2.2
# Configure to make 10 probes per test.
[Sysname-hwping-administrator-icmp] count 10
# Set the probe timeout time to 5 seconds.
[Sysname-hwping-administrator-icmp] timeout 5
# Start the test.
[Sysname-hwping-administrator-icmp] test-enable
# Set the maximum number of history records that can be saved to 5.
[Sysname-hwping-administrator-icmp] history-records 5
# Display test results.
[Sysname-hwping-administrator-icmp] display hwping results administrator
icmp
HWPing entry(admin administrator, tag icmp) test result:
Destination ip address:10.2.2.2
Send operation times: 10 Receive response times: 10
Min/Max/Average Round Trip Time: 3/6/3
Square-Sum of Round Trip Time: 145
Last succeeded test time: 2000-4-2 20:55:12.3
Extend result:
