14-81
Using the Web Browser Interface for Basic Configuration Tasks
Configuring ADSL Interfaces

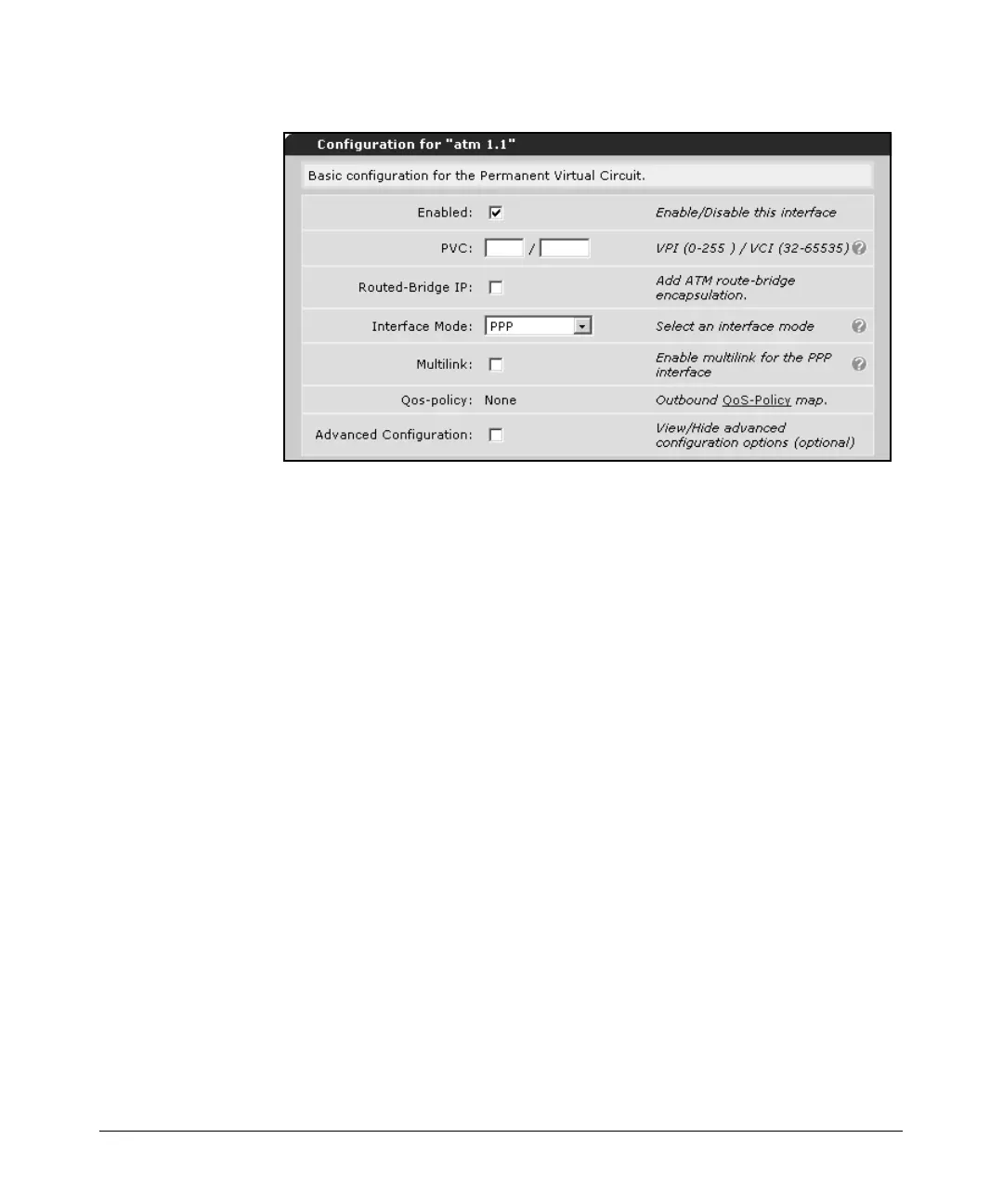

Figure 14-58. Configuration for ATM Subinterface Window
16. Click the Enabled box to activate the subinterface.
17. For PVC, enter the virtual path identifier (VPI) in the first box, and enter
the virtual channel identifier (VCI) in the second box. For example, if your
ADSL service provider assigned you a VPI/VCI of 0/33, you would enter 0
in the first box and 33 in the second box.
18. For Interface Mode, use the pull-down menu to select one of the following:
• IP routing, if you are configuring just ATM as the Data Link Layer
protocol
• PPPoE client, if you are configuring PPPoE for the ADSL interface
• PPP, if you are configuring PPPoA
19. If your ADSL service provider uses routed bridged encapsulation (RBE),
select the Routed-Bridge IP box.
20. To configure the ATM encapsulation method, quality of service (QoS)
settings, and Operation, Administration, and Maintenance (OAM) set-
tings, click the Advanced Configuration box at the top of the Configura-
tion for ATM Subinterface window. The Advanced Configuration section
is displayed.
