Lucent Technologies FT-2000 OC-48 - Page 143

Platform Descriptions
Issue 8.0 July 2002
3-23
The High-Speed Shelf has two front covers (Figure 3-13). One cover covers the
interconnection panel and the other covers the circuit packs. Openings are
provided in the top cover that allow the filter panel to show through. The covers
are hinged and can be easily removed for maintenance access.

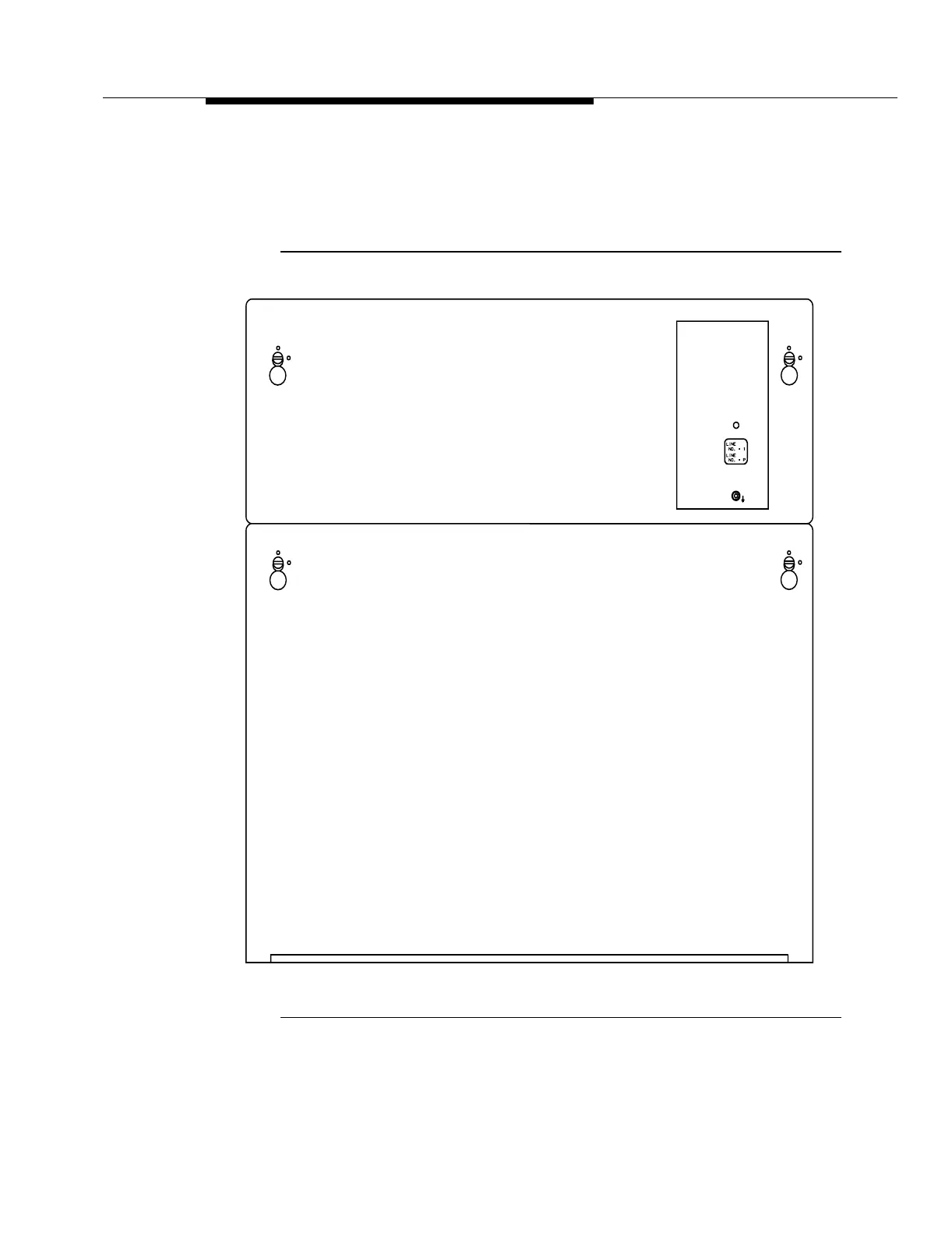

Figure 3-13. High-Speed Shelf (with Covers)
STRAP GROUND
PWR
ON
High Speed Shelf
ESD WRIST
