Troubleshooting
Maintenance, Troubleshooting, and Repair
7-49
The Identity window provides the following information:
System Name: name of the selected switch.
System Location: where the switch is located.
System Contact: person to contact if the system experiences trouble.
System Up-Time: how long the system has been active
Product: displays the HPJ4813A ProCurve Switch 2524 information
Version: firmware version installed
IP Address: IP Address assigned to switch
Management Server: website URL to go to for help
For information on network traffic quality, go to the Status tab, and then Port Counters.
See Figure 7-17:

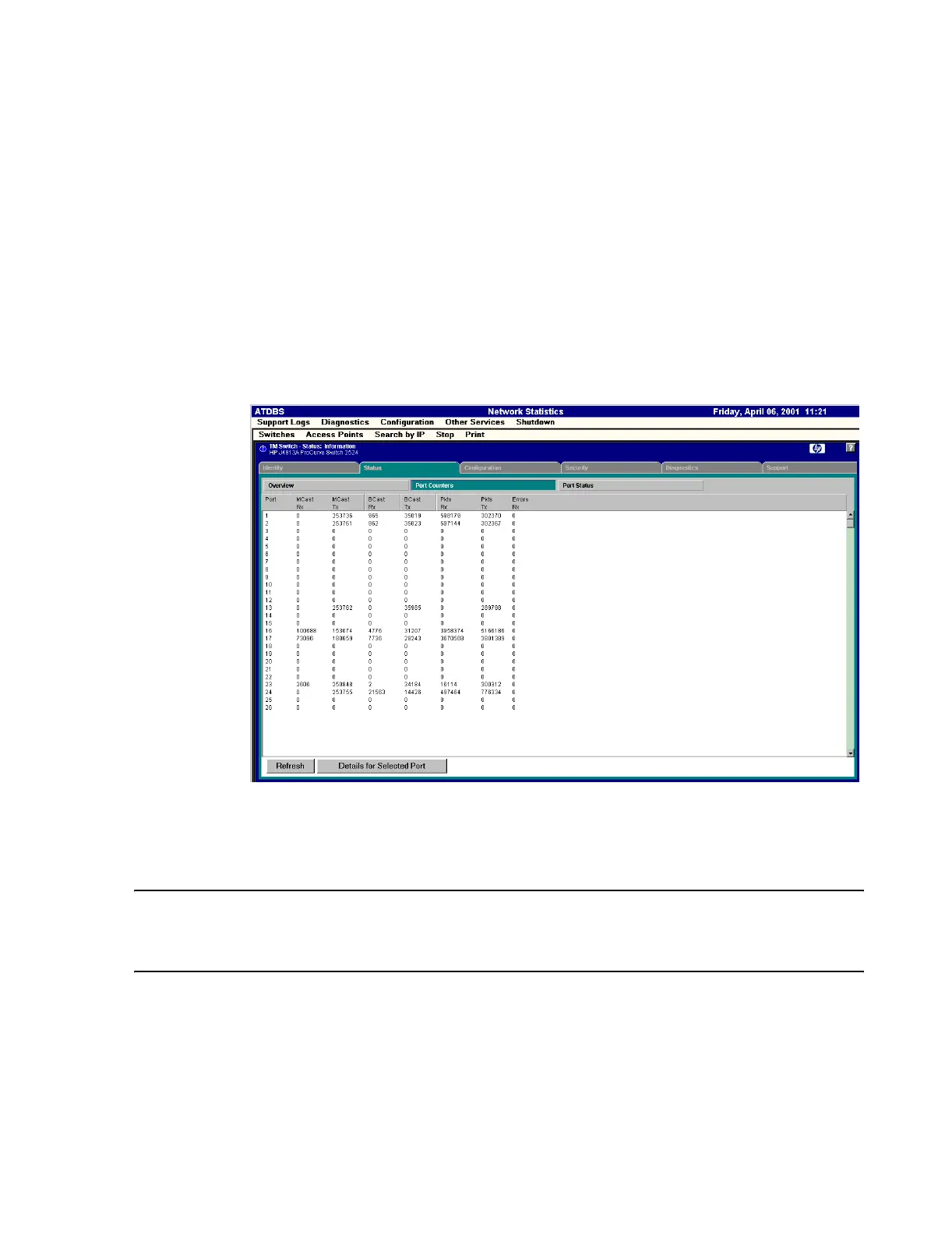

Figure 7-17 Status/Port Counters - HP 2524 Switch
The Device View under Configuration tab (this window gives another visualization of the
switch port status - Figure 7-18).
Caution Do not use the Configuration screens to make modifications to the Switch configuration.
Use the Network Configuration Tool described in the Clinical Network documentation
to ensure that all parameters are set properly.
:
