Setting up the machine

3.9 Monitoring axis and spindle data

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

101

Tailstock

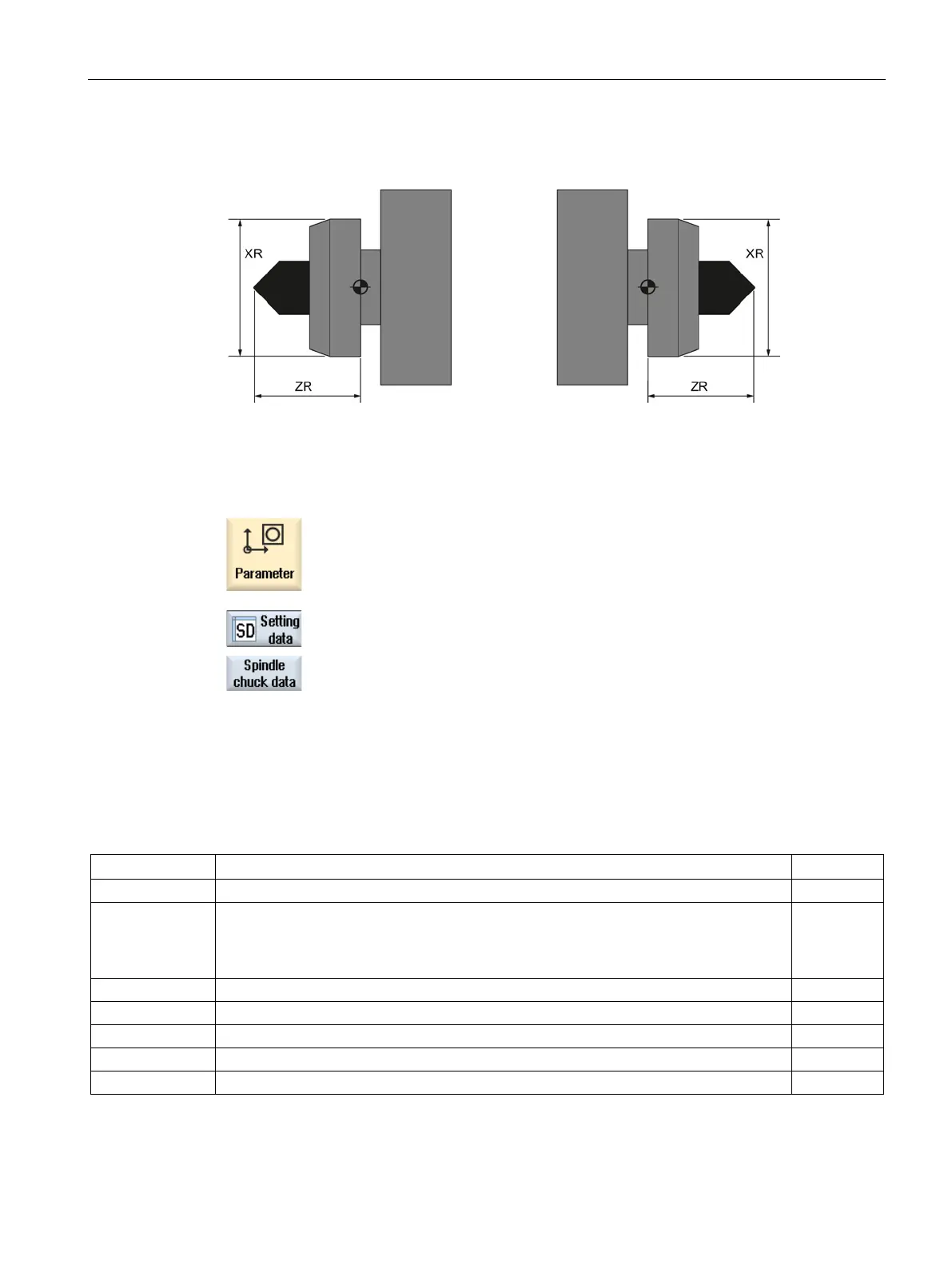

Dimensioning the main spindle tailstock

Dimensioning the counter-spindle tailstock

Procedure

Select the "Parameter" o

perating area.

Press the "Setting data" and "Spindle chuck data" softkeys.

The "Spindle Chuck Data" window opens.

Enter the desired parameter.

The settings become active immediately.

See also

Machining with movable counterspindle (Page 601)

Parameter

Description

Unit

Main spindle

Dimensions of the forward edge or stop edge

• Jaw type 1

• Jaw type 2

ZC1

Main spindle chuck dimensions (inc)

ZS1

Main spindle stop dimensions (inc)

ZE1

Jaw dimension, main spindle (inc) - only for "Jaw type 2"

Tailstock diameter - only for tailstock that has been set-up

Tailstock length - only for tailstock that has been set-up
