Programming technology functions (cycles)

9.7 Additional cycles and functions in ShopTurn

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

587

9.7.8

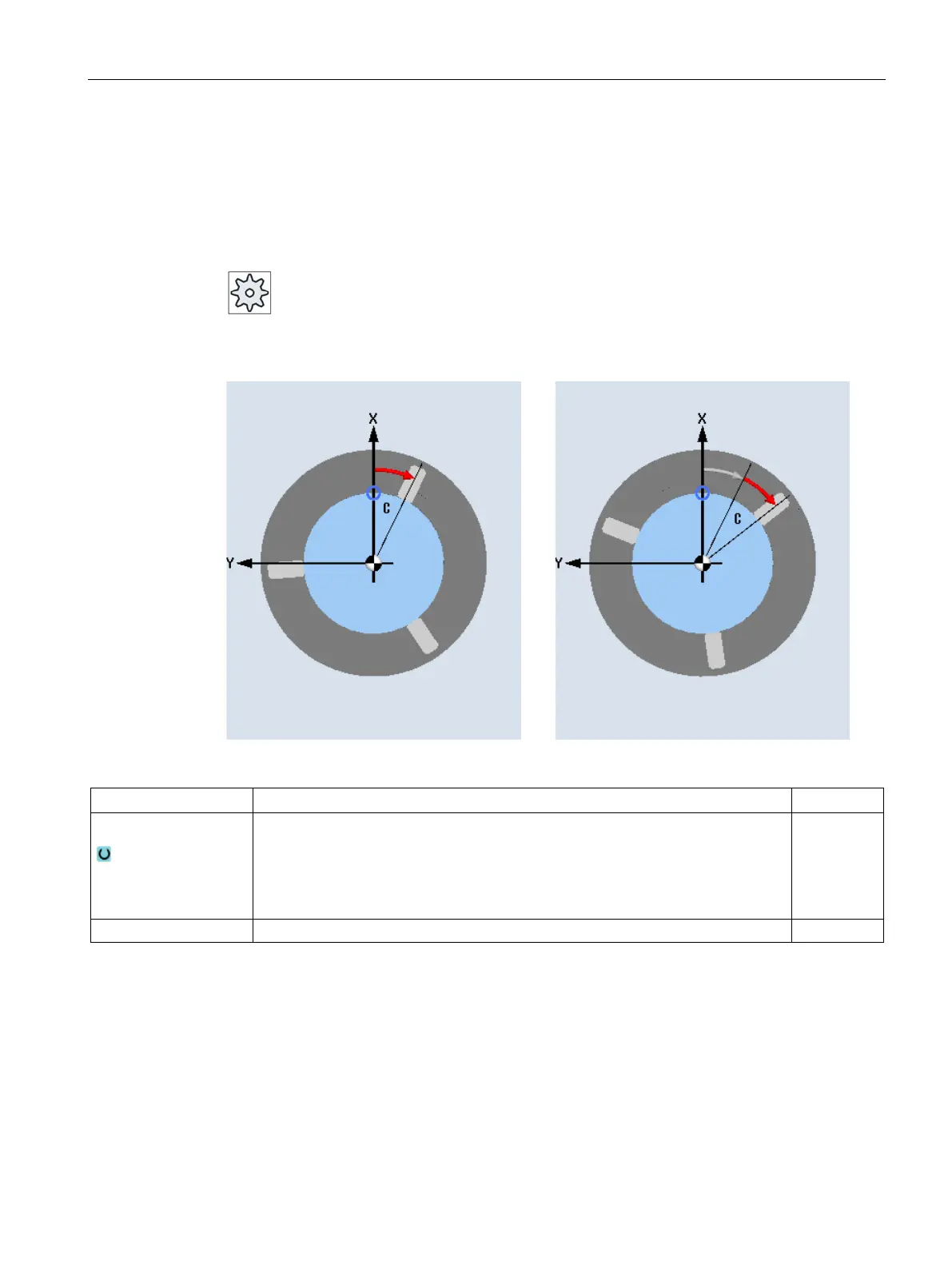

Rotation C

You can rotate the C axis through a specific angle to enable subsequent machining

operations to be performed at a particular position on the face or peripheral surface.

The direction of rotation is set in a machine data element.

Machine manufacturer

Please refer to the machine manufacturer's specifications.

New C axis rotation

Additive C axis rotation

Parameters

Description

Unit

Rotation

• New

New rotation

• Additive

Additive rotation

Rotation C

Degrees
