Siemens SINUMERIK 828D User Manual

Machining the workpiece
5.7 Starting machining at a specific point
Turning
134 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
5.7.4
Defining an interruption point as search target
Requirement
A program was selected in "AUTO" mode and interrupted during execution through CYCLE
STOP or RESET.
Software option
You require the "Extended operator functions" option (only for 828D).

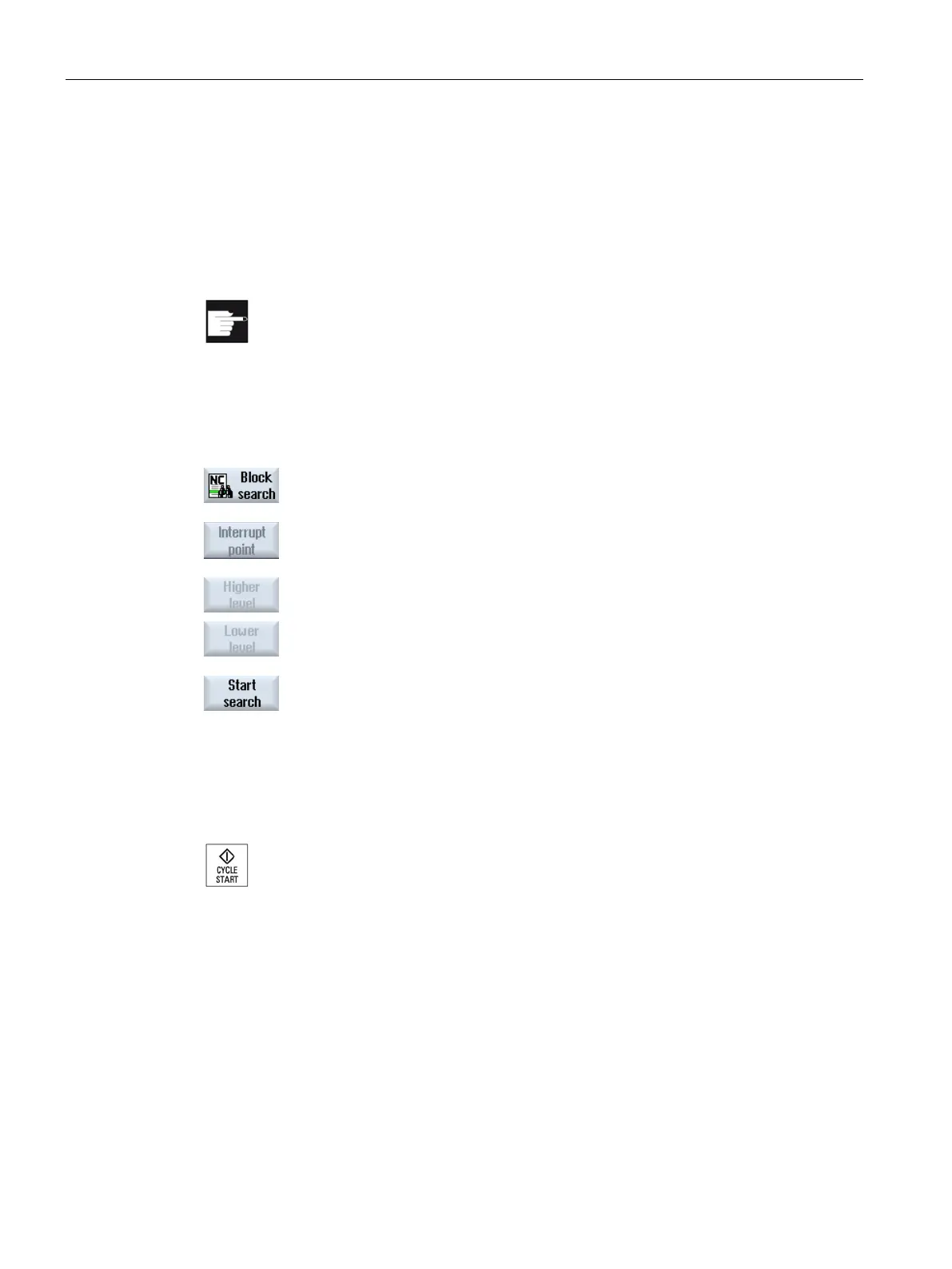

Procedure
1.
Press the "Block search" softkey.
2.
Press the "Interrupt point" softkey.
The interruption point is loaded.
3.
If the "Higher level" and "Lower level" softkeys are available, use these
to change the program level.
4.
Press the "Start search" softkey.
The search starts. Your specified search mode will be taken into a
c-
count.
The search screen closes.
The current block will be displayed in the "Program" window as soon as
the target is found.
5.
Press the <CYCLE START> key twice.
The execution will continue from the interru
ption point.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
