Creating a G code program
7.3 Program structure
Turning
218 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

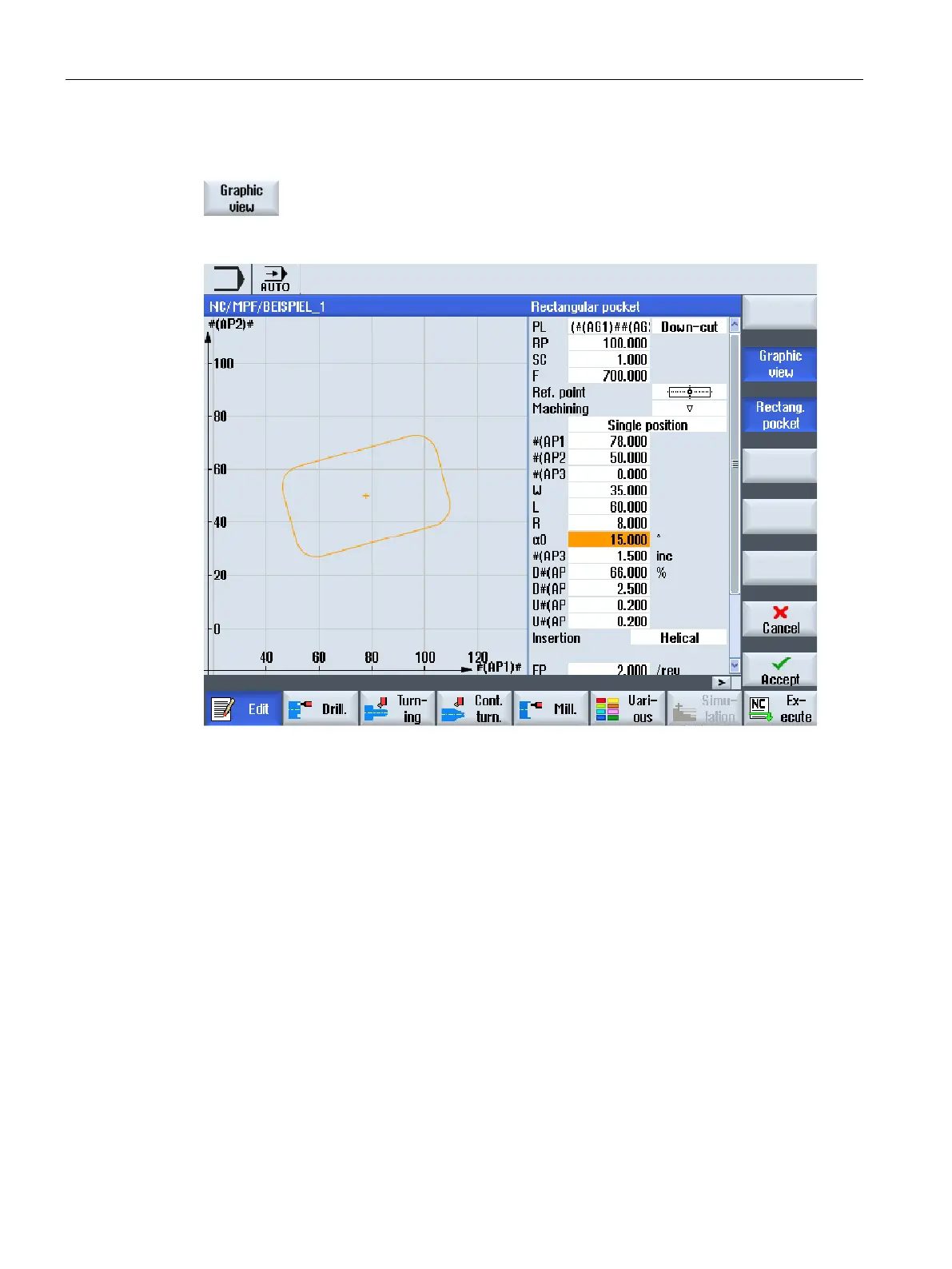

Parameter screen with graphic view
Press the "Graphic view" softkey to toggle between the help screen and
the graphic view in the screen.
Figure 7-3 Parameter screen with a graphical view of a G code program block
7.3
Program structure
G_code programs can always be freely programmed. The most important commands that
are included in the rule:
● Set a machining plane
● Call a tool (T and D)
● Call a work offset
● Technology values such as feedrate (F), feedrate type (G94, G95,....), speed and
direction of rotation of the spindle (S and M)
● Positions and calls, technology functions (cycles)
● End of program
For G code programs, before calling cycles, a tool must be selected and the required
technology values F, S programmed.
A blank can be specified for simulation.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
