Siemens SINUMERIK 828D User Manual

Tool management
12.5 Tool list
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
691
12.5.8
Code carrier connection (only 840D sl)
12.5.8.1
Overview
You have the option of configuring a code carrier connection.
This means that the following functions are available in SINUMERIK Operate:
● Creating a new tool from code carrier
● Unloading tools on code carrier
Software option
In order to use the functions, you require the option "Tool Ident Connection".
References
Further details on tool management with code carrier and the configuration of the user
interface in SINUMERIK Operate can be found in the following reference:
● Function Manual SINUMERIK Integrate for Production AMB, AMC AMM/E
● SINUMERIK Operate (IM9) / SINUMERIK 840D sl Commissioning Manual
With a code carrier connection, in the list of favorites, there is also a tool available.

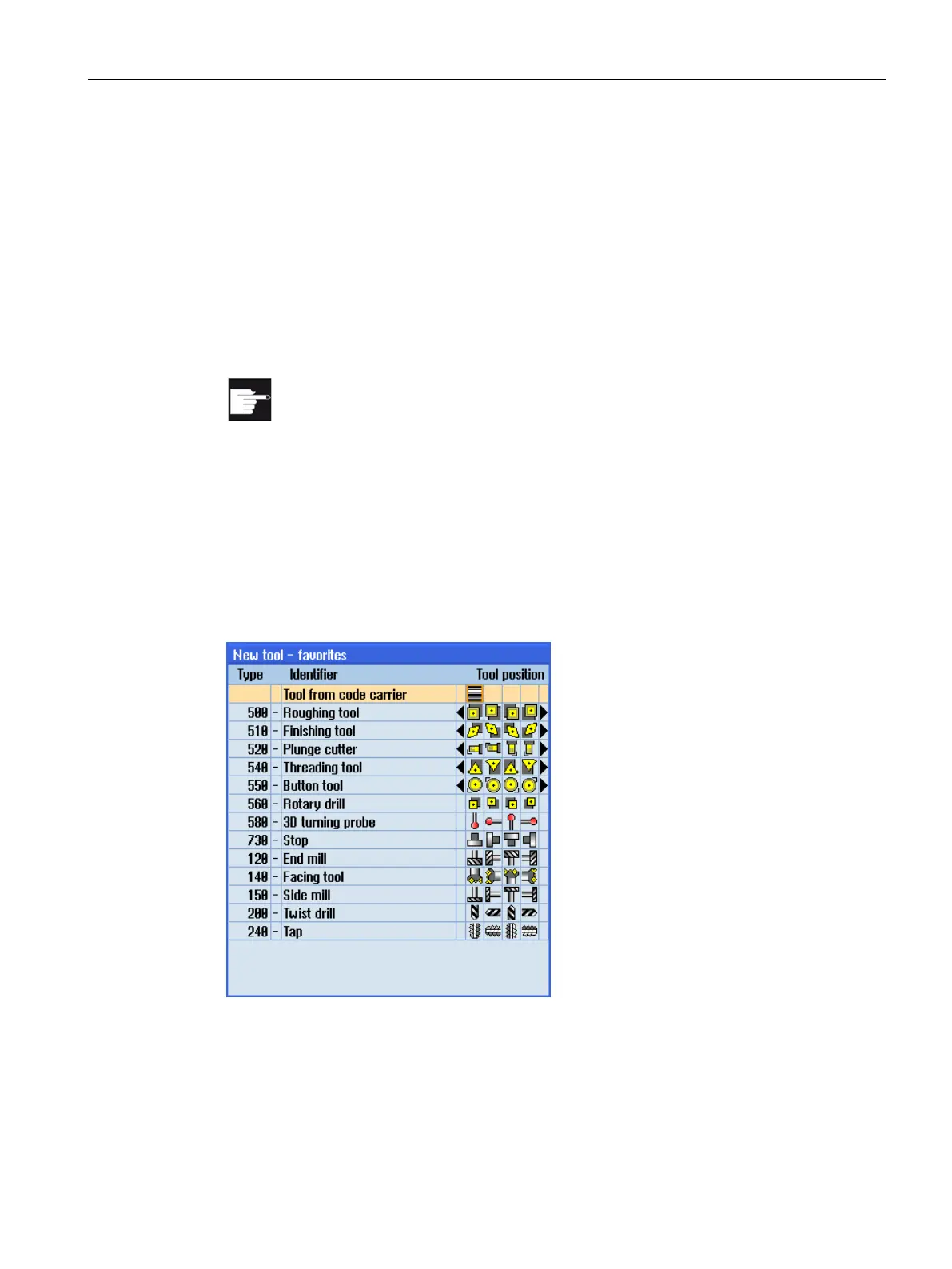

Figure 12-18 New tool from code carrier in the list of favorites
