Creating a ShopTurn program

8.18 Example: Standard machining

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

287

8.18.3

Results/simulation test

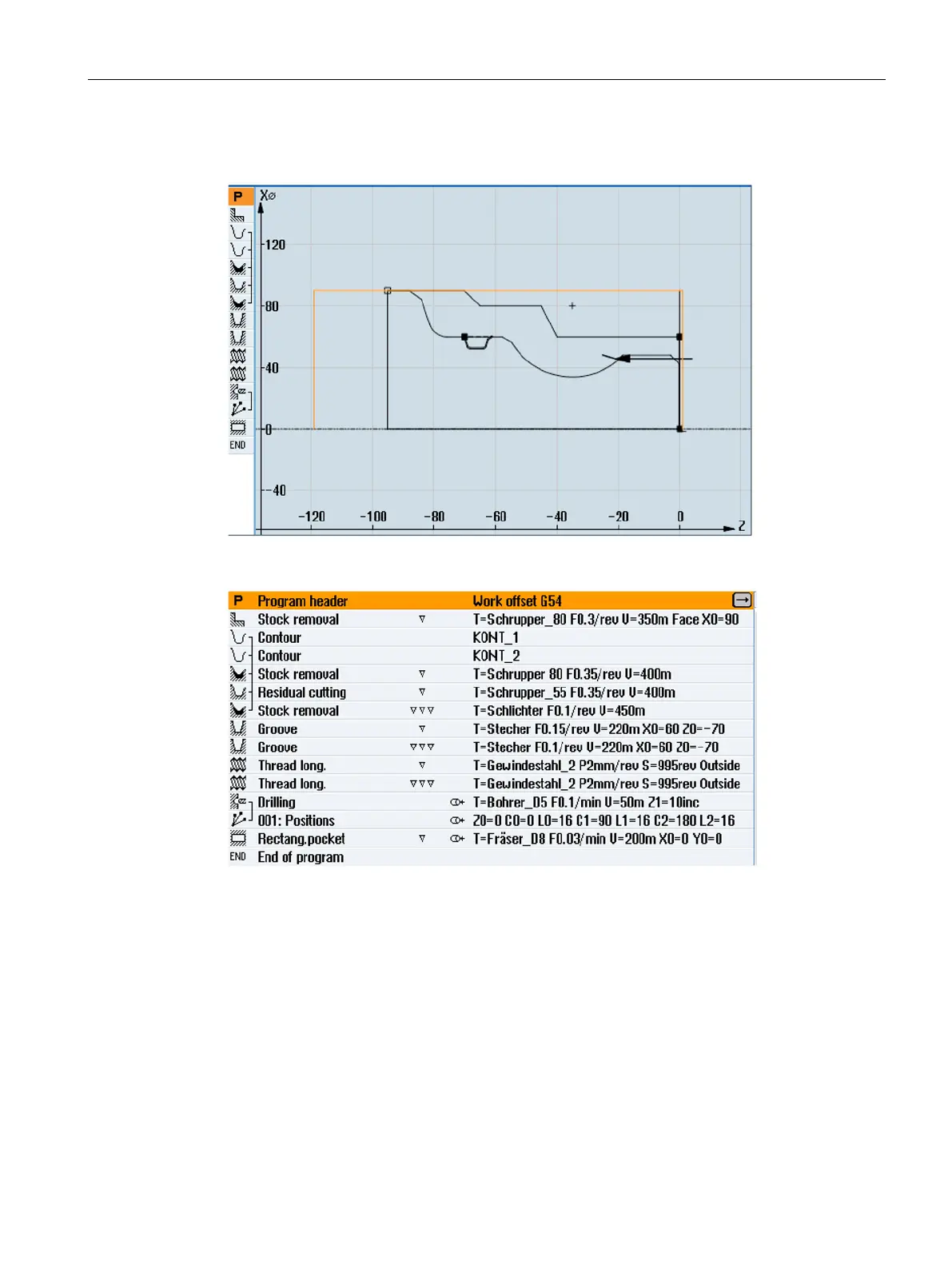

Figure 8-10 Programming graphics

Figure 8-11 Process plan

Program test by means of simulation

During simulation, the current program is calculated in its entirety and the result displayed in

graphic form.
