Tool management

12.15 Working with multitool

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

721

12.15.1

Tool list for multitool

If you work with a multitool, the tool list is supplemented by the column for the multitool

location number. As soon as the cursor is at a multitool in the tool list, certain column

headings change.

Column heading

Meaning

Location

Magazine/location number

MT loc. Multitool location number

TYPE

Symbol for multitool

Multitool name

Name of the multitool

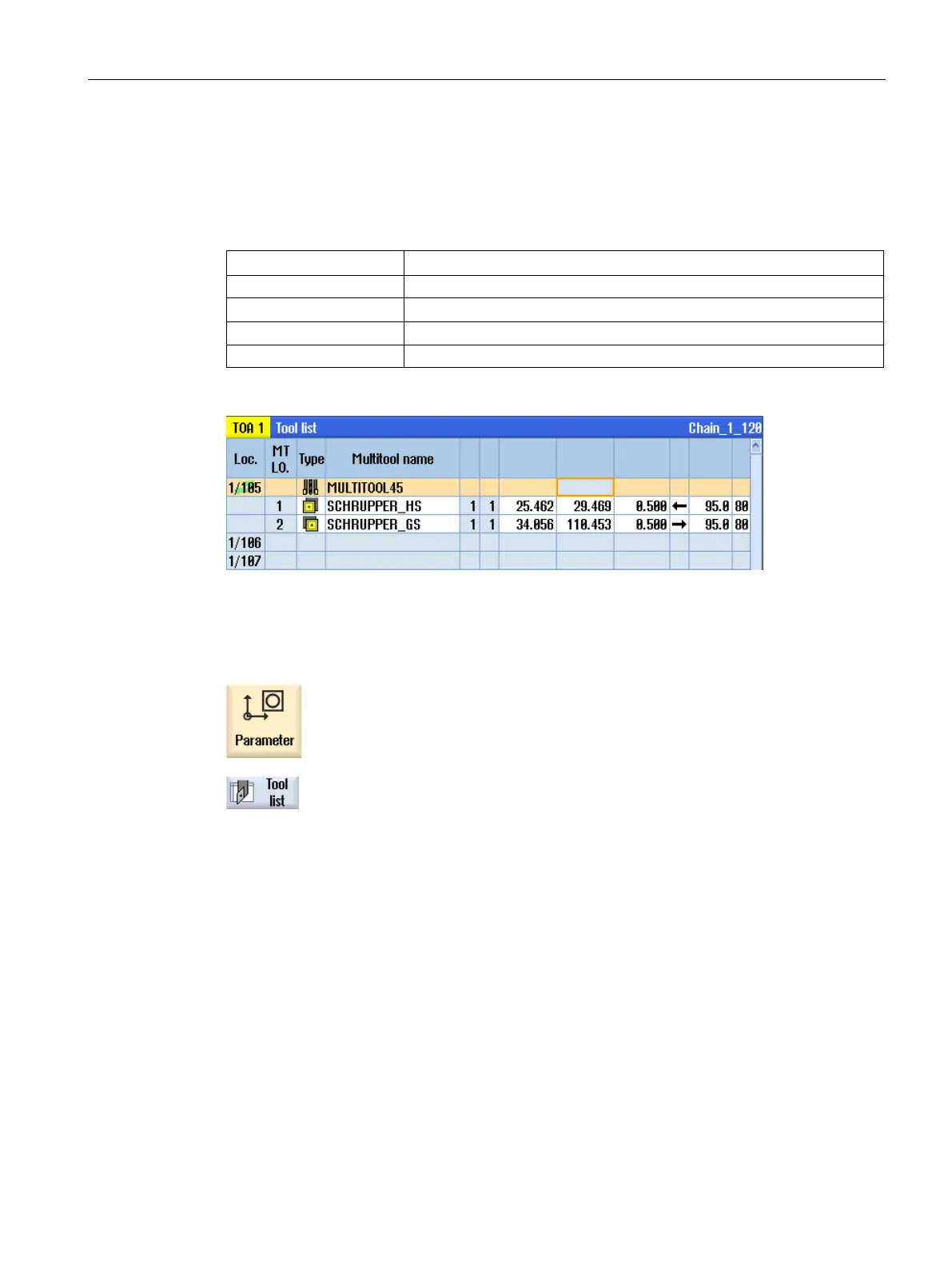

Figure 12-20 Toll list with multitool in the spindle

Procedure

Sel

ect the "Parameter" operating area.

Press the "Tool list" softkey.

The "Tool List" wind

ow opens.
