Siemens SINUMERIK 828D - Displaying the Network Symbol Information Table

Edit PLC user program (828D only)
24.18 Displaying the network symbol information table
Turning
906 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
24.18
Displaying the network symbol information table
All of the symbolic identifiers used in the selected network are displayed in the "Network
symbol information table" window.
The following information is listed:
● Names
● Absolute addresses
● Comments
The symbol information table remains empty for networks that do not contain any global
symbols.

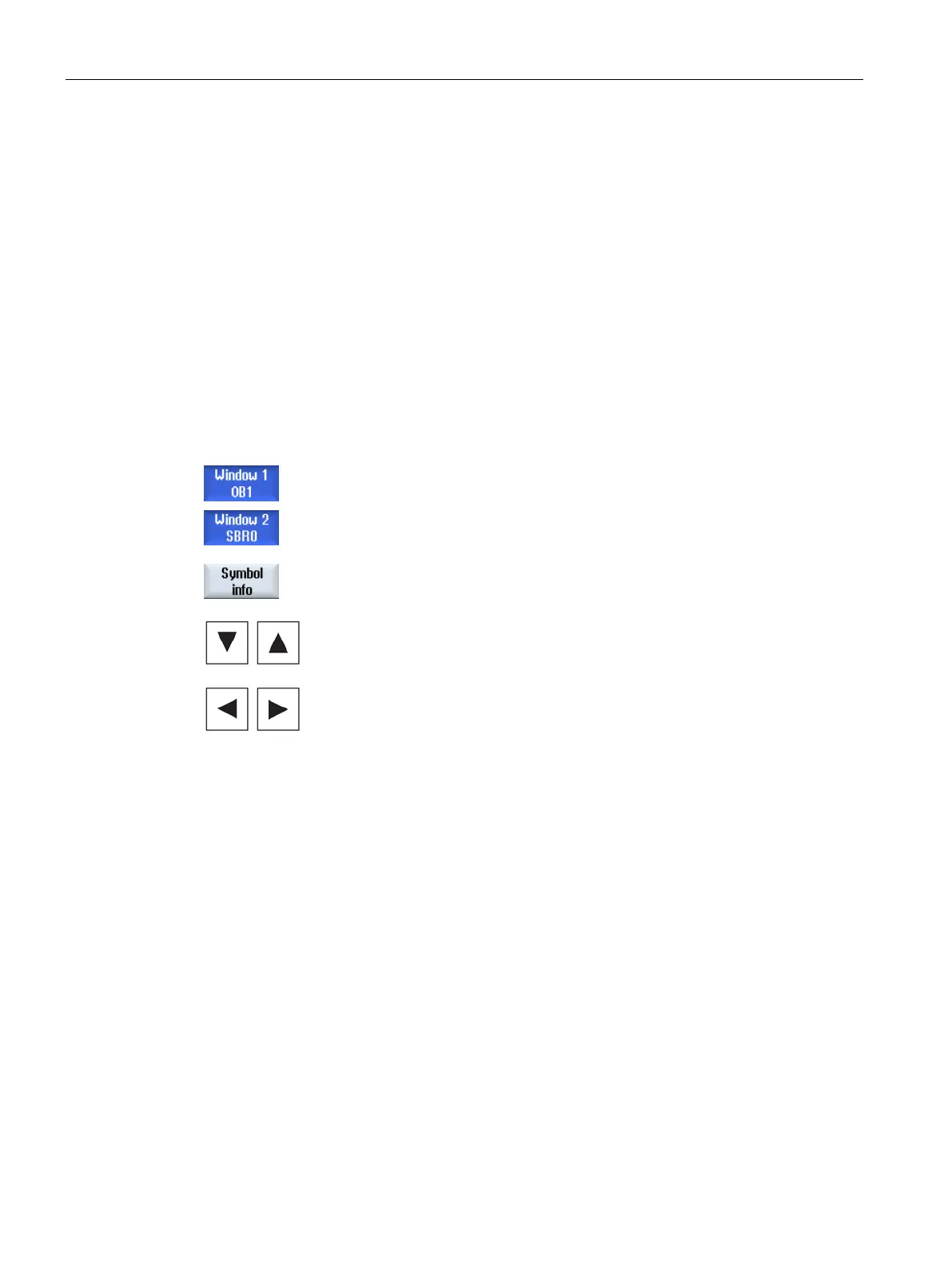

Procedure
1.
The ladder diagram display (LAD) is opened.
2.
Select the desired network and press the "Symbol info" softkey.
The "Network Symbol
Information Table" window appears.
3.
Use the cursor keys to move within the table.
