Creating a ShopTurn program

8.18 Example: Standard machining

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

273

8.18.1

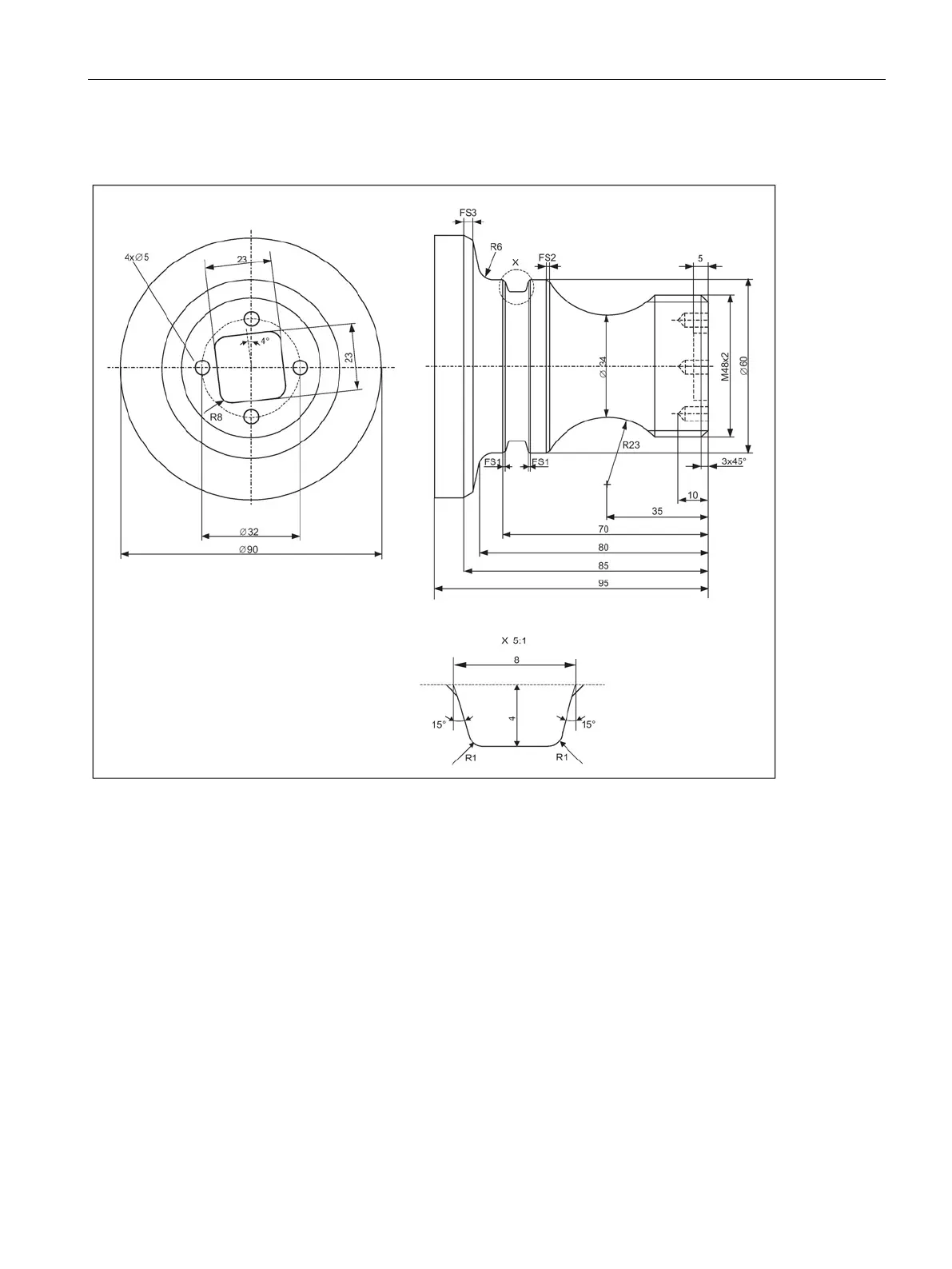

Workpiece drawing
