Siemens SINUMERIK 828D User Manual

Programming technology functions (cycles)
9.7 Additional cycles and functions in ShopTurn
Turning
602 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
5.

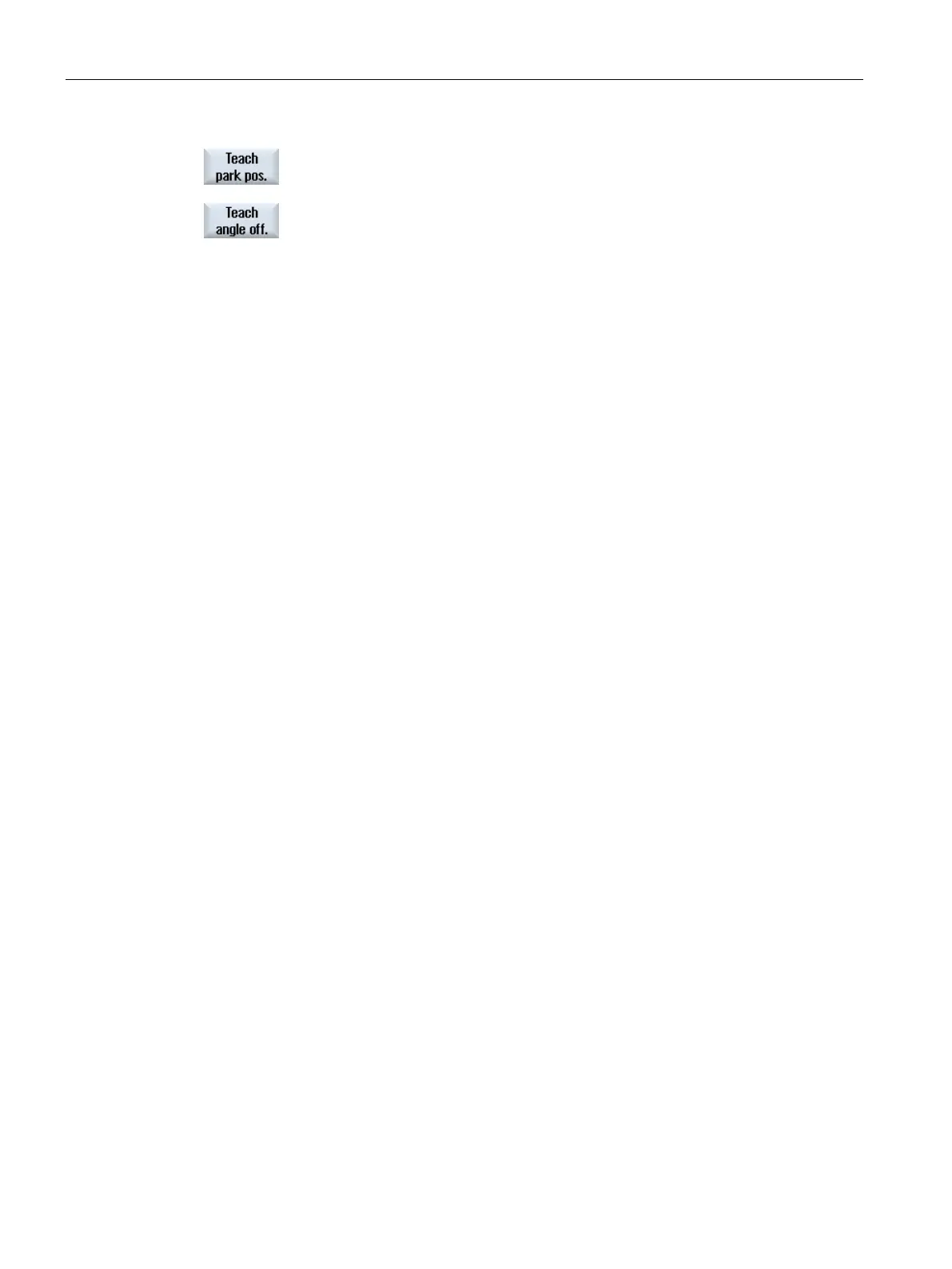

Press the “Teach park pos.” softkey.
The actual tool park position is saved.
6.
Press the “Teach angl. offset" softkey.
The actual angular difference between the main and counter
-spindles
will be saved.
9.7.17.1
Programming example: Machining main spindle – Transfer workpiece – Machining
counterspindle
The programming for this operation might look like this:
Programming steps - alternative 1:
● Machining, main spindle
● Gripping
● Withdrawing
● Counter-spindle machining side
● Machining, counter-spindle
Programming steps - alternative 2:
● Machining, main spindle
● Counter-spindle complete transfer (gripping, withdrawing and machining side)
● Machining, counter-spindle
9.7.17.2
Programming example: Machining counter-spindle – Transfer workpiece – Machining
main spindle
The programming for this operation might look like this:
Programming steps - alternative 1:
● Machining, counter-spindle
● Gripping
● Machining side
● Machining, main side
Programming steps - alternative 2:
● Machining, counter-spindle
● Complete transfer (gripping and machining side)
● Machining, main spindle
