Creating a ShopTurn program

8.14 Selection of the cycles via softkey

Turning

262 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

8.14

Selection of the cycles via softkey

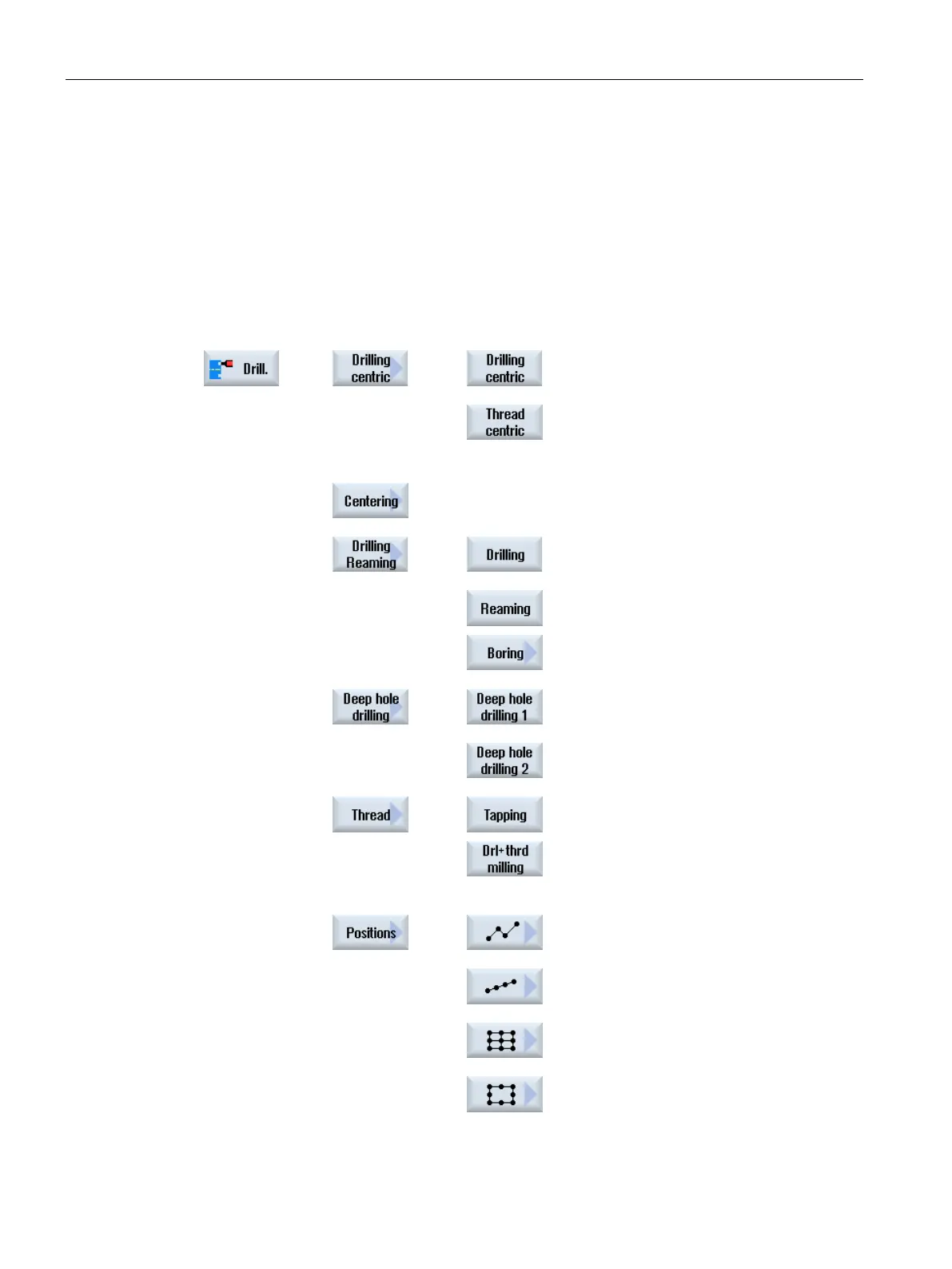

Overview of the machining steps

The following machining steps are available.

All of the cycles/functions available in the control are shown in this display. However, at a

specific system, only the steps possible corresponding to the selected technology can be

selected.

⇒

Drilling cycles only for turning/milling machine

⇒
