Introduction

2.4 User interface

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

41

2.4

User interface

2.4.1

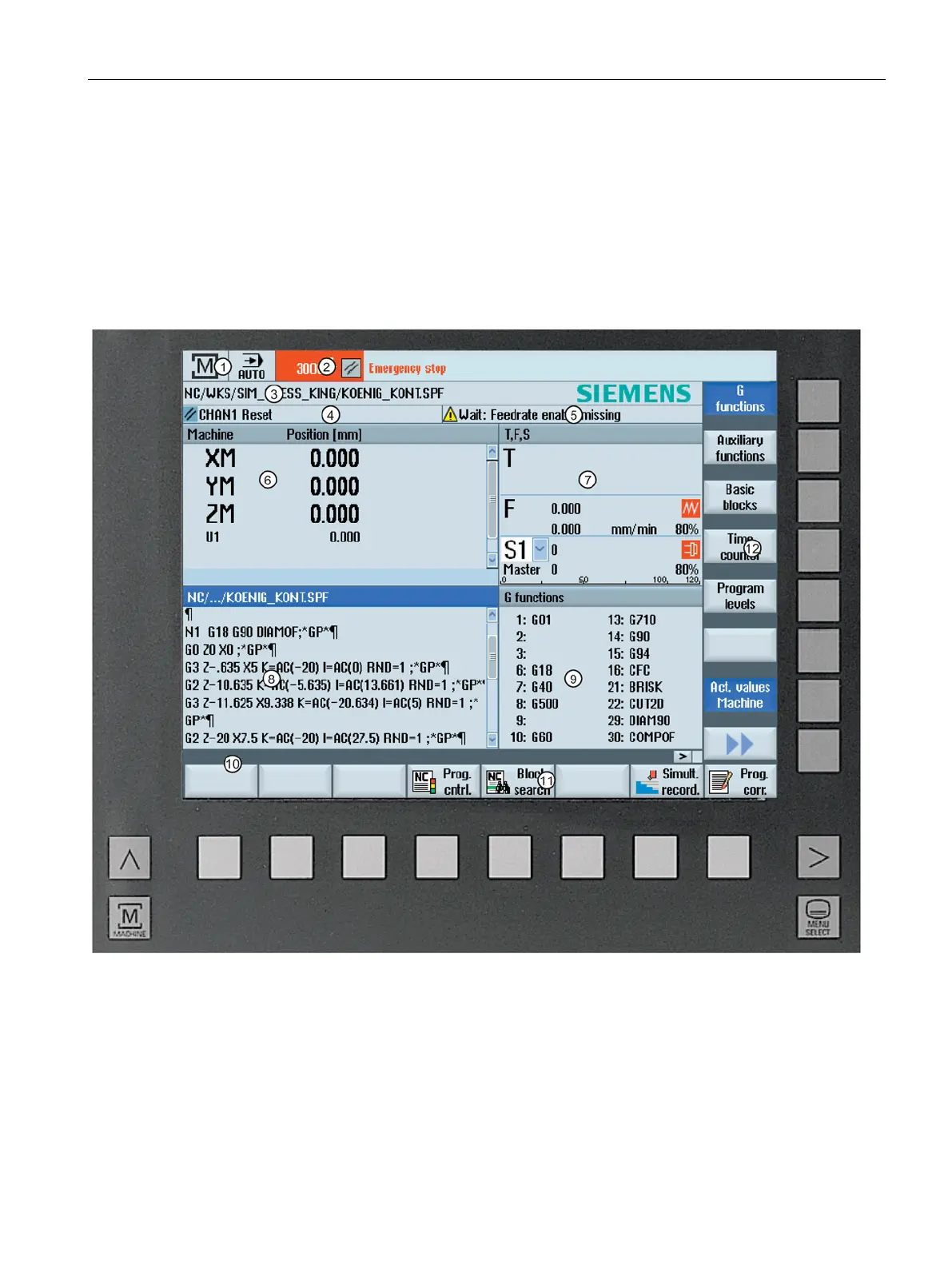

Screen layout

Overview

1

Active operating area and mode

2

Alarm/message line

3

Program name

4

Channel state and program control

5

Channel operational messages

6

Axis position display in actual value window
