Siemens SINUMERIK 828D - Traversing Axes; Traverse Axes by a Defined Increment

Working in manual mode
4.3 Traversing axes
Turning
114 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
4.3
Traversing axes
You can traverse the axes in manual mode via the Increment or Axis keys or handwheels.
During a traverse initiated from the keyboard, the selected axis moves at the programmed
setup feedrate. During an incremental traverse, the selected axis traverses a specified
increment.
Set the default feedrate
Specify the feedrate to be used for axis traversal in the set-up, in the "Settings for Manual
Operation" window.
4.3.1
Traverse axes by a defined increment
You can traverse the axes in manual mode via the Increment and Axis keys or handwheels.

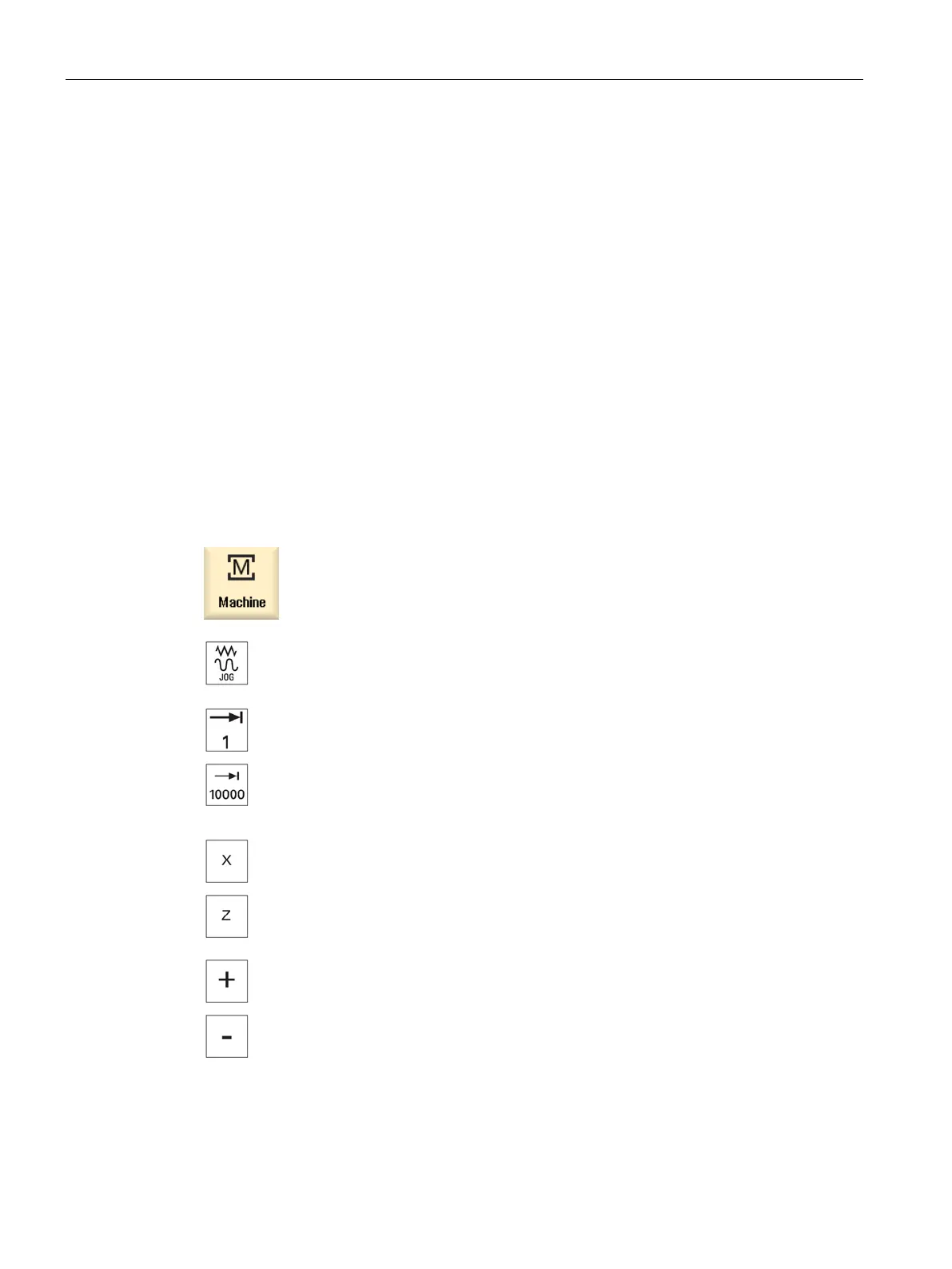

Procedure
1.
Select the "Machine" operating area.
2.
Press the <JOG> key.
3.
Press keys 1, 10, etc. up to 10000 in order to move the axis in a defined
increment.
The numbers on the key
s indicate the traverse path in micrometers or
microinches.
Example: Press the "100" button for a desired increment of 100
μm (=
0.1 mm).
4.
Select the axis to be traversed.
5.
Press the <+> or <
-> key.
Each time you press the key the selec
ted axis is traversed by the de-
fined increment.
Feedrate and rapid traverse override switches can be operative.
