Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

849

HT 8

19.1

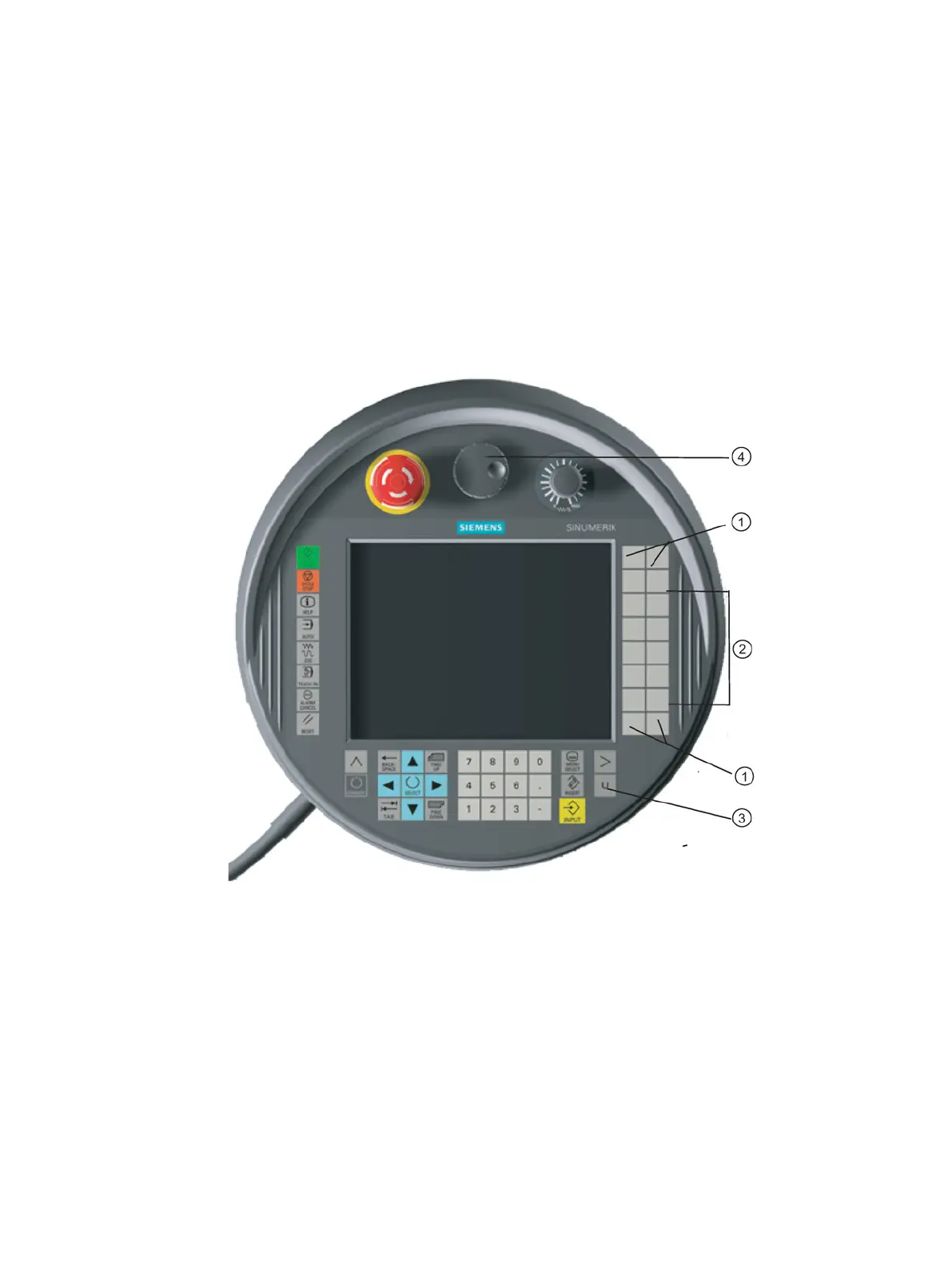

HT 8 overview

The mobile SINUMERIK HT 8 handheld terminal combines the functions of an operator

panel and a machine control panel. It is therefore suitable for visualization, operation, teach

in, and programming at the machine.

Customer keys (user-defined)

Traversing keys

User menu key

Handwheel (optional)

Operation

The 7.5 TFT color display provides touch operation.
