Tool management

12.3 Tool types

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

671

12.3

Tool types

A number of tool types are available when you create a new tool. The tool type determines

which geometry data is required and how it will be computed.

Tool types

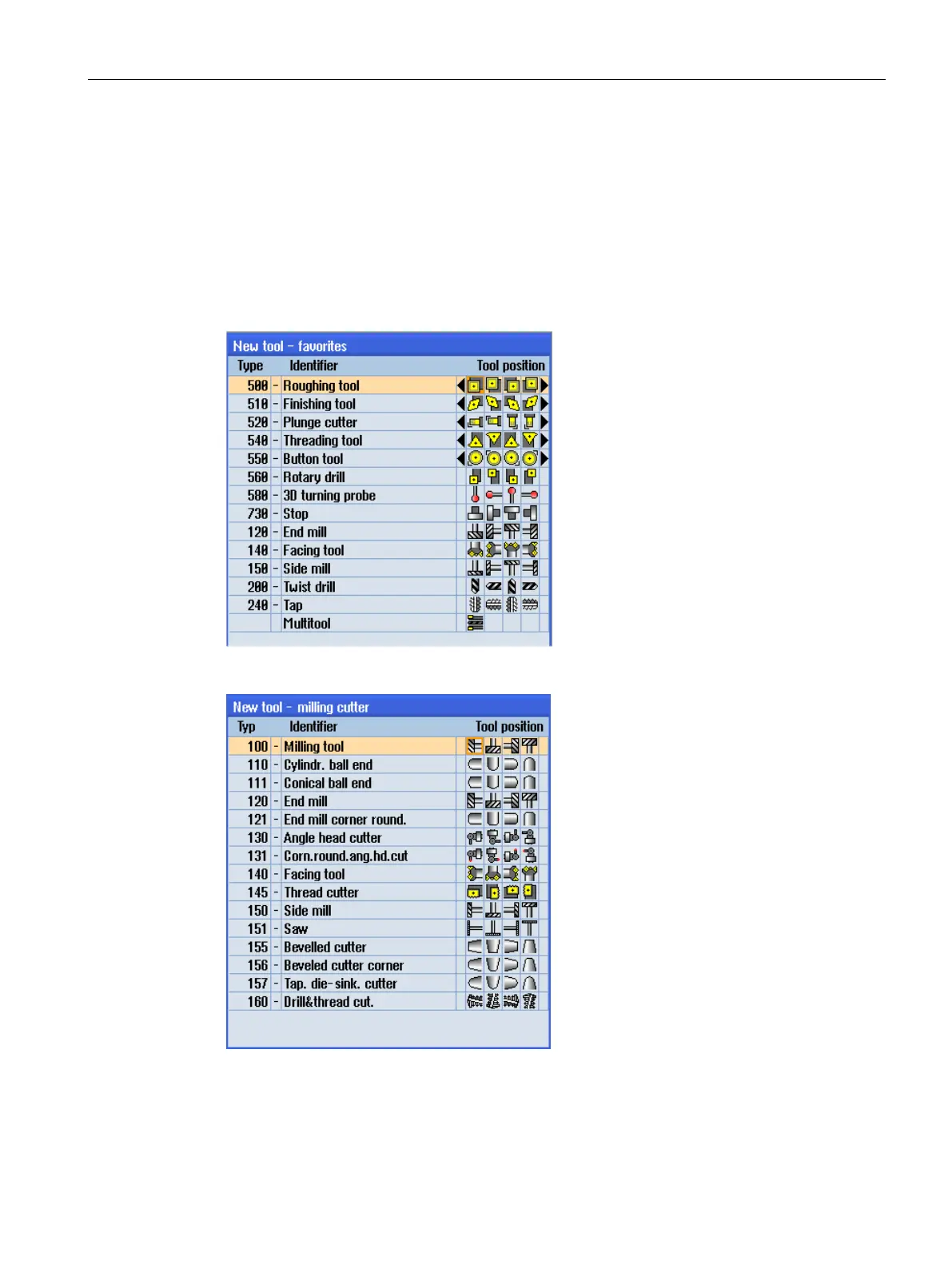

Figure 12-1 Example of Favorites list

Figure 12-2 Available tools in the "New Tool - Milling Cutter" window
