Siemens SINUMERIK 828D User Manual

Creating a G code program
7.2 Program views
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
217

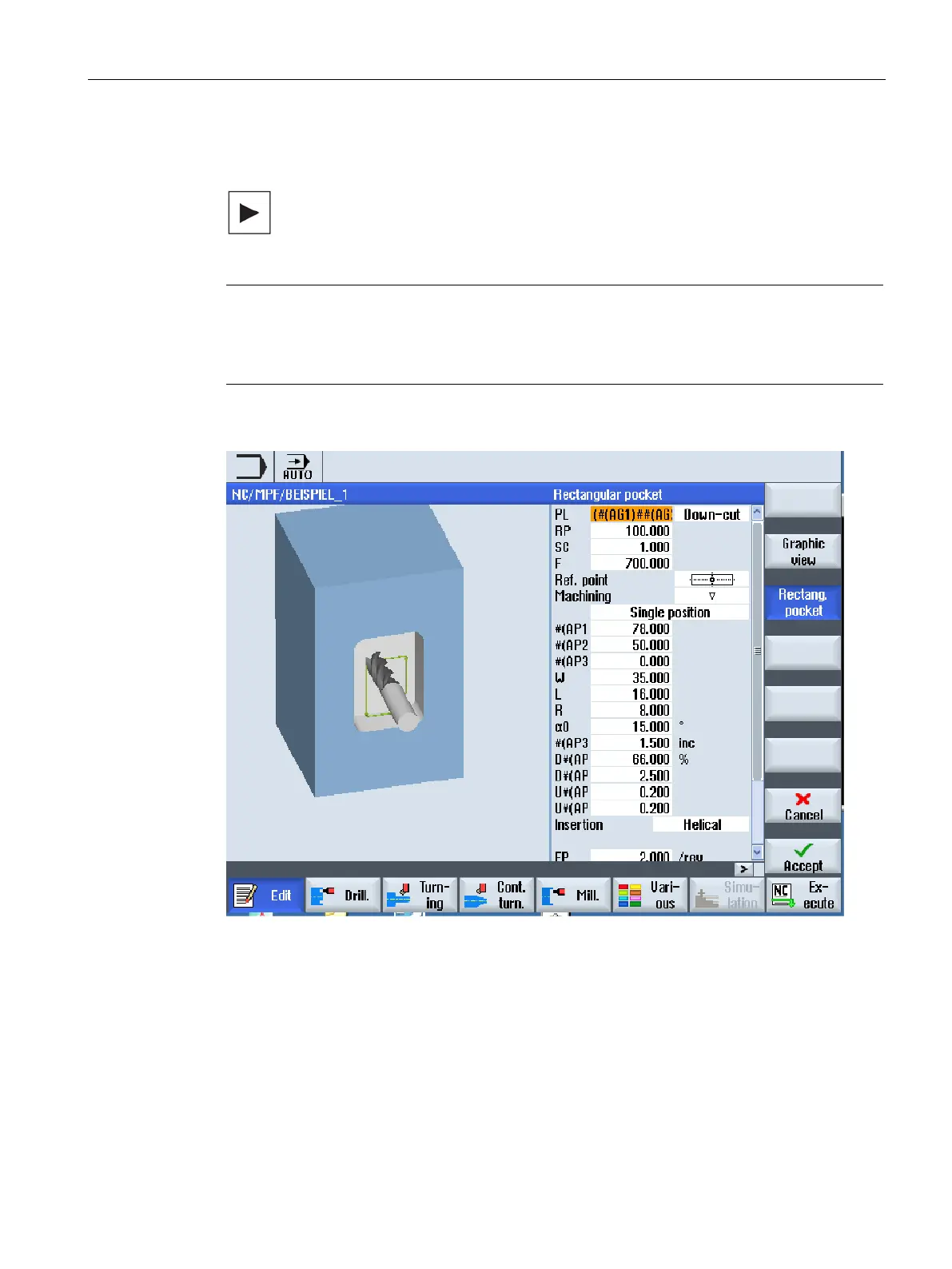

Parameter screen with help display
Press the <Cursor right> key to open a selected program block or cycle
in the program view.
The associated parameter screen with help display is then displayed.
Note
Switching between the help screen and the graphic view
The key combination
<CTRL> + <G> is also available for the switchover between the help
screen and the graphic view.
Figure 7-2 Parameter screen with help display
The animated help displays are always displayed with the correct orientation to the selected
coordinate system. The parameters are dynamically displayed in the graphic. The selected
parameter is displayed highlighted in the graphic.
The color symbols
Red arrow = tool traverses in rapid traverse
Green arrow = tool traverses with the machining feedrate
