Machining the workpiece

5.10 Editing a program

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

155

Procedure

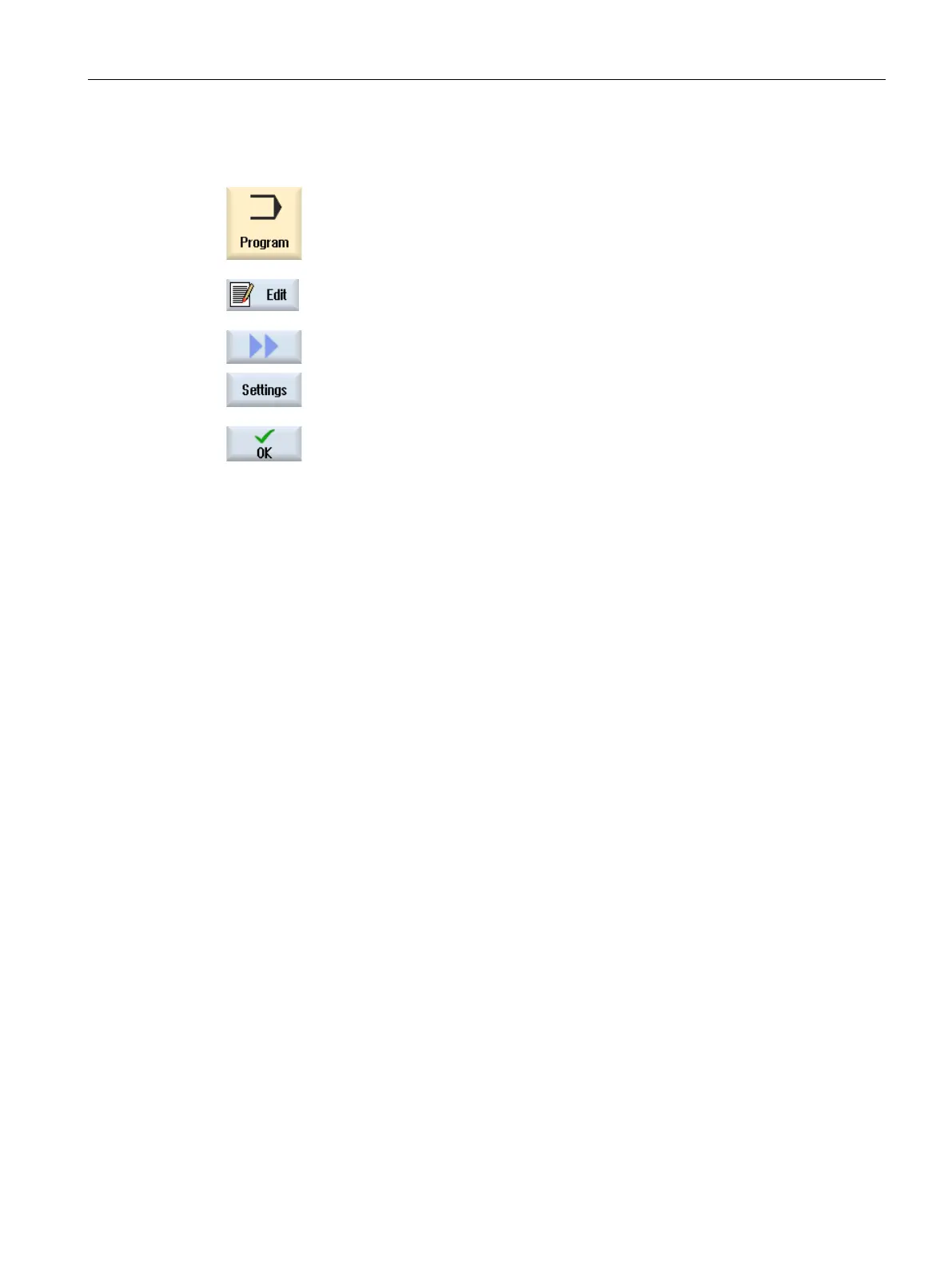

1.

Select the "Program" operating area.

Press the "Edit" softkey.

2.

Press the ">>" and "Settings" softkeys.

The "Settings" window opens.

3.

Make the desired changes here and press the "OK" softkey to co

nfirm

your settings.

See also

Replacing program text (Page 146)
