Creating a ShopTurn program
8.4 Fundamentals
Turning
244 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
Taking into account the tailstock

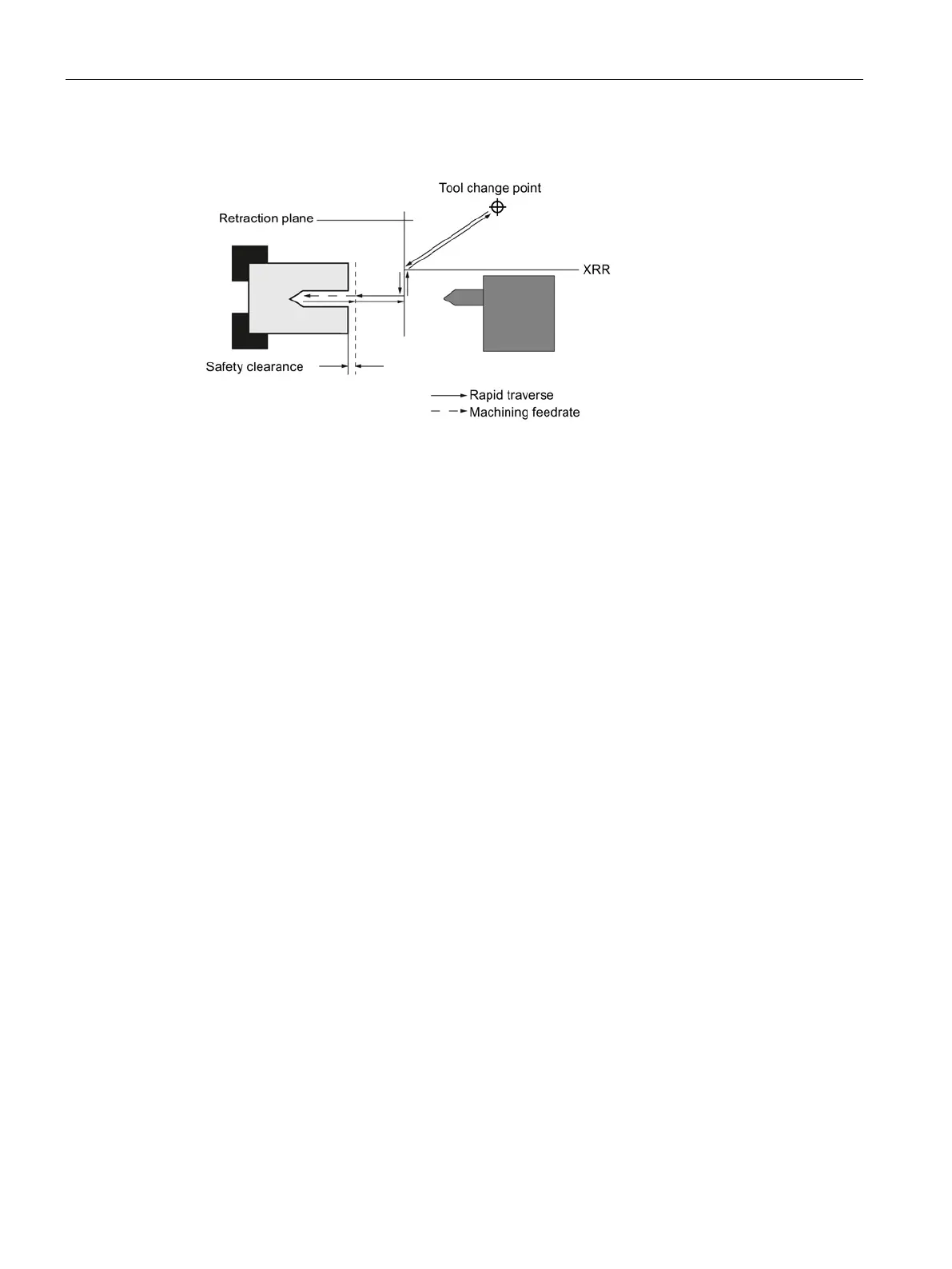

Figure 8-6 Approach/retraction taking into account the tailstock
● The tool traverses in rapid traverse from the tool change point along the shortest path to
the retraction plane XRR from the tailstock.
● After this, the tool traverses in rapid traverse on the retraction plane in the X direction.
● After this, the tool traverses in rapid traverse to the safety clearance.
● Following this, the workpiece is then machined with the programmed machining feedrate.
● After machining, the tool retracts with rapid traverse to the safety clearance.
● The tool then continues to traverse vertically in rapid traverse to the retraction plane.
● After this, the tool traverses in the X direction to the retraction plane XRR from the
tailstock.
● From there, the tool traverses in rapid traverse along the shortest path to the tool change
point. If the tool does not need to be changed between two machining processes, the tool
traverses from the retraction plane to the next machining cycle.
You define the tool change point, the retraction plane, the safety clearance, and the
retraction plane for the tailstock in the program header.
Programming the approach/retraction cycle (Page 270)
Program header (Page 250)
