Multi-channel machining

10.2 Multi-channel support

Turning

Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

657

Program view in the G code

Machining program in the leading channel

Machining program in the following channel

2-channel stock removal cycles, which contain implicit WAIT marks, are identified by a preceding clock symbol.

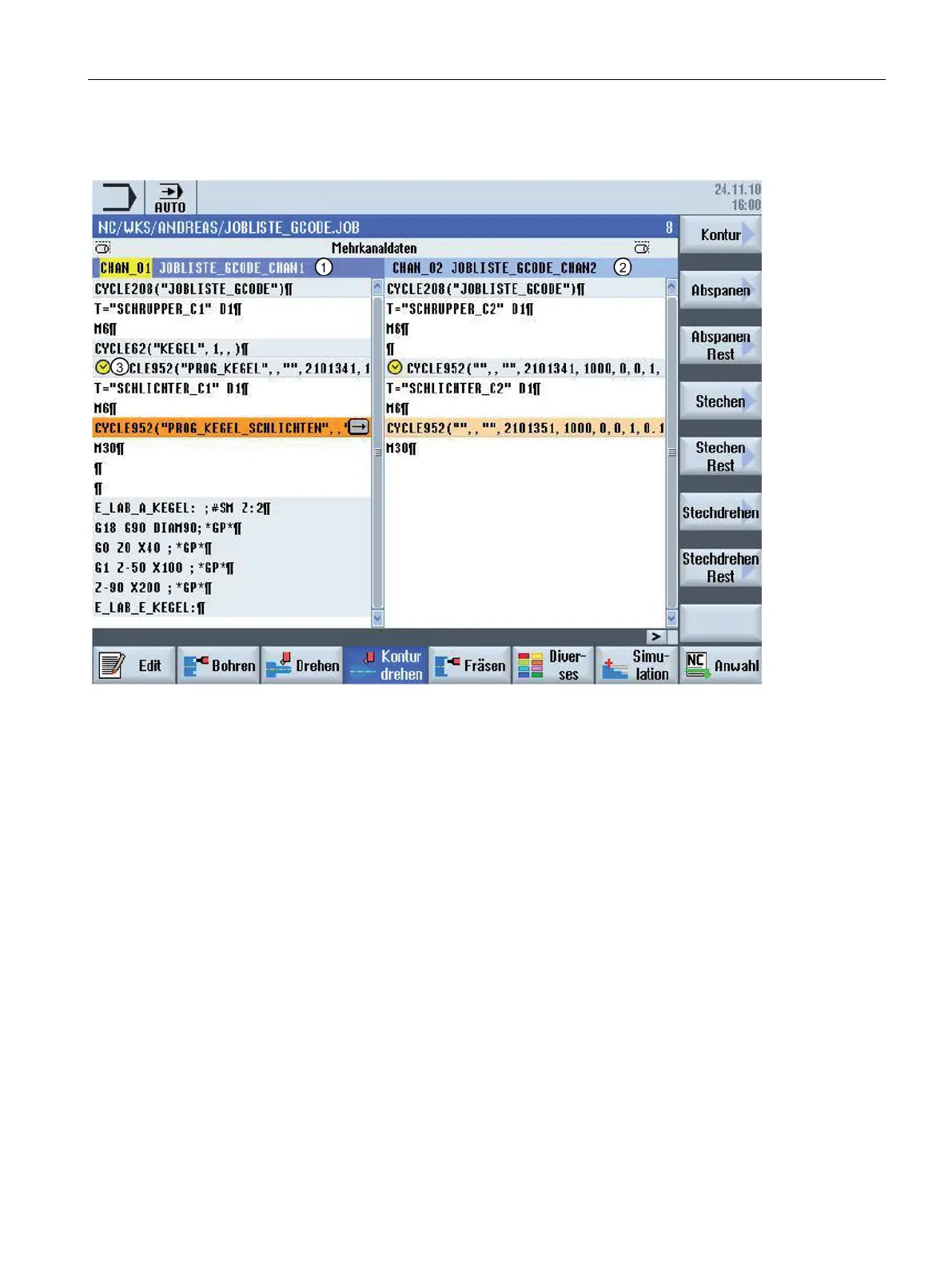

Figure 10-4 View of a 2-channel stock removal program in G code
