Tool management
12.15 Working with multitool
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
723
Position the cursor at the position where the tool is to be created.
For this, you can select an empty magazine location or
the NC
tool memory outside of the magazine.
You may also position the cursor on an existing tool in the area of
the NC tool memory. Data from the displayed tool will not be
overwritten.

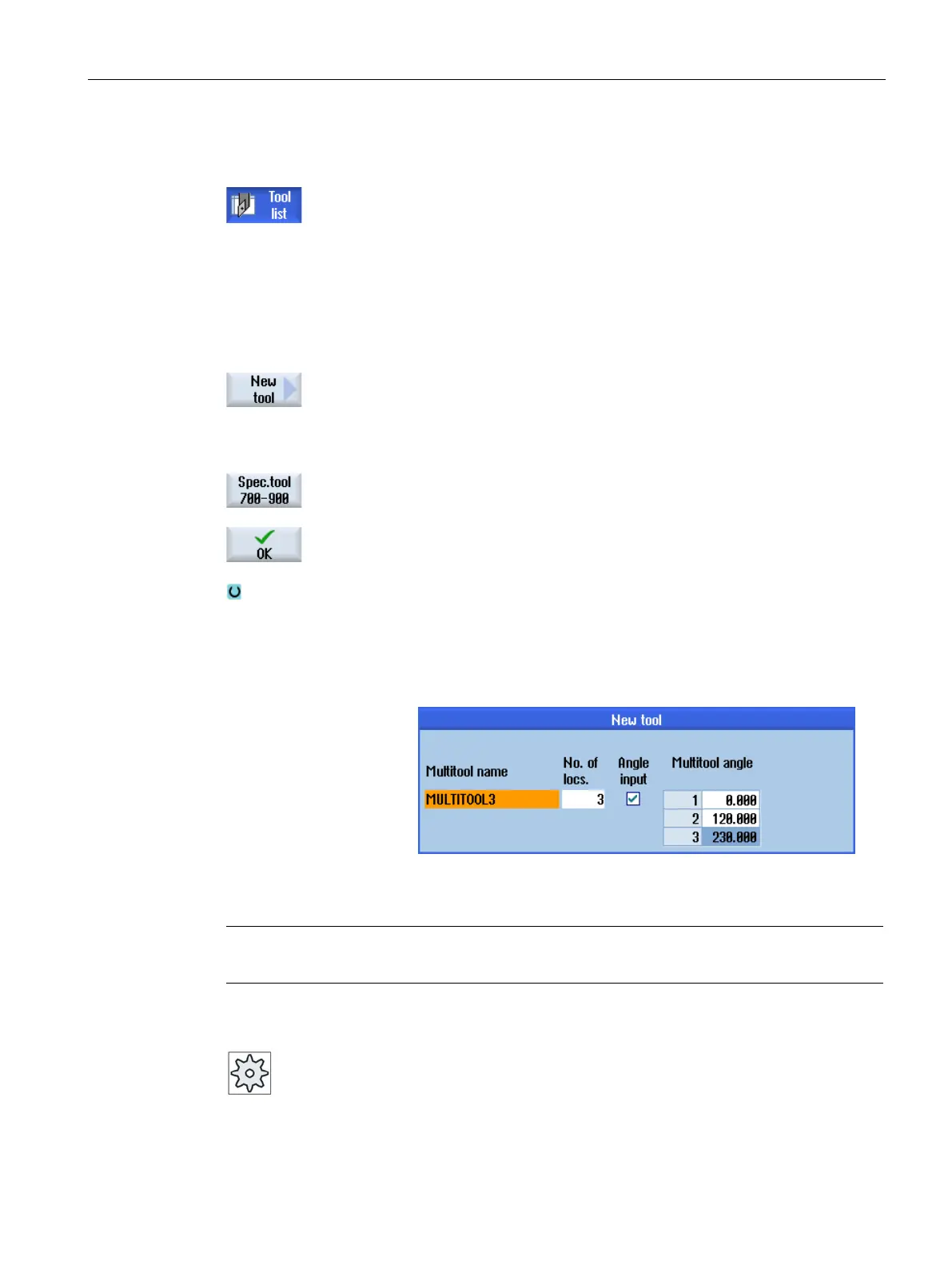

Press the "New tool" softkey.
The "New Tool - Favorites" window opens.
Press the softkey "Special tool 700
-900".
Select the multitool and press the "OK" softkey.
The "New Tool" window appears.
Enter the multitool name and define the number of multitool loc
a-
If you wish to define the clearance of the tools based on the a
n-
gle, activate the "Angle input" checkbox, and for each multitool
location, ent
er the clearance to the reference location as angular
The multitool is created in the tool list.
Note
The tool creation sequence can be defined differently.
Please refer to the machine manufacturer's specifications.
