Managing programs

13.18 RS-232-C

Turning

782 Operating Manual, 01/2015, 6FC5398-8CP40-5BA2

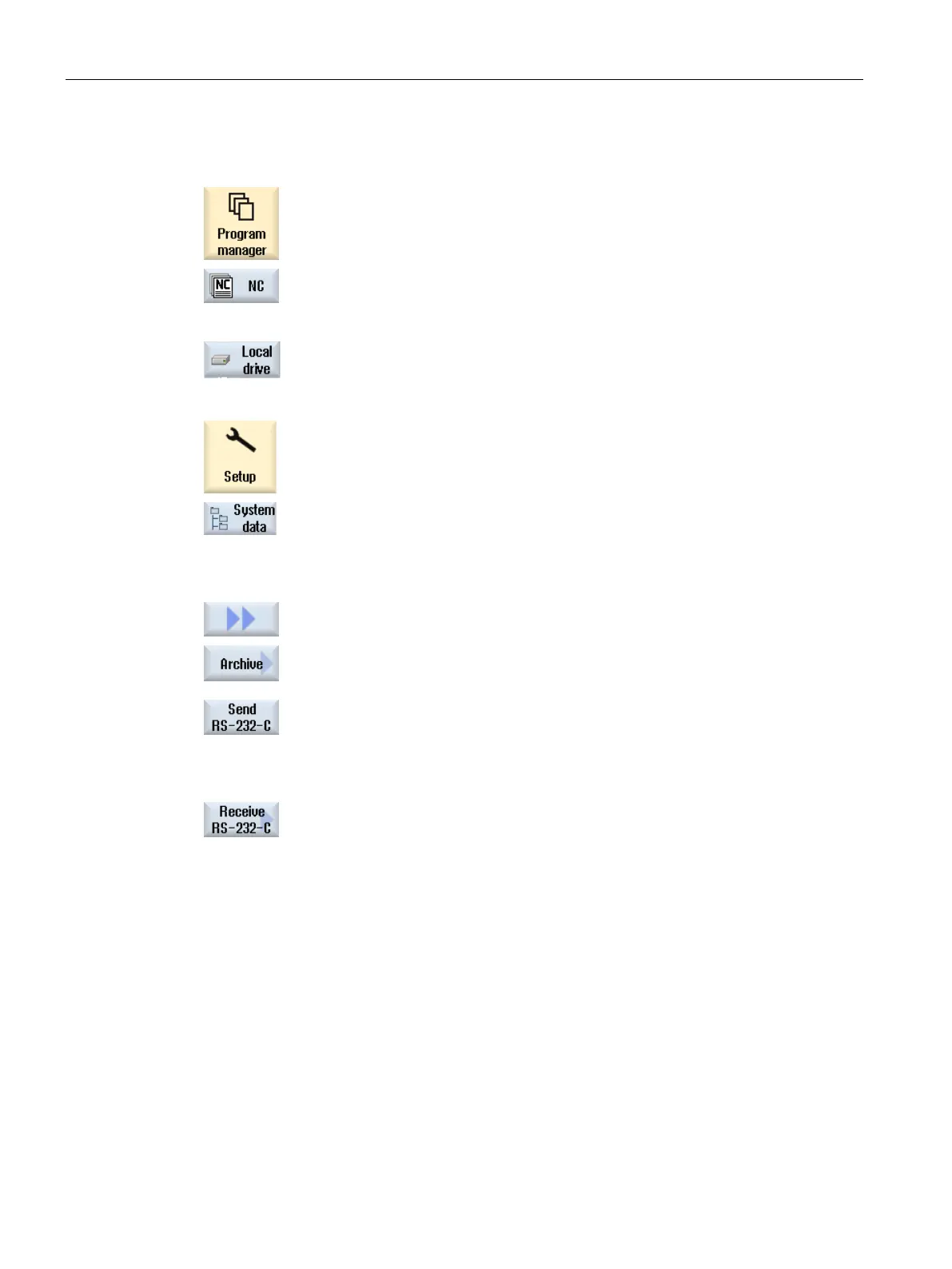

Procedure

...

Select the "Program manager" operating area, and pr

ess the

"NC" or "Local drive" softkey.

- OR -

Select the "Startup" operating area and press the "System data"

softkey.

Reading-out archives

Select the directories or the files that you wish to send via V24.

Press the ">>" and "Archive" softkeys.

Press the "V24 send" softkey.

- OR -

Reading in an archive

Press the "V24 receive" softkey if you wish to read

-in files via

V24.
