20.3 Measuring and saving the energy consumption
Turning
Operating Manual, 01/2015, 6FC5398-8CP40-5BA2
861

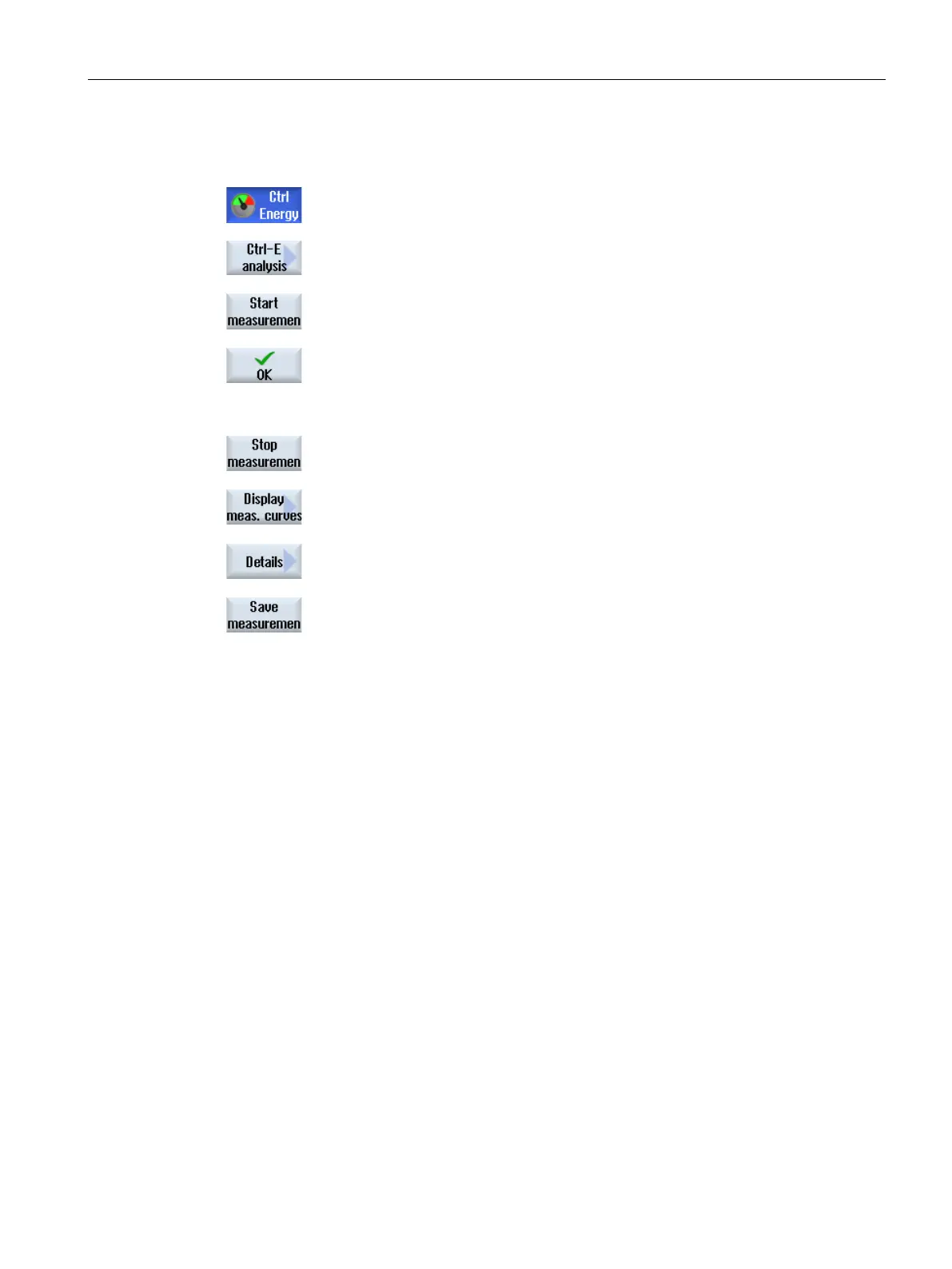

Procedure
1.
The "SINUMERIK Ctrl
-Energy" window is open.
2.
Press the "Ctrl
-E analysis" softkey.
The "Ctrl
-E Analysis" window opens.
3.
Press the "Start measurement" softkey.
The "Setting Measurement: Select Device" window opens.
4.
Select the desired device in the list, possibly activate the "Measure part
program" checkbox, enter the number of repetitions, possibly select the
desired channel, and press the "OK" softkey.
The trace is started.
5.
Press the "Stop measurement" softkey.
The measurement is terminated.
6.
Press the "Graphic" softkey, to track the measurement characteri
stic.
7.
If you want to track the consumption values, press the "Details" softkey.
8.
Press the "Save measurement" softkey to save the consumption values
of the actual measurement.
The selection of the axis to be measured depends on the configuration.
References
Information on the configuration is provided in the following reference:
System Manual "Ctrl-Energy", SINUMERIK 840D sl / 828D
