Overview
Name
Effect
Border
This applies a uniform
width border to the
edge of the key. You
can adjust the border
width and density. You
can also enable the
separate edge
function, and adjust
the top, bottom, left,
and right border
widths separately.
Drop
border
This applies a border
below and to the right
for example, of the
key. You can adjust the
border width, position,
and density.
Shadow
This applies a shadow
below and to the right
for example, of the
key. You can adjust the
shadow width,
position, and density.
Outline
This uses the outline
of the original key as
the key. You can adjust
the width and density
of the outline. You can
also enable the
separate edge
function, and adjust
the top, bottom, left,
and right outline
widths separately.
Emboss
This applies an
embossing effect to
the outline of the key.
You can adjust the
width and position of
the embossing and the
density. You can adjust
the density separately
for key fill and key
edge. When
embossing is on, the
Fine Key and zabton
functions go off.
–
Soft
edge
This softens the edge
of the key.
–
Zabton
This inserts a
translucent pattern
behind a key. You can
adjust the pattern size,
softness, density and
color.
–
Chapter
4
Keys

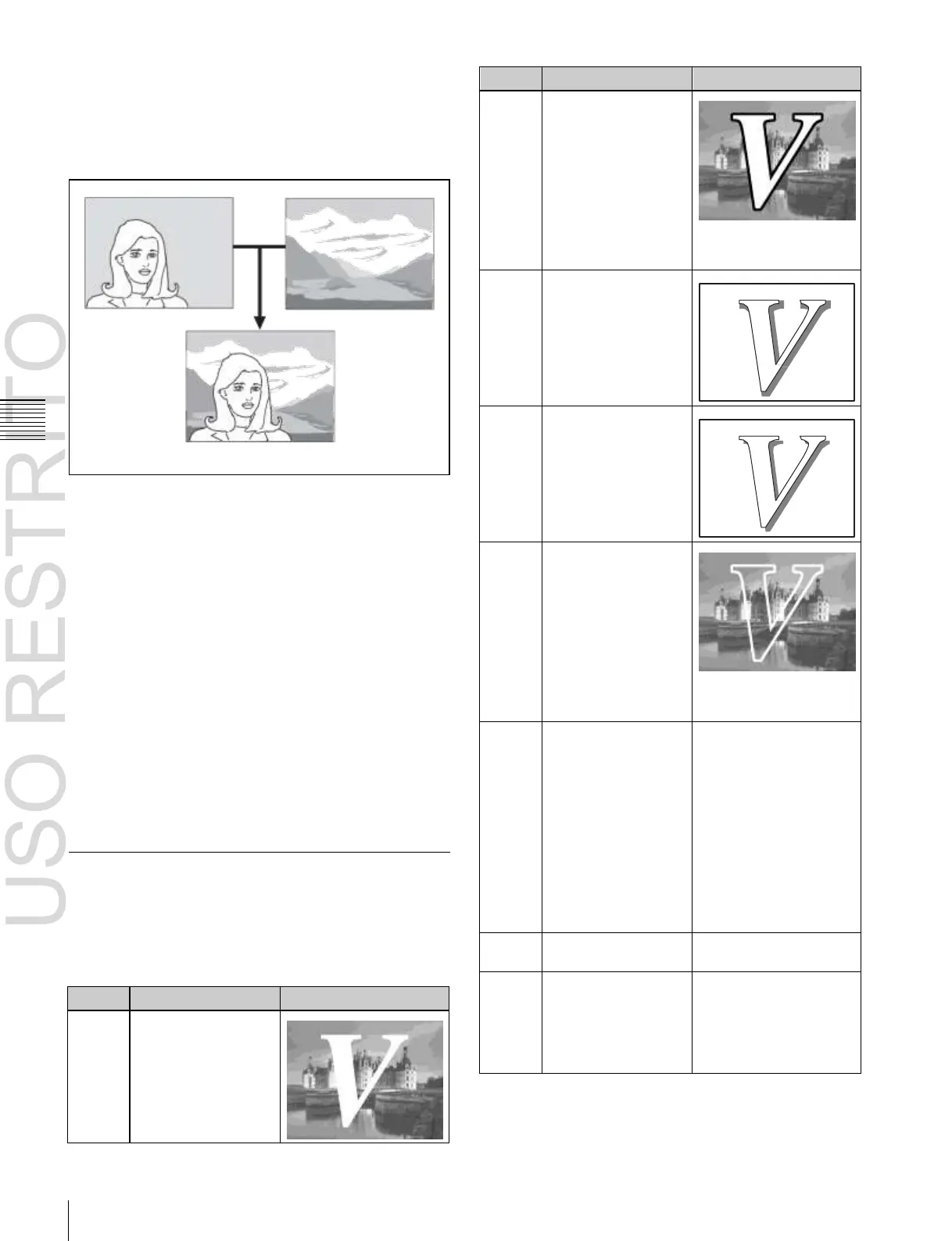

Chroma key
A key signal based on a particular color is used to cut out
the background, and the key fill is then inserted. The
inserted signal is also referred to as the foreground, and the
composite image is called a chroma key image.
Foreground
Background
Chroma key image
For details of chroma key, see (page 130) and (page 131).
Wipe pattern key
This uses the wipe pattern selected for a transition as the
key source.
Key wipe pattern key
This uses the wipe pattern selected for an independent key
transition as the key source.
Note on wipe pattern modifiers
In a wipe pattern key or key wipe pattern key, you can
apply various modifications, depending on the pattern
used, and the modifiers in common with a wipe.
However, modifiers which relate to the wipe direction and
edge are not reflected.
Key Modifiers
Edge modifiers
You can apply borders and other effects to the edge of the
key (see pages 134 and 144).
Name
Effect
Normal
This is the state with
no key edge modifiers
applied.
