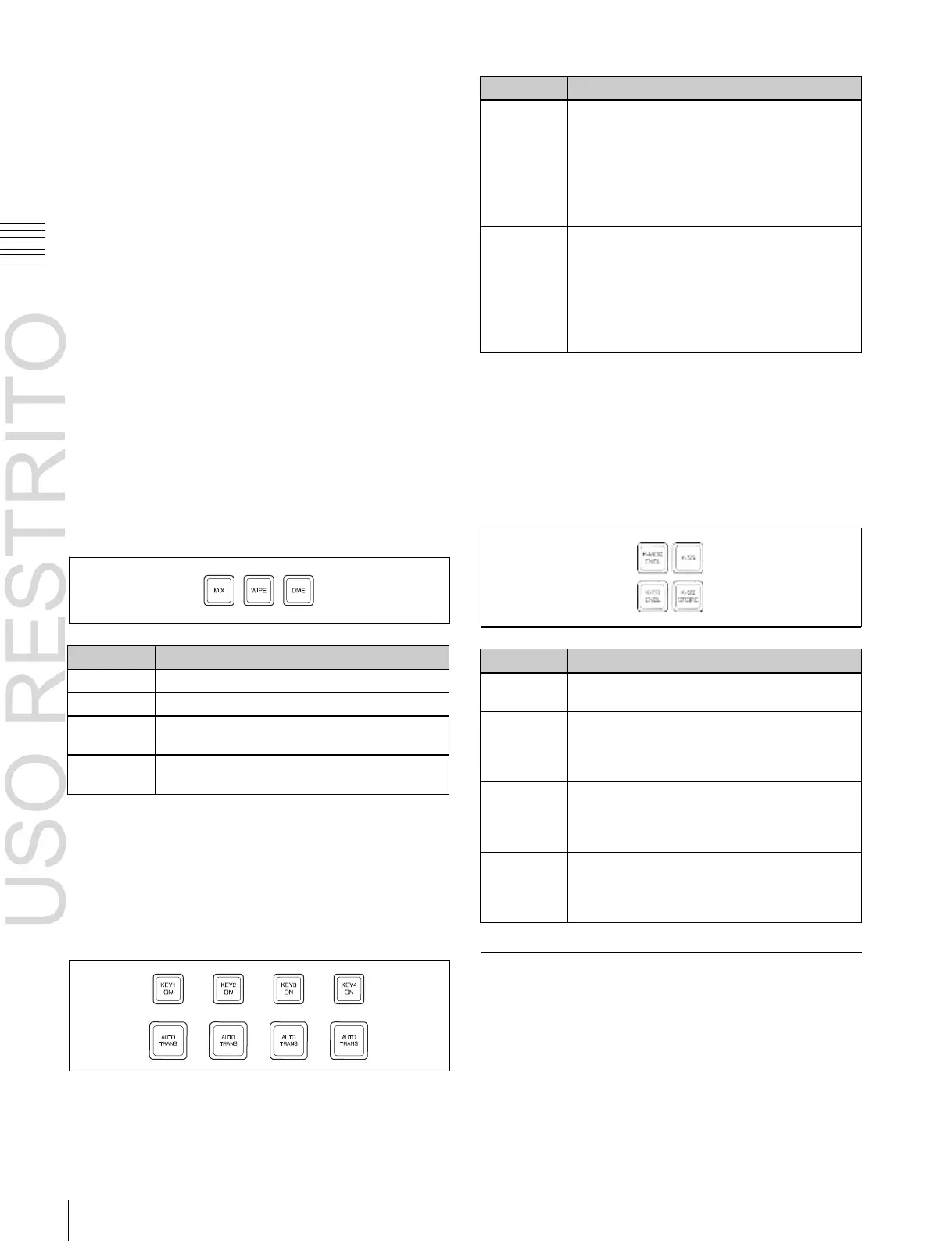

Names and Functions of Parts of the Control Panel
Chapter
2
Menus
and
Control
Panel
j
Key delegation buttons
These buttons delegate this independent key transition
control block to a desired keyer. Press one of the [KEY1]
to [KEY8] buttons (or the [DSK1] to [DSK8] buttons in
the PGM/PST bank), turning it on.
You can press more than one button to select two or more
keyers.
While these buttons are held down, you can select a key
source with the cross-point buttons for the key bus.
Pressing one of these buttons twice in rapid succession
changes its state so that you can make cross-point
selections on the corresponding key bus.
For details of assignment of keys 5 to 8, see “Assigning
Buttons for Selection of Keys 5 to 8 in the Setup Menu”
(page 397) in Appendix.
k
Independent key transition type selection buttons
Press one of the following buttons, turning it on, to select
the independent key transition type.
You can assign any transition types to these buttons in
setup
For details, see “Setting Transition Control Block Button
Assignments” in Chapter 19 (Volume2).
Inserted or deleted with a wipe.
Inserted or deleted with a DME wipe.
Instantaneously insert or remove the key
selected with the delegation buttons.
l
Independent key transition execution section
The following buttons are used to insert or delete a key,
and carry out an auto transition.
For details of assignment of keys 5 to 8, see “Assigning
Buttons for Selection of Keys 5 to 8 in the Setup Menu”
(page 397) in Appendix.
KEY1 ON to
KEY8 ON
(DSK1 ON
to DSK8 ON
in the PGM/
PST bank)
• Press the corresponding one of these
buttons to cut key 1 to key 4 in or out
instantaneously.
• When the key corresponding to the button
appears in the final program output, the
button lights red, and otherwise lights
amber.
• These correspond to keys 1 to 4 from left to
right; press one to carry out an auto
transition.
• The transition rate for an independent key
transition can be set in the numeric keypad
control block, in the Flexi Pad control block,
or in a menu.
m
Key source name display/key snapshot
buttons
These display the source name selected on the
corresponding keyer. In key snapshot mode, press these
buttons, corresponding to registers 1 to 8 for the selected
keyer, to save or recall a key snapshot.
n
Key snapshot setting buttons
The following buttons are used to operate a key snapshot.
This enables key snapshot mode.
K-SS
STORE (key
snapshot
store)
To save a key snapshot, hold down this
button, and press the key source name
display/key snapshot button corresponding to
the register you want to save.
K-MOD
ENBL (key
modifier
enable)
To recall key adjustment values and key
modifier settings when recalling a key
snapshot, press this button, turning it on.
K-TR ENBL
(key
transition
enable)
To recall independent key transition settings
when recalling a key snapshot, press this
button, turning it on.
Flexi Pad Control Block (Standard
Type)
The Flexi Pad control block is used for saving and
recalling wipe snapshots, DME wipe snapshots, and
snapshots, for recalling effects, and shotbox content, and
for entering the transition rate.
