Snapshot Operations in the Flexi Pad Control Block 477

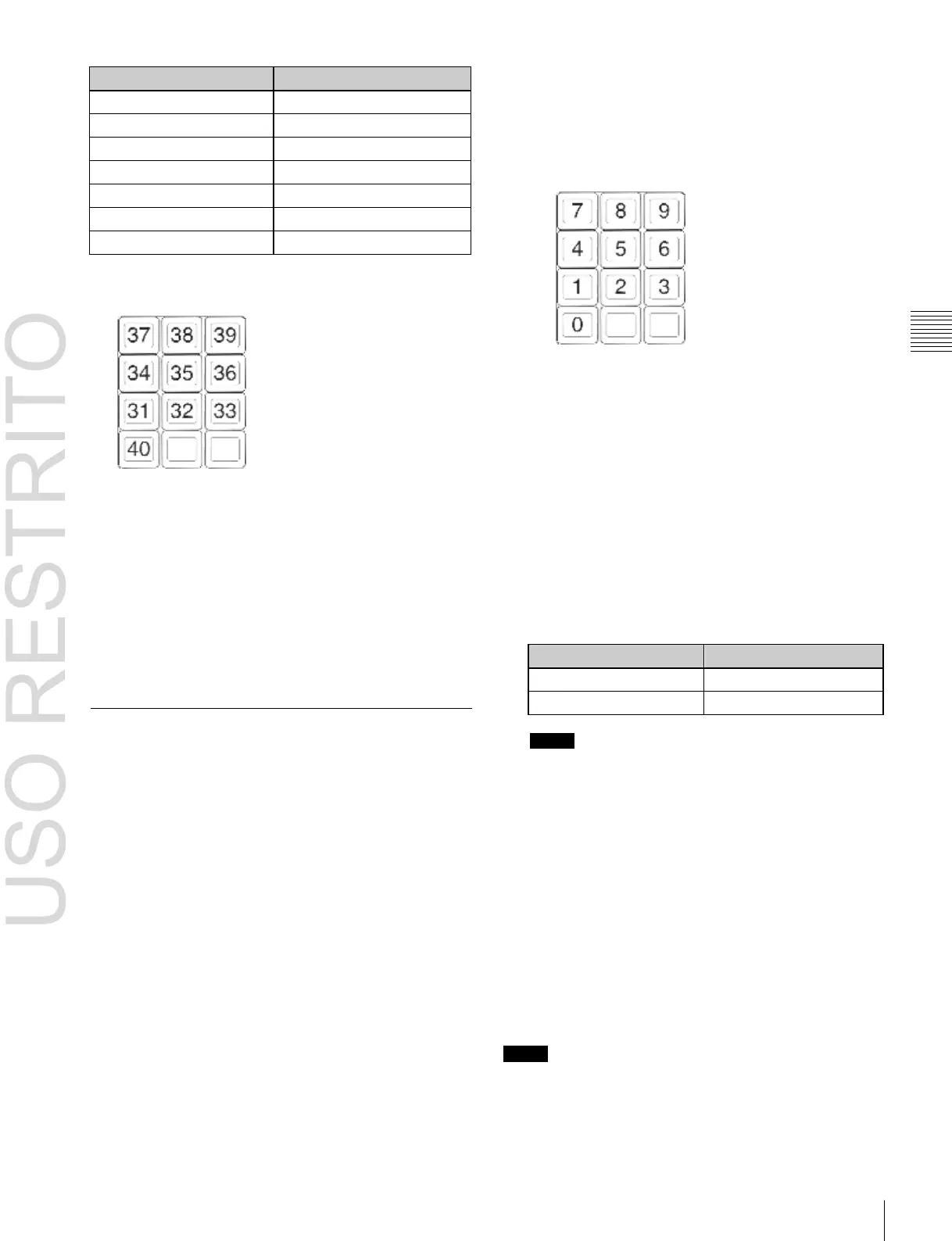

Example: When you select bank 3, the register numbers
allocated to the memory recall section are as follows.
Operations with a simple type Flexi Pad
control block
With a simple type Flexi Pad control block, the registers
that can be handled are numbers 1 to 8. Bank operations
are therefore not possible. It is also not possible to apply
attributes, or to cancel a snapshot save or recall operation
once carried out.
To use registers 9 to 99, or to cancel a snapshot save
operation, use the numeric keypad control block.
To select bank 0: Press the [BANK0] button.
To select bank 1: Press the [BANK1] button.
To select any bank from 0 to 9: Press the [BANK
SEL] button, changing the memory recall section
display as in the following figure; select a number
from 0 to 9.
The selected bank number appears in the numeric
display.
The buttons in the memory recall section change to
show the names of the registers in the selected bank,
together with the register status.
Using the Setup menu, it is possible to specify which
to display, the register name or register number.
Lit orange: register containing a snapshot
Lit yellow: last recalled register
Not lit: register not containing anything
4 To apply an attribute (see page 472), hold down the
[SNAPSHOT] button, and in the memory recall
section, press a button as follows, turning it on.
Saving and Recalling Snapshots
Saving a snapshot in the Multifunction
Flexi Pad control block
As an example, to save a snapshot on the M/E-1 bank, use
the following procedure.
1
In the M/E-1 bank, make the settings for the state you
want to save as a snapshot.
2
In the M/E-1 bank Flexi Pad control block, press the
[SNAPSHOT] button.
This assigns the Flexi Pad control block to snapshot
operations. The numeric display shows the last
selected bank number and the register number last
recalled on the bank.
3
Use any of the following methods to select the bank for
saving the snapshot.
On a simple type Flexi Pad control block, there are no
banks, and this operation is not necessary.
Notes
In the Flexi Pad control block, it is not possible to
apply the cross-point hold or GPI output attributes. In
a simple type Flexi Pad control block, it is not possible
to apply any attributes. To add these attributes, use a
menu operation (see page 482).
5 Still holding down the [SNAPSHOT] button from step
4, press the memory recall button corresponding to the
register in which you want to save.
Recalling a snapshot in the Flexi Pad
control block (standard type or simple
type)
Notes
When an M/E bank is not assigned to any region selection
button in the numeric keypad control block in a setup
setting, it is not possible to recall a snapshot with the Flexi
Pad control block of that M/E bank.
