Register allocation to memory recall buttons
Chapter
15
Utility/Shotbox
•
The numeric display shows the selected bank
number.
•
The buttons in the memory recall section show the
names and states of the registers corresponding to
the selected bank.
-
Off: register in which nothing is saved
-
Lit orange: register holding shotbox settings
-
Lit yellow: last executed register
3 Press the button in the memory recall section
corresponding to the register you want to run.
•
The selected shotbox register is executed.
•
The pressed button lights yellow.
•
The numeric display shows the bank number
followed by the selected register number.
•
If the selected shotbox register has auto run set, on
recall the effect is immediately executed.
When auto run is not set for the recalled register
Simply recalling the register does not run the effect. To
do this, press the [RUN] button.
Shotbox Execution in the Utility/
Shotbox Control Block
Bank selection buttons
•
The pressed bank selection button lights amber.
•
The memory recall buttons show the names and
states of the registers corresponding to the selected
bank.
-
Off: register in which nothing is saved
-
Lit orange: register holding shotbox settings
-
Lit yellow: last recalled register
2 Press the memory recall button to which the shotbox
register you want to run is allocated.
•
The shotbox execution is carried out.
•
The pressed button lights yellow.
•
The numeric keypad control block [SHOTBOX]
button lights, and the region selection button
corresponding to the region for which the effect is
set also lights.
•
If the selected shotbox register has auto run set, on
recall the effect is immediately executed.
When auto run is not set for the recalled register
Simply recalling the register does not run the effect. To
do this, press the [RUN] button in the keyframe
control block.
Executing a Shotbox Function With
the Key 2 Row Cross-Point Buttons
You can use the key 2 row of each of the M/E-1 to M/E-5,
and PGM/PST banks in the same way as the buttons in the
utility/shotbox control block.
Notes
To use this function, it is first necessary to assign the utility
shotbox mode switching function to the control panel
[PRE MCRO] button.
For details of the assignment operation, see “Assigning
the Utility/Shotbox Mode Switching Function” (page 573).

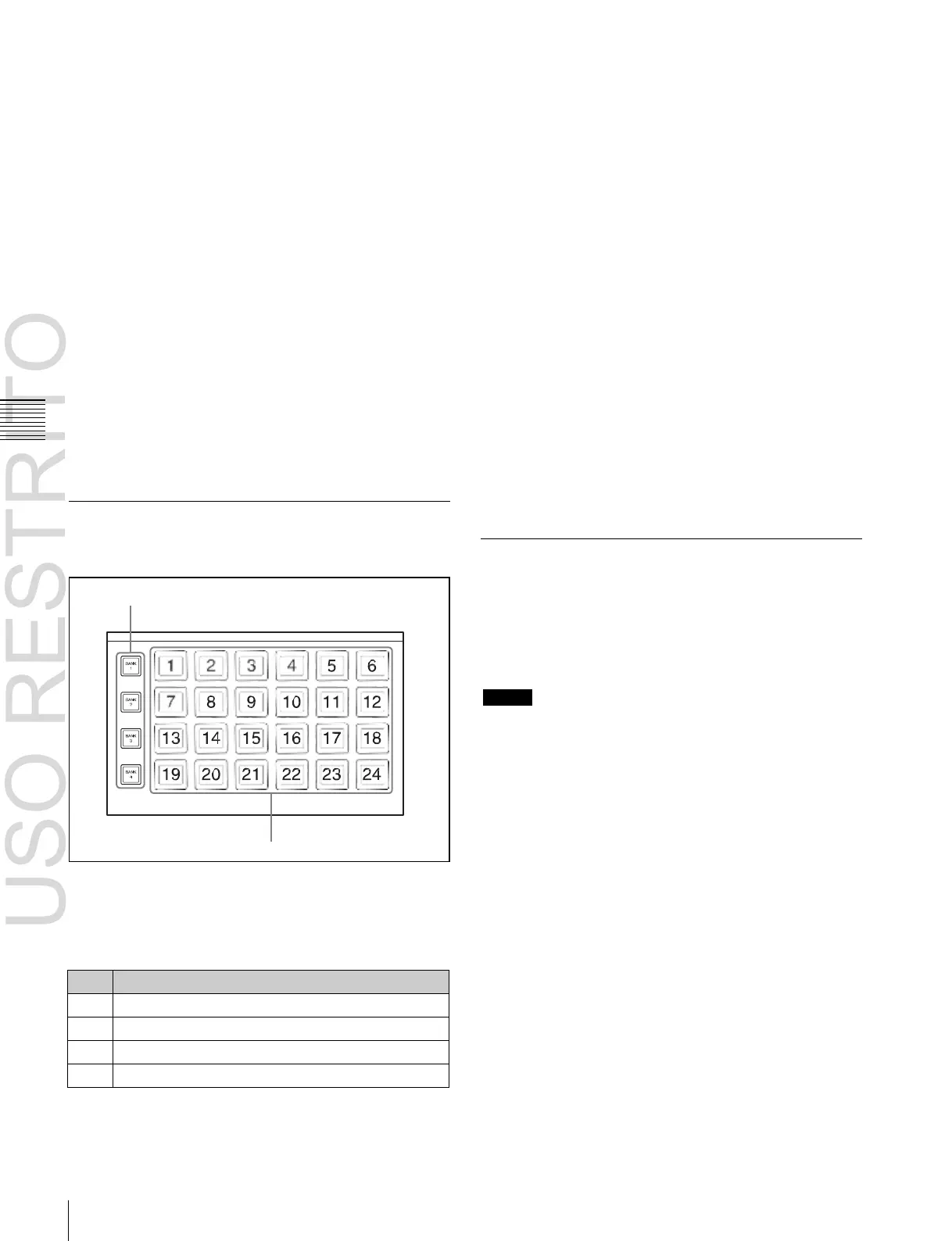

Memory recall buttons
Utility/shotbox control block
In the utility/shotbox control block, as the default setting
the memory recall buttons have registers 1 to 96 allocated
to banks 1 to 4.
1 Press one of the bank selection buttons [BANK1] to
[BANK4] to select the bank.
You can assign any shotbox register to the cross-point
buttons.
For details of the assignment operation, see “Assigning a
Function to the Key 2 Row Cross-Point Buttons” (page
597).
1
Press the [PRE MCRO] button, turning it on.
2
Press one of the bank switching buttons (see the figure
on page 488), to select the bank.
3
Press the cross-point button to which the desired
shotbox is assigned.
