Key snapshot operation on the
Multifunction Flexi Pad control block
By default, the [KEY SS] key snapshot mode selection
button does not appear in the Multifunction Flexi Pad
control block. To carry out key snapshot saving and recall
in this control block, it is first necessary in the Engineering
Setup >Panel >Config >Link/Program Button >Multi
Function >Mode Sel Assign menu to assign the Key
Snapshot mode to a mode selection button.
To save a key snapshot
For example, to save a key snapshot for key 1 of M/E-1,
select M/E-1 and key1, then use the following procedure.
1 Press the [K SS] button.

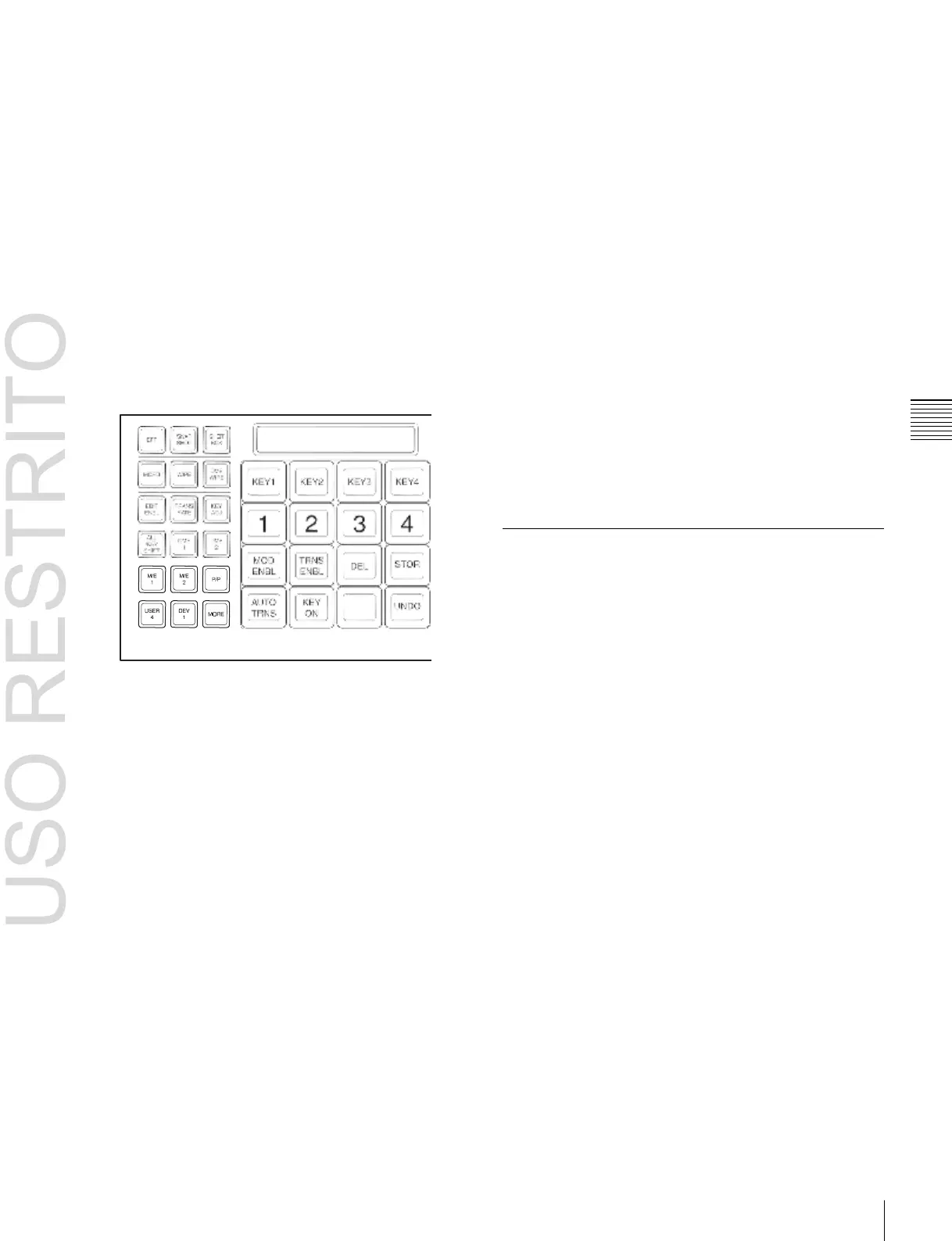

The button displays in the memory recall section
change as shown in the following illustration.
The [1] button lights yellow, and the key snapshot is
recalled.
To cancel the recall operation, press the [UNDO]
button.
To delete a key snapshot
For example, to delete a key snapshot for M/E-1 key 1
saved in register 1, with the M/E-1 and key 1 region
selected, proceed as follows.
1
Press the [KEY SS] button.
2
Holding down the [DEL] button, press the button [1]
for the register in which is saved the key snapshot you
want to delete.
To carry out an auto transition execution during
key snapshot operation
Press the [AUTO TRNS] button.
Instant key insertion/removal
Press the [KEY ON] button.
To remove the key, while the key is inserted press the
[KEY ON] button.
Key Snapshot Operations Using a
Simple Transition Module
2 In the memory recall section, hold down the [STOR]
button, and press the button (any of [1] to [4]) for the
register in which you want to save the key snapshot.
To recall a key snapshot
For example, to recall a key snapshot for M/E-1 key 1
saved in register 1, with the M/E-1 region and key 1
selected, proceed as follows.
1
Press the [KEY SS] button.
2
According to the information you want to recall, set
the following buttons On/Off.
[MOD ENBL] button: Recall the key adjustment
values and key modifier settings.
[TRNS ENBL] button: Recall independent key
transition settings.
If both are Off, then key memory is enabled, and
just the saved key fill and key source signal
selections are recalled.
3
Press button [1] for the register you want to recall.
When using a simple transition module, the key snapshots
hold the settings for key 3 and key 4. However, each key
control block can be assigned to any key in setup.
For details, see “Assigning a Function to the Independent
Key Transition Control Block (Simple Type)” in Chapter
19 (Volume 2).
You can carry out key snapshot operations in the
independent key transition control block (simple type) and
Flexi Pad control block (simple type).
There are four dedicated key snapshot registers for each of
keys 3 and 4.
