Names and Functions of Parts of the Control Panel
Press to save or recall an effect.
Press to save or recall a snapshot.
Press to save or recall a shotbox.
Press to save, recall or edit a macro.
TRANS
RATE
(transition
rate)
• Press to set the transition rate.
• Hold down this button, and press one of the
key delegation buttons [KEY1] to [KEY8] in
the transition control block to set an
independent key transition rate.
Press this, turning it on, to save region
information in a master snapshot register or
master timeline register, or to recall such
region information.
Chapter
2
Menus
and
Control
Panel
i
STOP NEXT KF (stop next keyframe) button
When this button is pressed, turning it on, the effect
execution range is from the current time to the next
keyframe.
j
EFF LOOP (effect loop) button
When the effect reaches the last keyframe with this button
on, it returns to the first keyframe and repeats.
k
AUTO INS (auto insert) button
When editing a macro, press this button, turning it on, to
enable the auto insert function, so that every control panel
operation you carry out is added to the macro as an event.

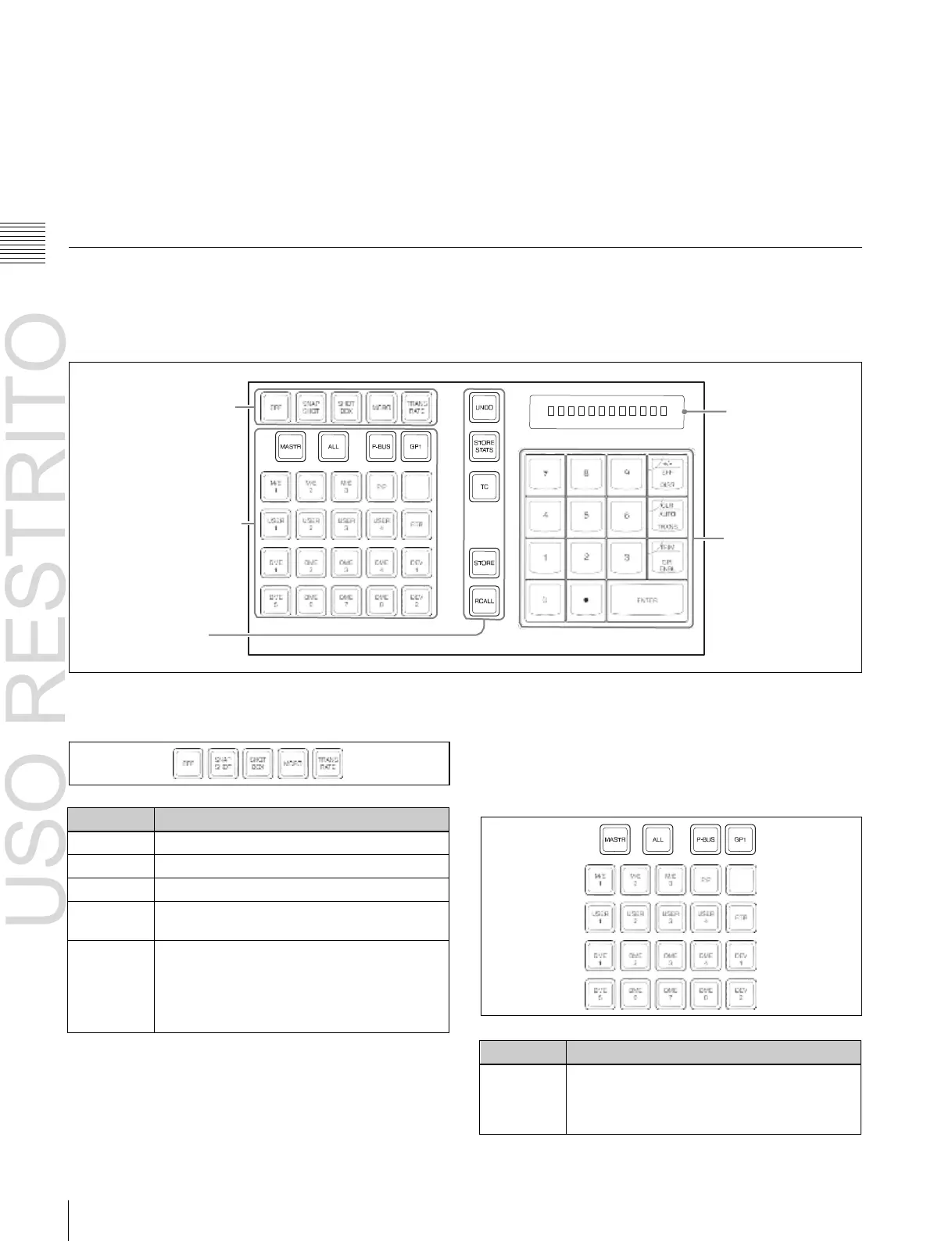

Numeric Keypad Control Block
The numeric keypad control block is used for region
selection, for saving and recalling snapshots, effects and
shotboxes, for entering numeric values for trackball
operation and keyframe operation, and for transition rate
entry.
1
Mode selection buttons
5
Display
2
Region selection buttons
4
Numeric keypad
3
Function selection
buttons
a
Mode selection buttons
Pressing the following buttons changes the mode.
b
Region selection buttons
These select the functional block (“region”) of the control
panel to which operations apply.
You can select more than one region at the same time.
The first button you press is taken as the reference region,
and lights green, while the next pressed button lights
amber.
With the exception of the [MASTR] and [ALL] buttons,
you can change the region assignment to the buttons as
desired in the Setup menu.
