Utility/Shotbox
Not lighted: buttons with nothing saved
Lit orange: buttons saving a utility command or
menu shortcut
2 Press the memory recall button for which the action
you want to execute has been registered.
•
In the case of a function on/off action, the button you
pressed lights green, and this enables the function.
To disable the function, press the button once more.
•
For other actions, the button you pressed
momentarily lights green, and then the function is
executed.
1
Press the [PRE MCRO] button, turning it on.
2
Press one of the bank switching buttons (see previous
figure), to select the bank.
These buttons correspond to banks 1 to 5 in sequence
from the left.
3
Press the cross-point button to which the desired
action is assigned.
Executing Utilities With the Cross-
Point Buttons in the Key 2 Row
You can use the key 2 row of each of the M/E-1 to M/E-5,
and PGM/PST banks in the same way as the buttons in the
utility/shotbox control block.
Notes
To use this function, it is first necessary to assign the
utility/shotbox mode switching function to the control
panel [PRE MCRO] button.
For details of the assignment operation, see “Assigning
the Utility/Shotbox Mode Switching Function” (page 573).

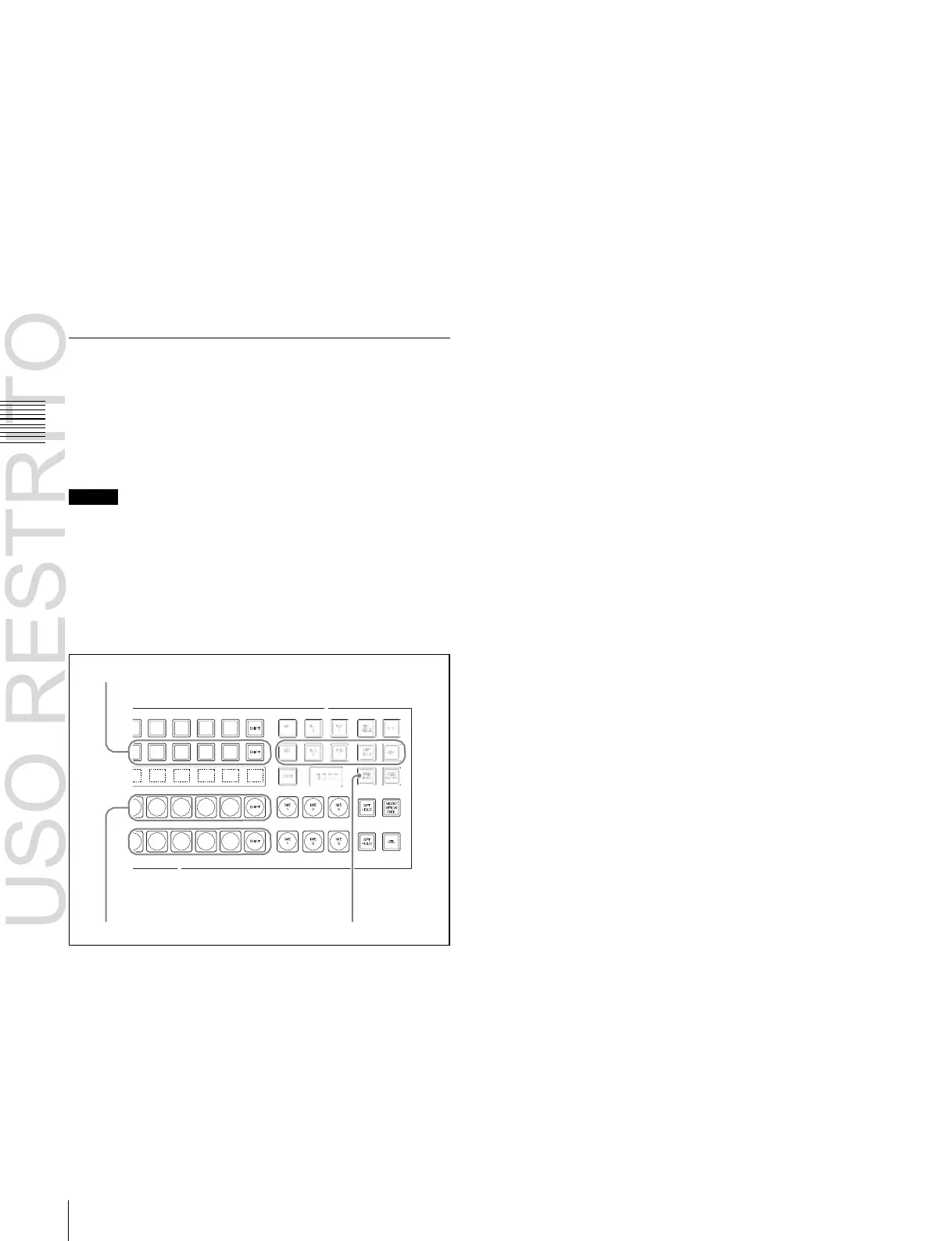

Key 2 row
Bank switching buttons
Background B row
Background A row
PRE MCRO button
Cross-point control block in the PGM/PST block
You can assign any action to the cross-point buttons (see
page 597).
To execute the assigned action
When the action is executing a shotbox register, follow the
procedure “Executing a Shotbox Function With the Key 2
Row Cross-Point Buttons” (page 494).
