Sony MVS-8000X SystemMVS-7000X System - AUX Menu Operations; AUX Bus Settings; Status Menu

USO RESTRITO
236
AUX Menu Operations / Status Menu
Knob
Parameter
Adjustment
Setting values
1
AUX Bus
AUX bus
selection
1 to 48
a)
Knob
Parameter
Adjustment
Setting values
1
Video
Gain
Video signal
gain
–200.00 to
+200.00
2
Y Gain
Luminance
signal gain
–200.00 to
+200.00
3
C Gain
Chrominance
signal gain
–200.00 to
+200.00
4
Hue Delay
Hue delay
–180.00 to
+180.00
5
Black
Level
Black level
–7.31 to
+109.59
Chapter
8
Color
Backgrounds,
Copy
and
Swap,
and
Other
Settings
AUX Menu Operations
AUX Bus Settings
Making video process settings for an AUX
bus
1 In the Aux >Aux Bus menu, using any of the following
methods, select the AUX bus to which the settings
apply.
• Directly press the list in the status area.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knob to make the setting.
a) When AUX mix transitions are enabled, even-numbered buses
cannot be selected as the target.
2 Press [Video Process], turning it on.
3 Adjust the following parameters.
Status Menu
The Status menu shows the following information.
• Operating status of the DME
Viewing the DME operating status
To view the DME operating status, press the top menu
selection button [STATS] in the menu control block.
This selects VF1 ‘DME Status’ and the Status menu
appears.

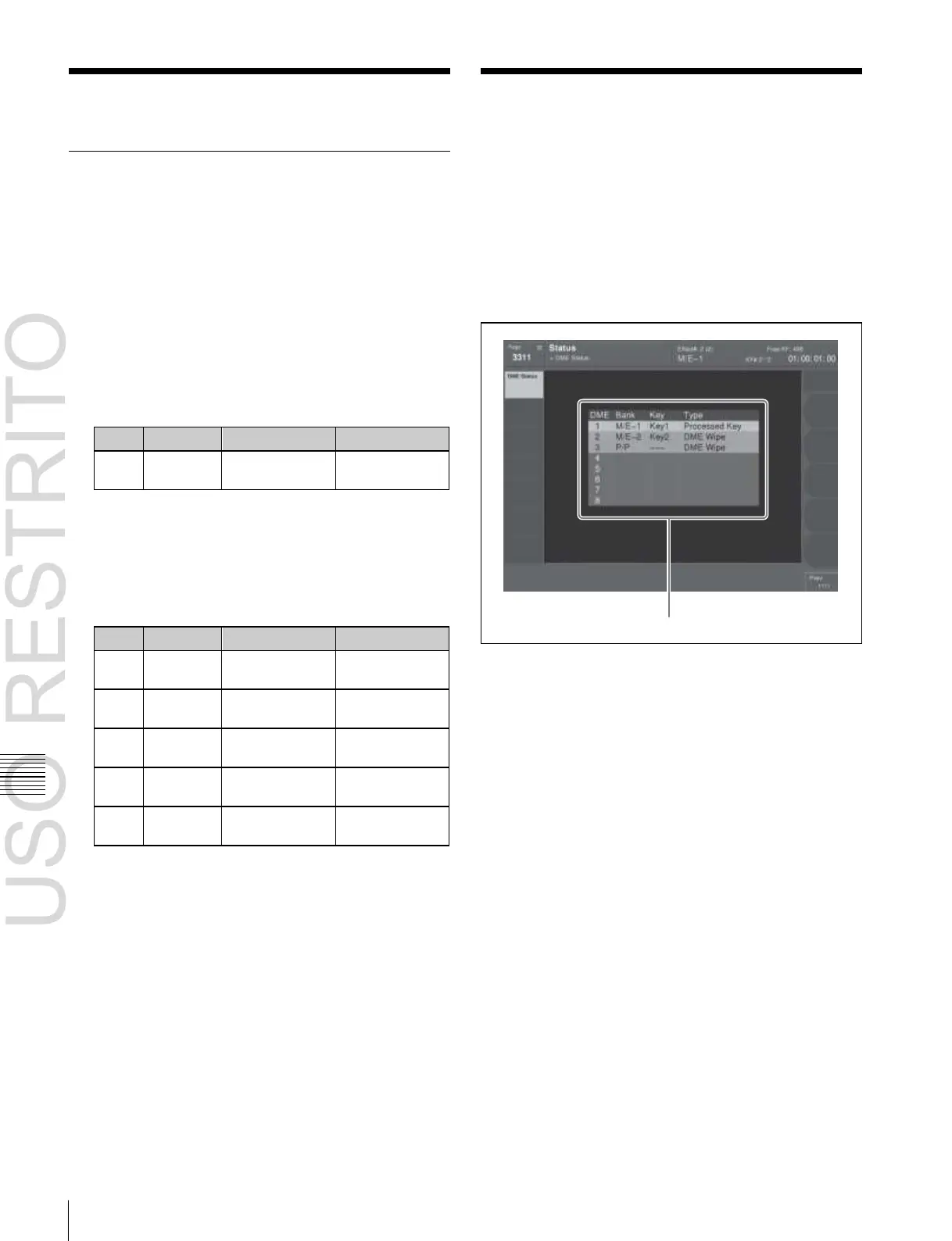

DME status display
For each DME channel, you can see how the DME is being
used in the corresponding operation block.
The display background color also indicates the following
differences in the way in which a DME is being used.
Blue: The DME is currently being used in other than the
final program output.
Red: The DME is currently being used in the final
program output.
To return adjustment values to their defaults, press
[Unity].
