Applying Special Effects (Nonlinear Effect Settings) 313
Knob
Parameter
Adjustment
Setting values
1
Amp H
Amplitude of
waves in
horizontal
direction
0.00 to 100.00
2
Freq H
Frequency of
waves in
horizontal
direction
0.00 to 100.00
3
Offset H
a)
Horizontal
direction in
which to
offset wave
phase and
amount of
movement
–16.00 to +16.00
c)
–64.00 to +64.00
d)
4
Speed H
b)
Horizontal
direction and
speed of
waves
–100.00 to +100.00
5
Slant
Slant of
waves
–8.000 to +8.000
Knob
Parameter
Adjustment
Setting values
1
Amp V
Amplitude of
waves in
vertical
direction
0.00 to 100.00
2
Freq V
Frequency of
waves in
vertical
direction
0.00 to 100.00
Chapter
11
DME
Operations
Applying Special Effects
(Nonlinear Effect
Settings)
You can add a variety of effects, including effects that
change the shape of the image as a whole.
1 In the DME menu, select VF4 ‘Non Linear/Corner
Pin’ and HF1 ‘Non Linear.’
A menu for selecting the various effects appears.
2 Display the menu for the effect that you want to apply
by pressing its button.
3 Make the settings for the selected effect.
Notes
• It is not possible to apply two or more nonlinear
effects at the same time. Turning any nonlinear
effect on automatically turns all other nonlinear
effects off.
• The Flex Shadow function cannot be enabled when
any of the nonlinear effects Page Turn, Roll,
Cylinder, and Sphere is enabled.
• However, the Flex Shadow function is not supported
on the MVE-8000A.
To turn an effect off
In the setting menu, press the button for the effect name,
turning it off, or in the Type menu press [OFF] in the lower
right part of the window.

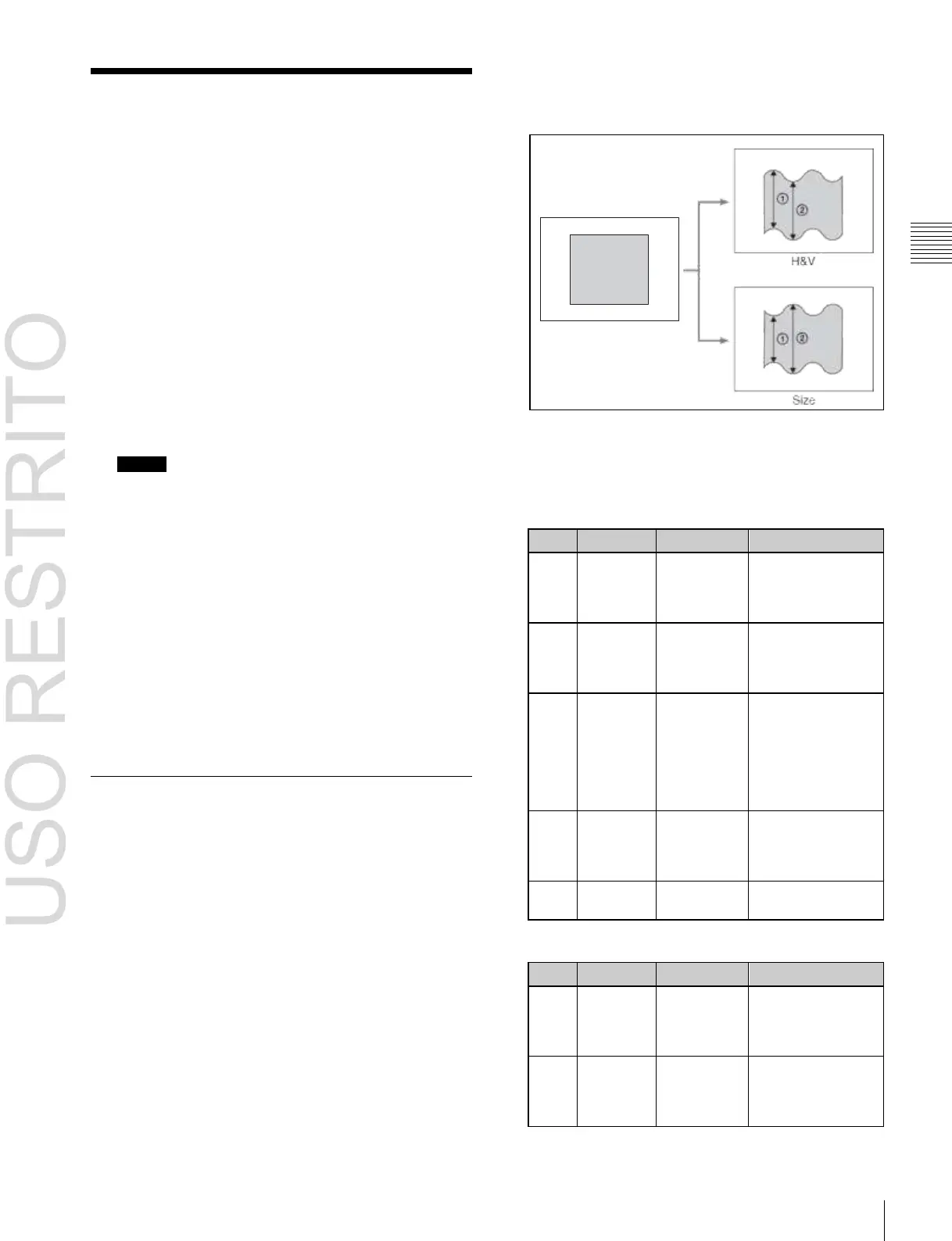

Size: Create waves by reducing and expanding the
image. This mode allows waves to be created in
one direction only.
Size not modulated.
1 and 2 are same size.
Before modulation
Create waves by
reducing 1 and
expanding 2 the image.
2 Set the following parameters, according to the selected
mode.
When H&V is selected
Parameter group [1/2]
Wave Settings
There are two modes: H&V and Size. You can set the size
and frequency of the waves, the wave form, the amount of
wave movement, and the range. In H&V mode, you can
also set the wave angle.
To apply the Wave effect
With the Wave menu displayed, use the following
procedure.
1 In the <Mode> group, select the wave modulation
mode.
H&V: Modulate vertically and horizontally without
changing the size of the image. This mode allows
waves to be created in both the vertical and
horizontal directions at the same time.
Parameter group [2/2]
