Chapter
15
Utility/Shotbox
Shotbox Execution
You can recall (and run) shotbox registers from the
following control blocks.
This section describes the various methods of operation.
•
Numeric keypad control block (see page 493)
•
Flexi Pad control block (see page 493)
•
Multifunction Flexi Pad control block (see page 493)
•
Cross-point control block (see page 494)
•
Utility/shotbox control block (see page 494)
•
The number of the recalled register appears in the
display.
•
The region selection buttons corresponding to the
regions for which the effect is set light.
•
If auto run is set for the specified shotbox register, on
recall the effect is immediately executed.
•
If you recall an empty register, then shotbox
execution has no effect.
When auto run is not set for the recalled register
Simply recalling the register does not run the effect. To
do this, in the keyframe control block, press the [RUN]
button.

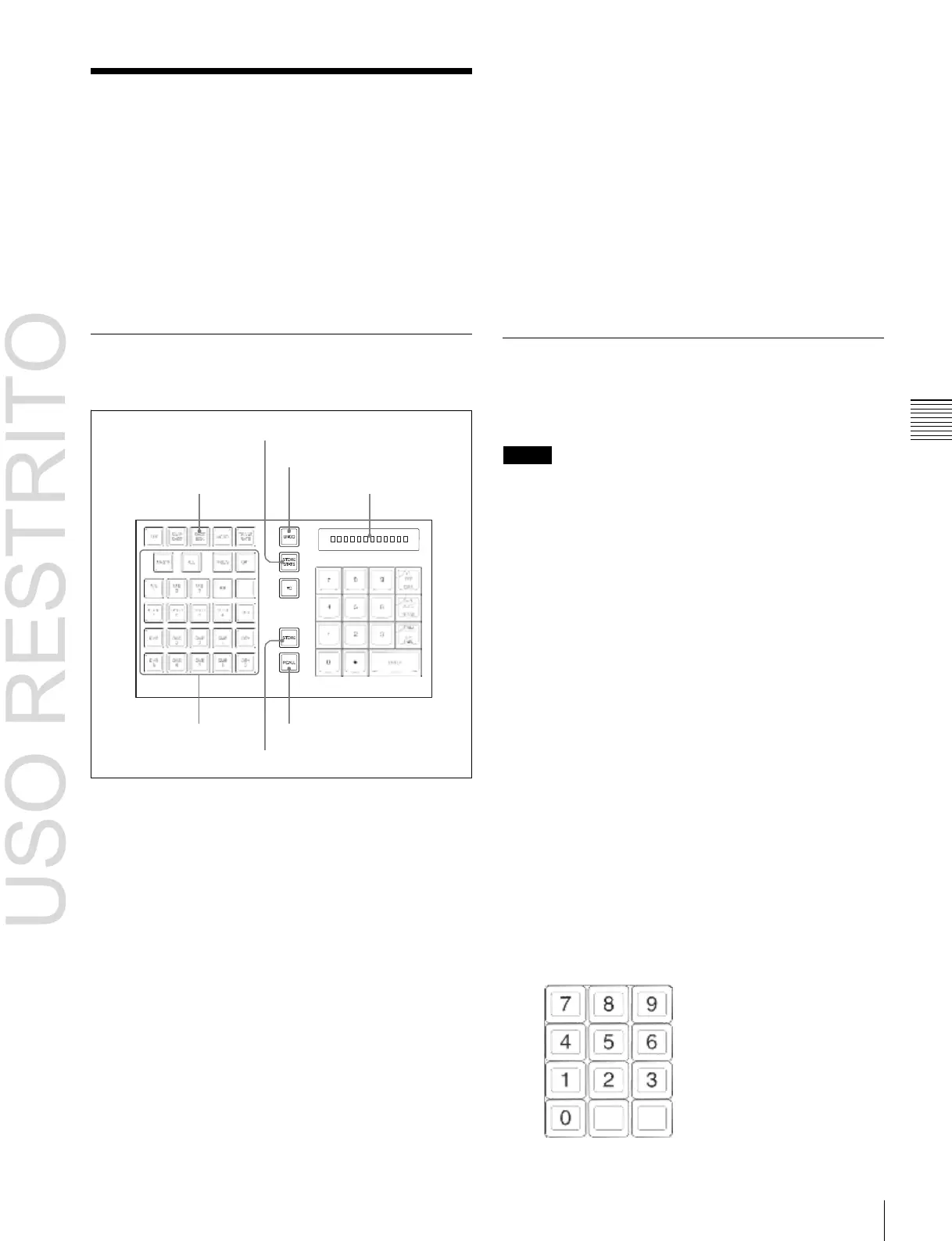

Shotbox Execution From the
Numeric Keypad Control Block
STORE STATS button
Shotbox Execution in the Flexi Pad
Control Block or the Multifunction
Flexi Pad Control Block
UNDO
button
Notes
SHOTBOX button
Display
In the simple type of Flexi Pad control block, shotbox
operations are not possible. You can carry out shotbox
operations with a standard type Flexi Pad control block or
Multifunction Flexi Pad control block.
Region selection
buttons
RCALL button
STORE button
The following describes the use of the standard type Flexi
Pad control block.
1 In the Flexi Pad control block, press the [SHOTBOX]
button, lighting the [SHOTBOX] button amber.
•
This allocates the Flexi Pad control block to shotbox
operations.
•
The previously selected bank number and the last
recalled register number appear in the numeric
display.
Numeric keypad control block
1
In the numeric keypad control block, press the
[SHOTBOX] button, turning it on.
•
This allocates the numeric keypad control block to
shotbox operations.
•
The [RCALL] button lights amber.
•
The display shows the last recalled register number.
2
With the numeric keypad buttons, enter the desired
register number.
•
The display now shows the entered register number.
•
If the specified register is empty, an “E”
automatically appears after the register number.
3
Press the [ENTER] button.
•
This runs the specified shotbox register.
2 Using any of the following methods, select the bank.
•
To select a register in bank 0, press the [BANK0]
button.
•
To select a register in bank 1, press the [BANK1]
button.
•
Press the [BANK SEL] button, and when the
memory recall section display changes as follows,
press the button from 0 to 9 corresponding to the
bank you want to select.
To Next Page
