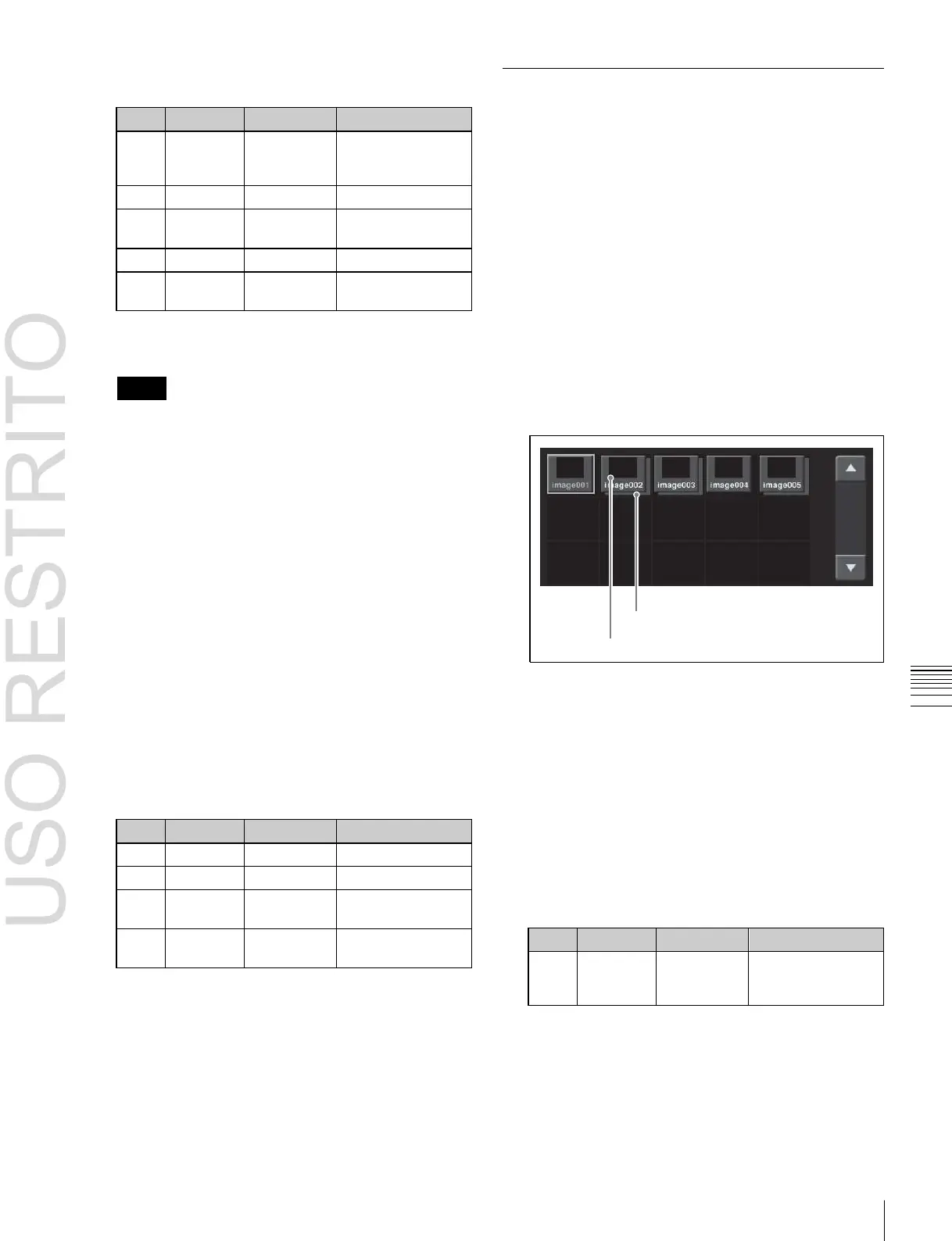

Still Image Operations 209
Knob
Parameter
Adjustment
Setting values
1
Video Gain
Overall gain
of the video
signal
–200.00 to +200.00
2
Y Gain
Y signal gain
–200.00 to +200.00
3
C Gain
Chrominanc
e signal gain
–200.00 to +200.00
4
Hue Delay
Hue delay
–180.00 to +180.00
5
Black
Level
Y signal
black level
–7.31 to +109.59
Knob
Parameter
Adjustment
Setting values
1
Top
Top position
–100.00 to +100.00
2
Left
Left position
–100.00 to +100.00
3
Right
Right
position
–100.00 to +100.00
4
Bottom
Bottom
position
–100.00 to +100.00
Knob
Parameter
Adjustment
Setting values
1
Scroll
Thumbnail
display
scrolling
1 to maximum value
Chapter
7
Frame
Memory
2 Use the knobs to adjust the following parameters.
Recalling Still Images
You can recall an image file saved in memory, and allocate
to any of the FM1 to FM8 outputs.
To return the settings to the default values, press
[Unity] in the <Video Process> group.
Notes
When a pair setting is active, it is coupled to the video
process on/off setting, but the above parameter
settings are only valid for frame memory source bus 1.
The pair setting cannot be used to set the frame
memory source bus 2. If you want to set video process
for frame memory source bus 1 only with the pair
setting when old settings for frame memory source bus
2 remain, return the frame memory source bus 2
settings to their default values. When setting video
process for the frame memory source bus 2, disable the
pair setting.
Setting a mask
Masks can be set separately for frame memory source
buses 1 and 2. To apply a mask to the signal selected on
frame memory source bus 1, for example, use the
following procedure in the Still >Freeze/Store menu.
1 Press [Box Mask], turning it on.
2 Use the knobs to adjust the following parameters.
Recalling a still image
To recall a still image file saved in memory using the
thumbnails, and assign it to an FM output, use the
following procedure.
1 In the Frame Memory menu, select VF1 ‘Still’ and
HF1 ‘Recall.’
The Recall menu appears.
• When [Pair] is on, only pair files (pairs of main file
and sub file) are displayed.
• When [Pair] is off, both single files and pair files
appear (see following figure).
Sub file
Main file
2 In the frame memory selection area, select the FM to be assigned (see page 207).
3 If [Direct Recall] is on, press and turn it off.
4 Select the desired folder in the folder selection area.
By pressing [More] to switch the display, you can
select from a maximum of 12 folders.
Thumbnails of the files within the selected folder
appear.
5 Using the arrow keys or turning the knob, scroll the
file thumbnail display.
3 To link the masks on frame memory source buses 1
and 2, press [Mask Link], turning it on.
6 Press the thumbnail of the still image you want to
recall.
7 Press [Recall].
