Names and Functions of Parts of the Control Panel
Chapter
2
Menus
and
Control
Panel
It is also possible to change the assignment of these buttons
in setup.
For details, see “Assigning Functions to the Menu Control
Block Top Menu and User Preference Buttons” in Chapter
19 (Volume 2).

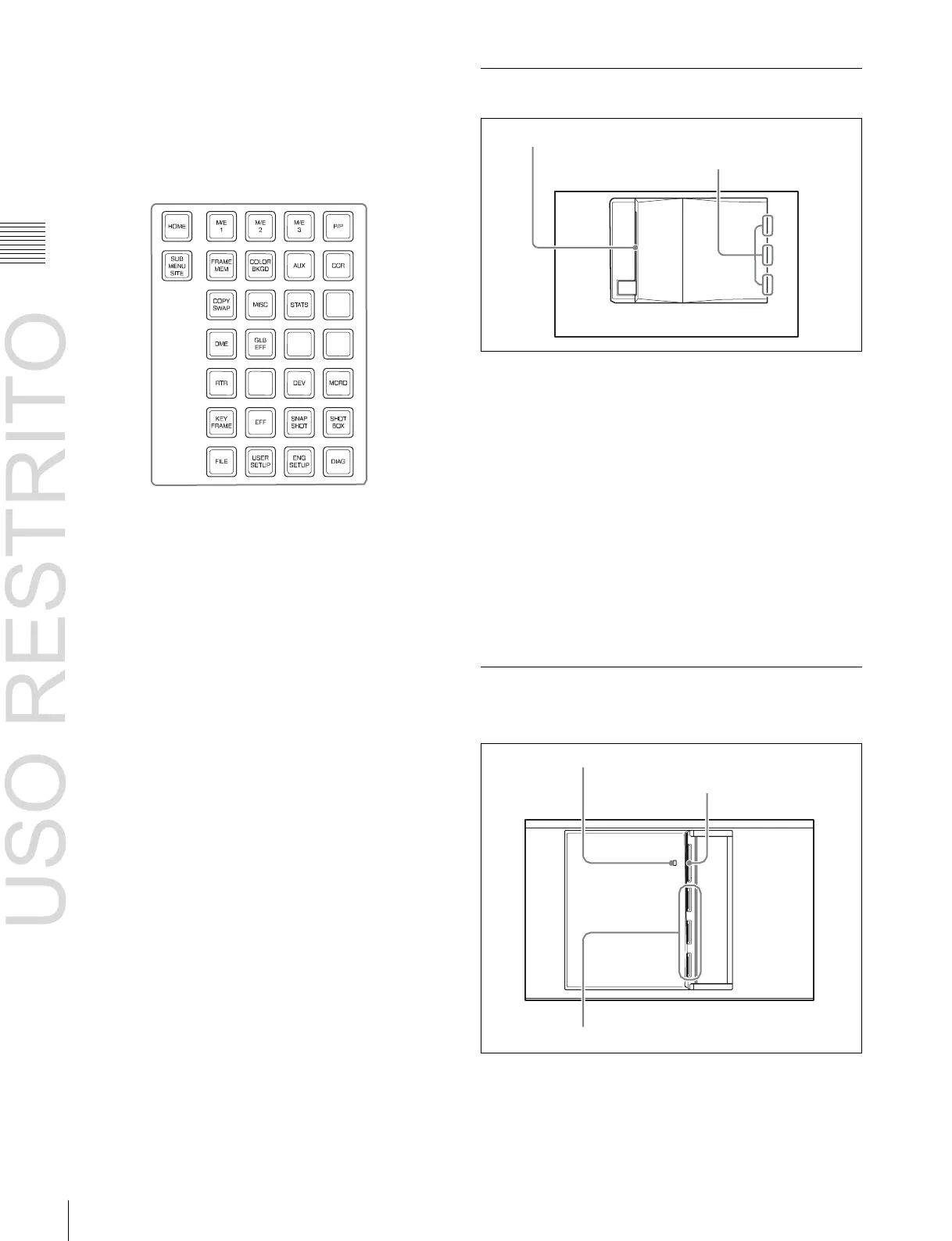

Memory Card/USB Adaptor Block
1
Memory card slot
2
DEVICE connectors
a
Memory card slot
This slot accepts a PCMCIA Type II compliant memory
card. You can use it in software installation, and for saving
and reading in data, such as snapshot, keyframe, effect,
and setup data.
b
Menu display
This shows the menu currently in use.
c
Knobs
These adjust the parameter values appearing in the menu.
d
User preference buttons
These recall the functions or menus assigned to them in the
Setup menu.
In the default setup, nothing is assigned to the [PREFS 1]
to [PREFS 7] buttons.
It is also possible to change the assignment of these buttons
in setup.
For details, see “Assigning Functions to User Preference
Buttons” in Chapter 19 (Volume 2).
PREFS 8 button: When this button is on, control of an
editor from the Remote1 port on the rear panel of the
switcher is possible. However, even when it is off,
control of the Edit PVW bus is always possible.
b
DEVICE connectors
There are three USB connectors.
You can connect a device such as a mouse, keyboard, or
USB storage that is equipped with a USB interface to any
of these connectors.
For details on the devices that can be connected, consult
your Sony representative.
“Memory Stick”/USB Connections
Block
1
“Memory Stick” status indicator
2
“Memory Stick” slot
3
DEVICE connectors
a
“Memory Stick” status indicator
Lights in red during access to a “Memory Stick.”
To Next Page
