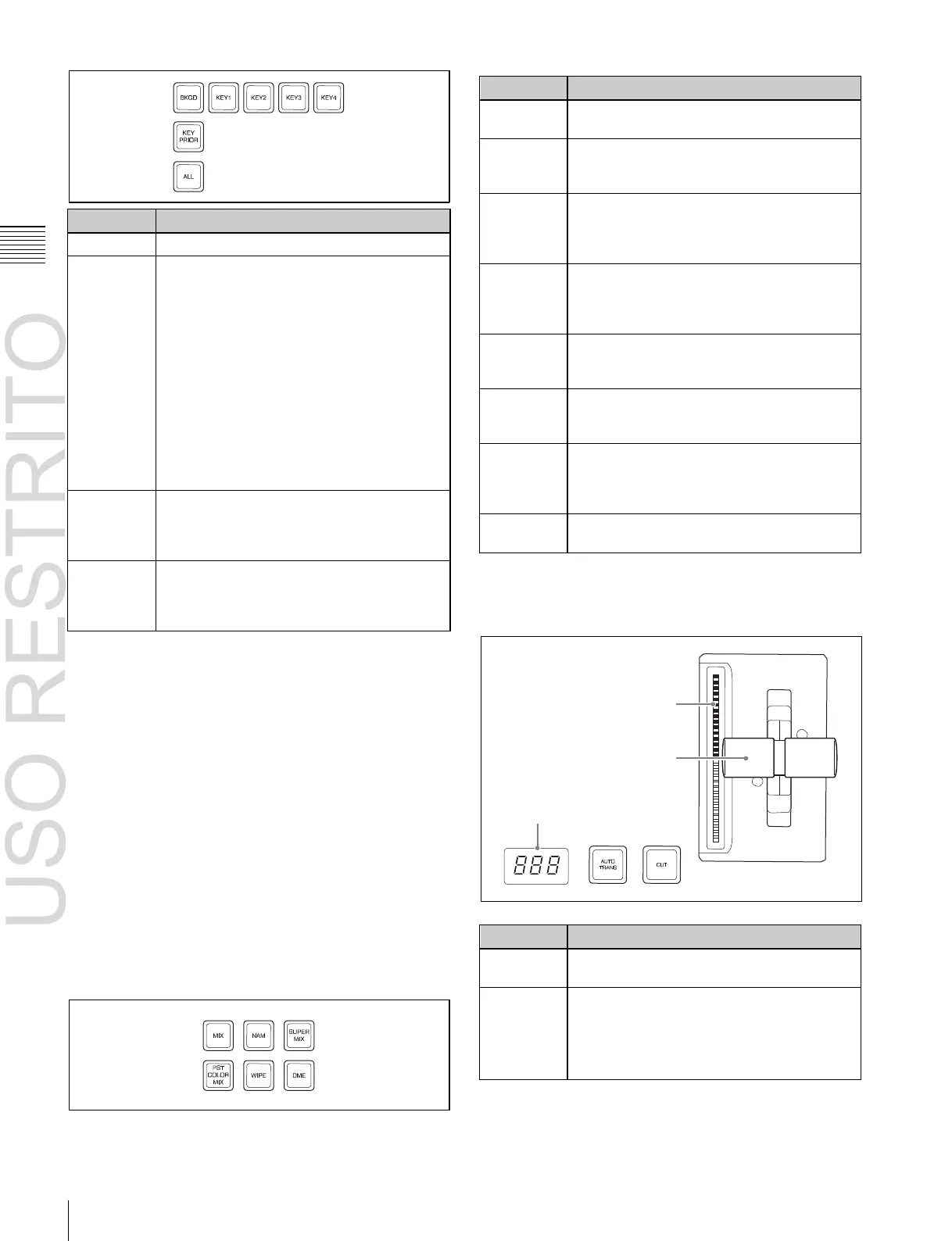

Names and Functions of Parts of the Control Panel
In a background transition, the new video
fades in as the current video fades out.
The current and new video signals are
compared, and the signal with the higher
luminance level is given priority in the output.
The current video is maintained at 100%
output for the first half of the transition as the
new video is mixed while increasing
progressively to 100%.
The color matte (unpatterned display) is
inserted during transition, replacing the
current video by the color matte, and then
replacing the color matte by the new video.
The current video is replaced by the new
video, using the wipe pattern selected in the
Wipe menu.
A wipe type of transition is carried out, using
the DME effect selected in the DME Wipe
menu.
A recorded clip is played back together with
the transition. At this point, you can also carry
out a transition (wipe or mix (dissolve))
simultaneously together with the clip.
Press this button, turning it on, to enable
using the fader lever as a keyframe fader.
Next transition changes the background.
KEY1 to
KEY8
(DSK1 to
DSK8 in the
PGM/PST
bank)
• Press this button, turning it on, to make the
next transition insert or remove the
corresponding key (keys 1 to 8).
• If a key is currently inserted it will be
removed, and vice versa.
• In the PGM/PST bank, this inserts or
removes downstream keys 1 to 8.
For details of assignment and selection of
keys 5 to 8, see the following sections in
Appendix: “Assigning Buttons for Selection of
Keys 5 to 8 in the Setup Menu” (page 397)
and “Selecting Keys 5 to 8 for Next Transition”
(page 398).
When this button is lit, the setting of the key
priority after the next transition is enabled.
The key priority after the next transition
appears in the key status display.
Pressing this button turns on a preselected
set of the [BKGD], [KEY1] to [KEY8], and
[KEY PRIOR] buttons. Make this setting in the
Setup menu.
This comprises multiple LEDs, which show
the progress of the transition.
• Move up or down to carry out the transition.
• When a transition type selection button to
which the [KF] button function has been
assigned is lit, you can use this as a
keyframe fader.
Chapter
2
Menus
and
Control
Panel
c
Transition execution section
This section is used to carry out a transition and check the
progress of the transition.
b
Transition type selection buttons
Press one of these buttons, turning it on, to determine the
type of the next transition (see page 95).
For the method of assigning transition types, see
“Transition Control Block Button Assignments” in
Chapter 19 (Volume 2).
When multi-program mode is selected in the Setup menu,
two or more of the following buttons may light.
For details of multi-program mode, see “Setting
Transition Control Block Button Assignments” in Chapter
19 (Volume 2).
You can also assign a function to these buttons to select
whether or not the fader levers are used as keyframe
faders.
Transition indicator
Fader lever
Transition rate display
