Names and Functions of Parts of the Control Panel 63
In a background transition, the new video
fades in as the current video fades out.
The current and new video signals are
compared, and the signal with the higher
luminance level is given priority in the output.
The current video is replaced by the new
video, using the wipe pattern selected in the
Wipe menu.
A wipe type of transition is carried out, using
the DME effect selected in the DME Wipe
menu.
A recorded clip is played back together with
the transition. At this point, you can also carry
out a transition (wipe or mix (dissolve))
simultaneously together with the clip.
Press this button, turning it on, to enable
using the fader lever as a keyframe fader.
Chapter
2
Menus
and
Control
Panel

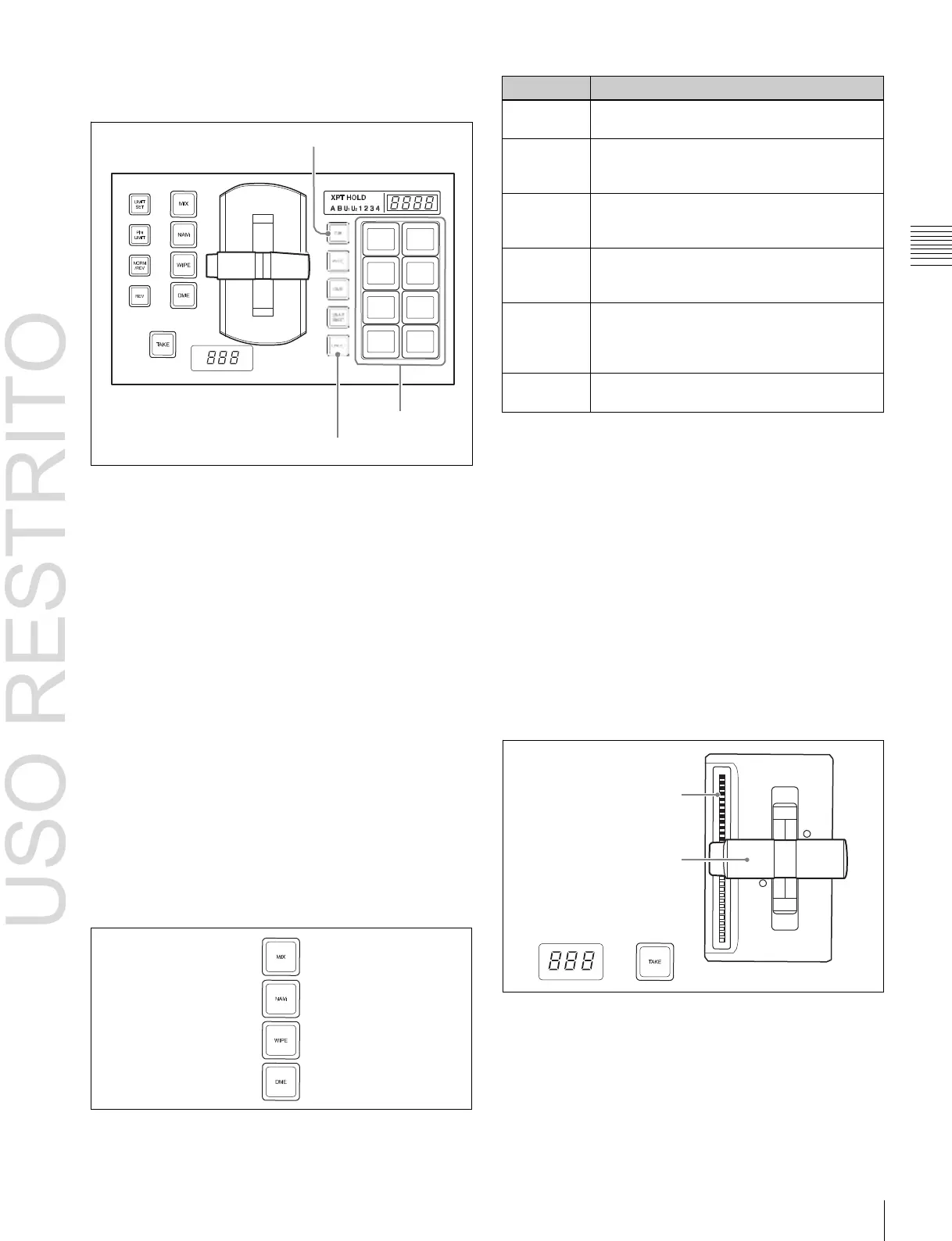

Transition control block and flexi pad
control block (with [INH] button)
qs
INH button
Memory recall section
UNDO button
a
Transition type selection buttons
You can assign these buttons in setup to any transition
type.
For details, see “Overall Control Panel Settings (Config
Menu)” in Chapter 19 (Volume 2).
Press any of the following buttons, turning it on, to select
the transition type.
Press one of these buttons, turning it on, to determine the
type of the next transition for a background.
To select the key transition type (see page 95), hold down
the [KEY1] or [KEY2] button, and press one of the
following buttons, turning it on.
When multi-program mode is selected in the Setup menu,
two or more of the following buttons may light.
For details, see “Setting the Operation Mode” in Chapter
20 (Volume 2).
You can also assign a function to these buttons to select
whether or not the fader levers are used as key frame
faders.
b
Key transition selection buttons
To insert or delete key 1 on the next transition, hold down
the [KEY1] button, and select the type of transition using
the transition type selection buttons. If the key is currently
not inserted, the transition will insert it, and if the key is
currently inserted, the transition will delete it. You can use
the [KEY2] button in a similar way.
While these buttons are held down, you can select a key
source with the cross-point buttons on the key bus.
Pressing one of these buttons twice in rapid succession
changes the state of the corresponding key bus so that a
cross-point can be selected.
c
Transition execution section
This section is used to execute a transition, and check the
progress of the transition.
Transition indicator
Fader lever
