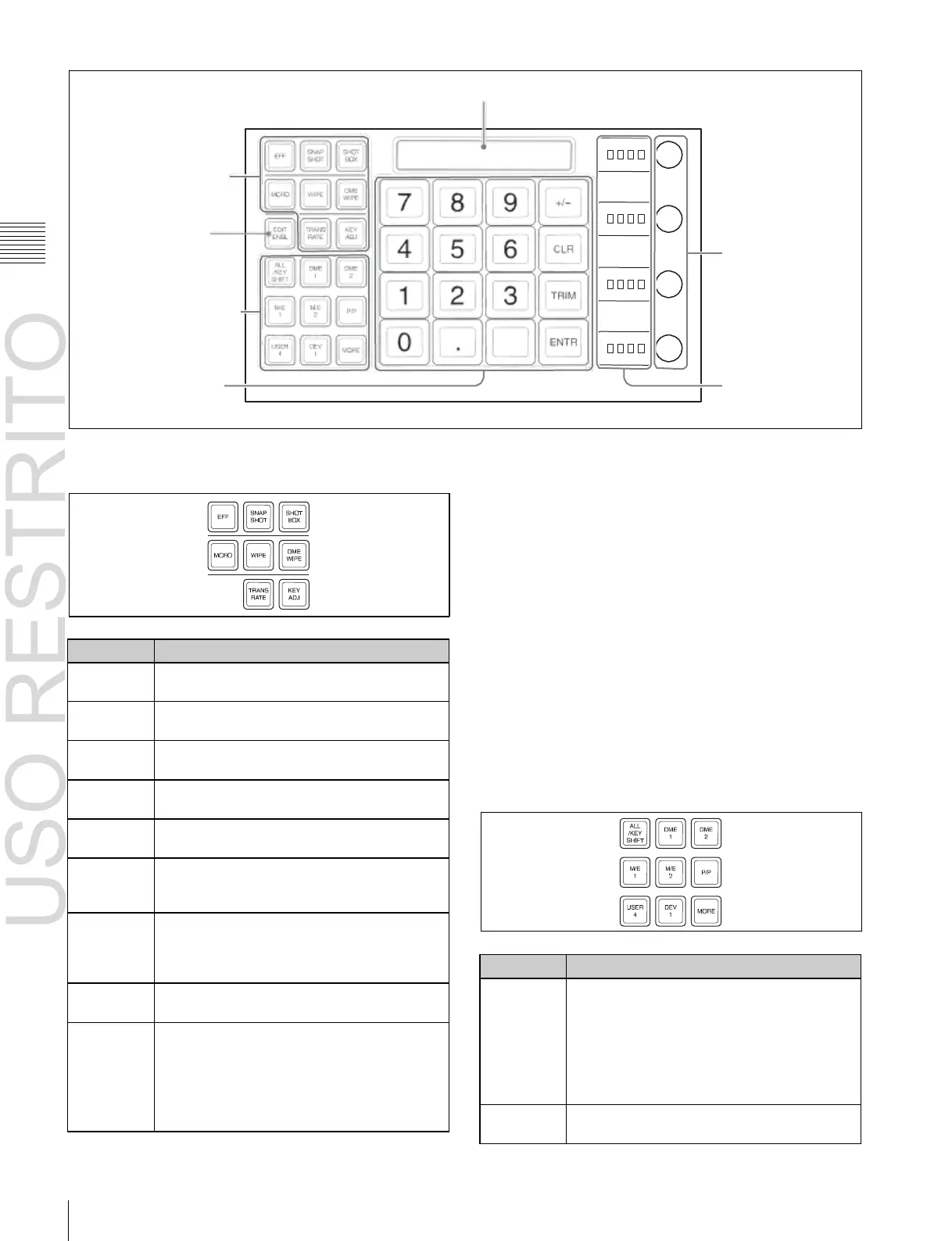

Names and Functions of Parts of the Control Panel
Name
Description
EFF (effect)
Press this to carry out effect creation/recall/
editing/execution/deletion.
SNAPSHOT
Press this to carry out snapshot creation/
recall/editing/deletion.
SHOTBOX
Press this to carry out shotbox creation/recall/
editing/execution/deletion.
MCRO
(macro)
Press this to carry out macro creation/editing/
execution/deletion.
WIPE (wipe
snapshot)
Press this to carry out wipe snapshot creation/
recall/deletion and wipe adjustments.
DME WIPE
(DME wipe
snapshot)
Press this to carry out DME wipe snapshot
creation/recall/deletion and DME wipe
adjustments.
TRANS
RATE
(transition
rate)
Press this to set the transition rate.
KEY ADJ
(key adjust)
Press this to carry out key adjustments and
set modifiers.
KEY SS
(key
snapshot)
• Press this to carry out key snapshot
creation/recall/deletion.
• By default, this is not assigned to a mode
selection button, so before use it is
necessary to assign to a mode selection
button in the Setup menu.
Chapter
2
Menus
and
Control
Panel
4 Alphanumeric display
1 Mode selection buttons
2 EDIT ENBL button
3 Region selection buttons
7 Adjustment knobs
5 Memory recall section 6 Adjustment knob
displays
a Mode selection buttons
Pressing the following buttons selects the mode.
b EDIT ENBL (edit enable) button
By pressing this, turning it on, you can carry out the
following operations.
• Effect creation/editing
• Snapshot attribute setting
• Shotbox creation/editing
• Macro creation/editing
• Wipe adjustments
• DME wipe adjustments
c Region selection buttons
These select the function block to which operations apply.
When the mode selection button selection is EFF/
SNAPSHOT/SHOTBOX/MCRO, you can select multiple
region selection buttons simultaneously. In this case, the
first button pressed lights green as the reference region,
and the other buttons pressed light amber (the buttons for
the regions shown in the memory recall section are
yellow).
Name
Description
ALL/KEY
SHIFT
• Selects all regions.
• When any region is selected, press this
button to unset the selection of all regions.
• When KEY ADJ (key adjust) or KEY SS
(key snapshot) is selected as the function
mode, these buttons are for KEY5 to KEY8
selection.
DME 1 to
DME 2
Select DME channels.
