Configuration Guide 174
Configuring MAC VLAN Configuration Example

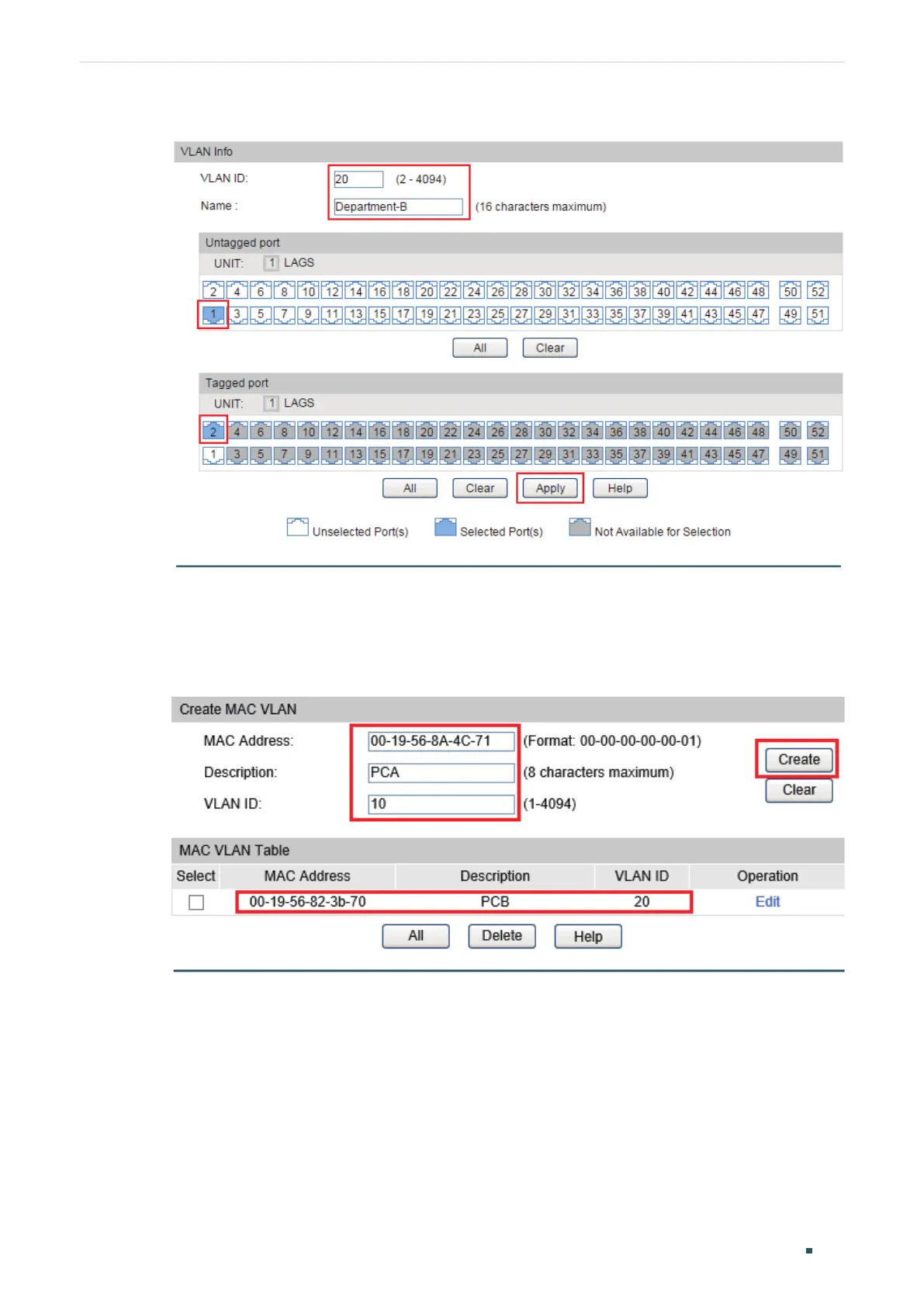

Figure 3-3 VLAN 20 Configuration
3) Choose the menu VLAN > MAC VLAN > MAC VLAN to load the following page. Enter
MAC Address, Description, VLAN ID and click Create to bind the MAC address of
Laptop A to VLAN 10 and bind the MAC address of Laptop B to VLAN 20.
Figure 3-4 MAC VLAN Configuration
4) Choose the menu VLAN > MAC VLAN > Port Enable to load the following page. Select
port 1/0/1 and click Apply to enable MAC VLAN for it.
