Configuring MAC VLAN Configuration Example
Configuration Guide
175

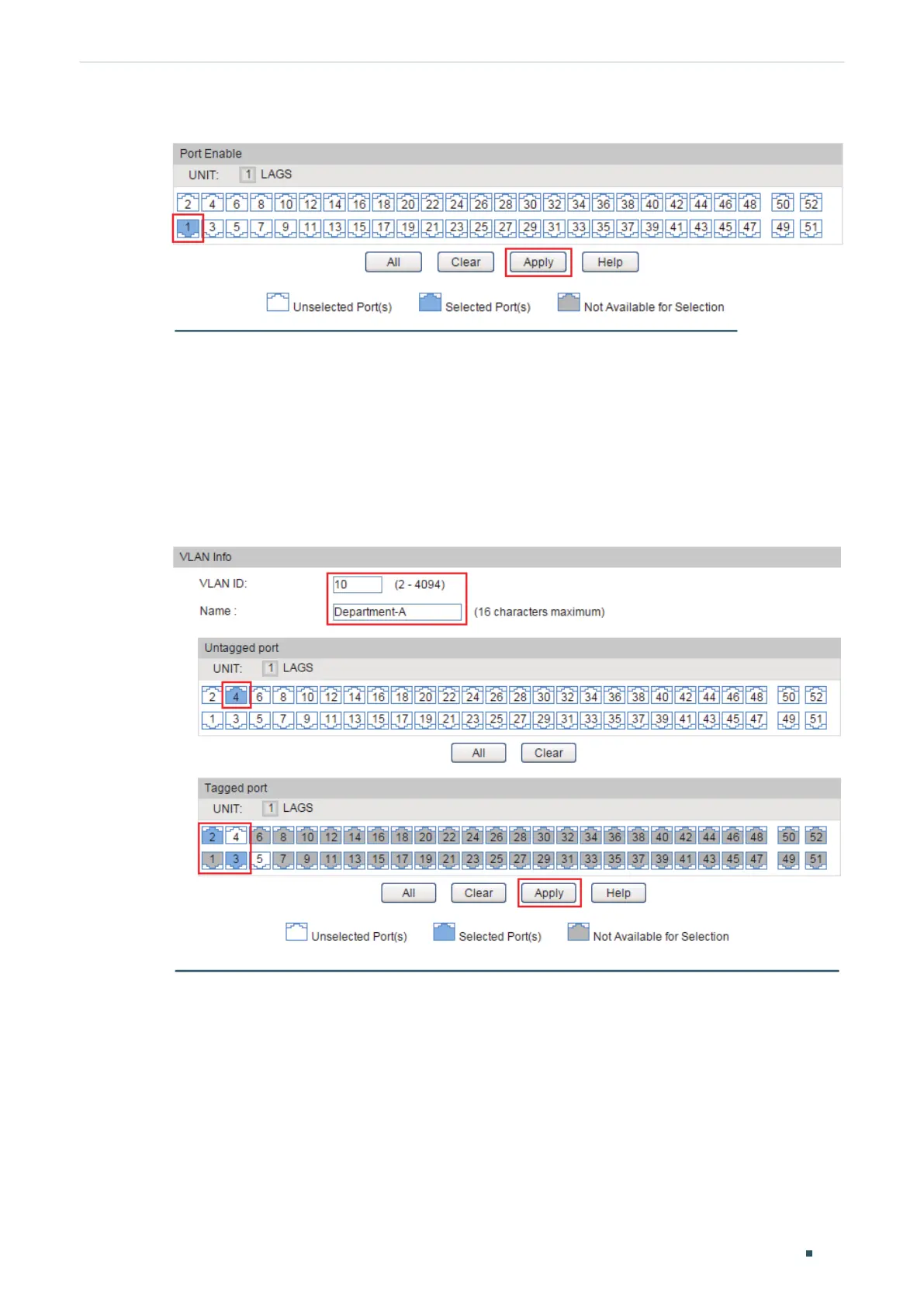

Figure 3-5 Enable MAC VLAN for the Port
5) Click Save Config to save the settings.

Configurations for Switch 3
1) Choose the menu VLAN > 802.1Q VLAN > VLAN Config and click Create to load the
following page. Create VLAN 10, and add port 1/0/4 as untagged port and ports 1/0/2-3
as tagged ports to VLAN 10. Click Apply.
Figure 3-6 VLAN 10 Configuration
2) Click Create to load the following page. Create VLAN 20, and add port 1/0/5 as
untagged port and ports 1/0/2-3 as tagged ports to VLAN 20. Click Apply.
