Configuring Layer 2 Multicast Configuration Examples
Configuration Guide
367

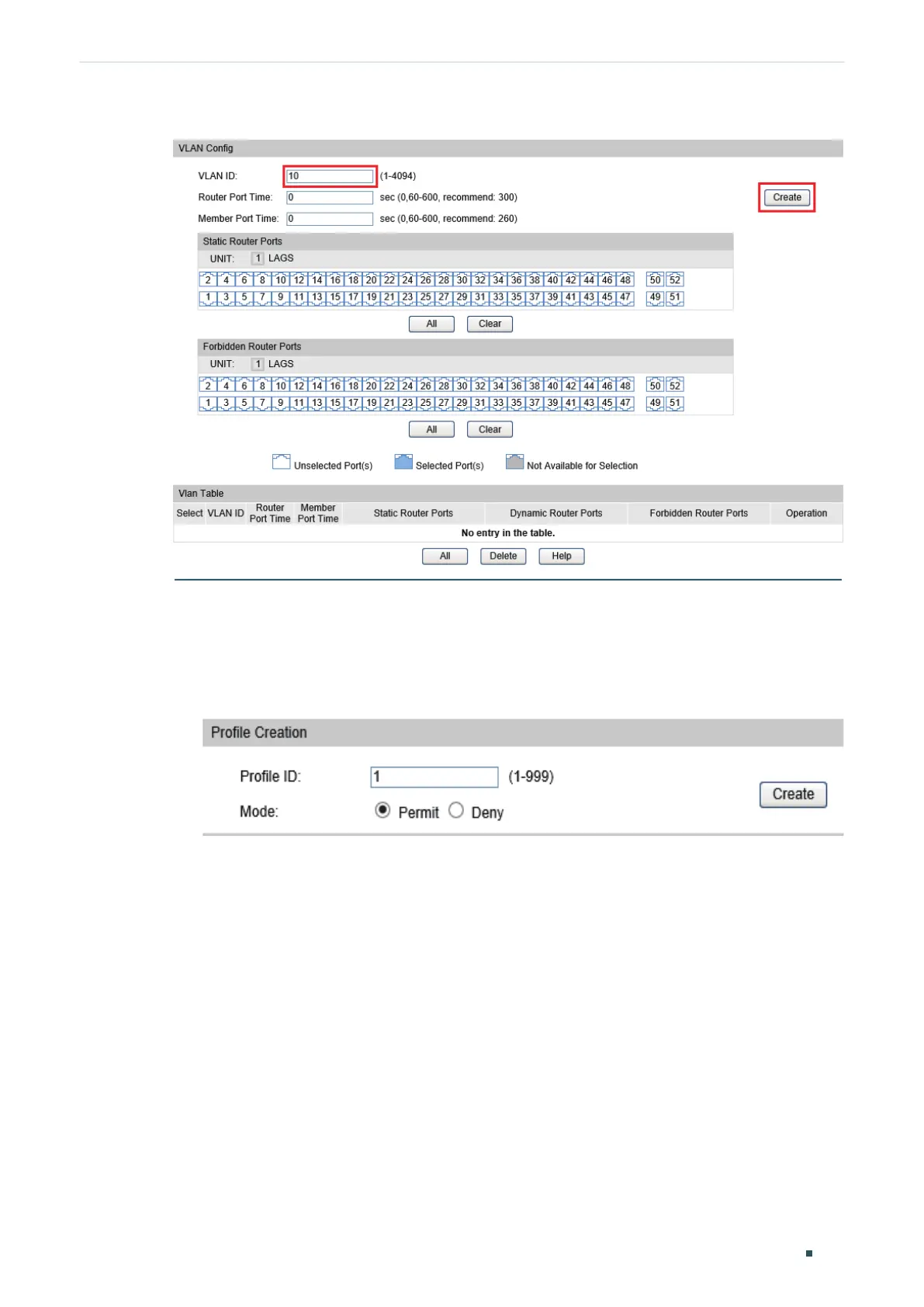

Figure 5-22 Enable IGMP Snooping in the VLAN
6) Specify the multicast data that Host C and Host D can receive.
a. Choose the menu Multicast > IGMP Snooping > Profile Config to load the following
page. Create Profile 1, select Permit as the Mode and click Create.
Figure 5-23 Create Profile 1
b. Choose the menu Multicast > IGMP Snooping > Profile Config to load the following
page.
