Configuration Guide 368
Configuring Layer 2 Multicast Configuration Examples

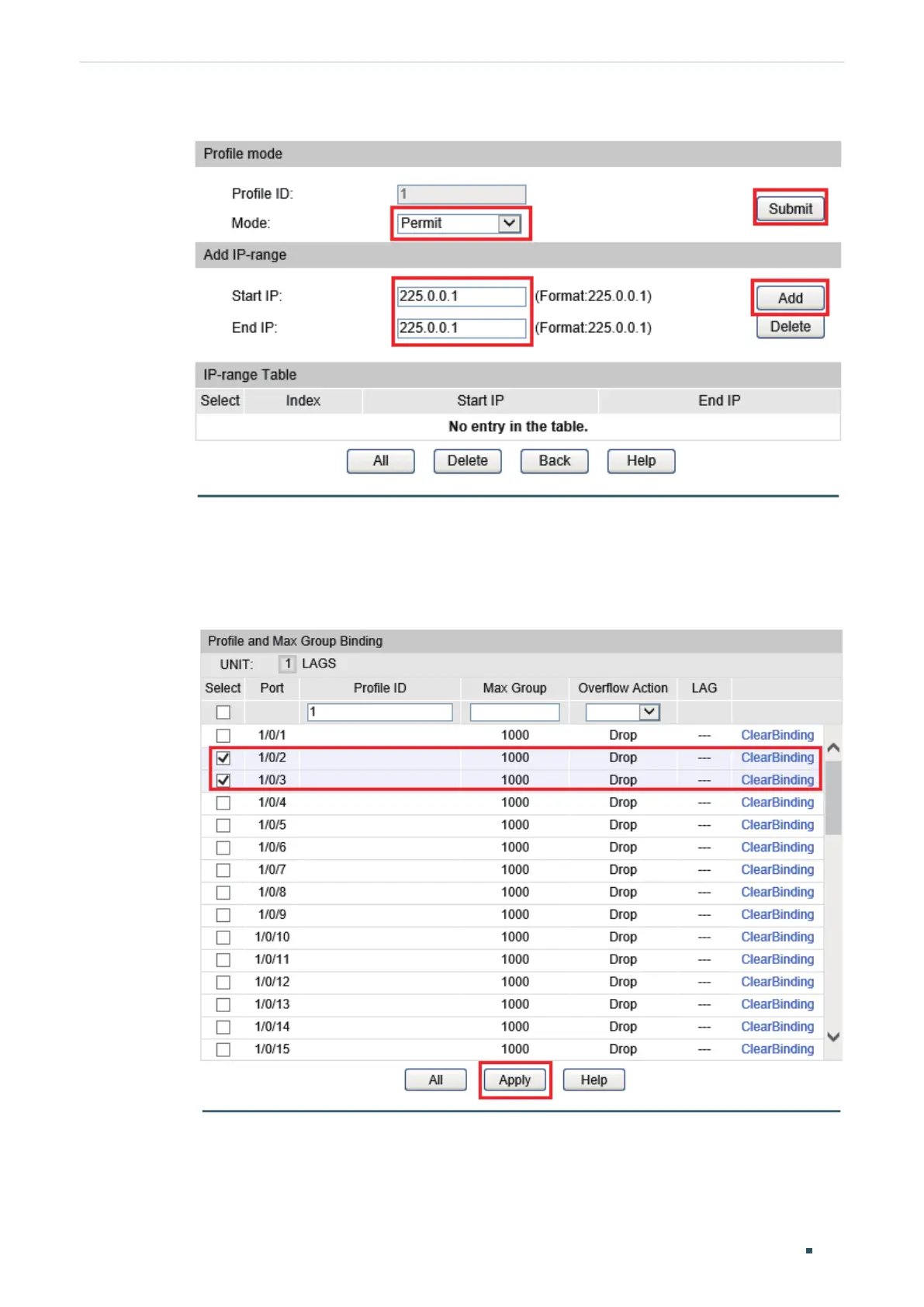

Figure 5-24 Edit Add IP-range in Profile 1
c. Choose the menu Multicast > IGMP Snooping > Profile Binding to load the
following page. Select port 1/0/2 and port 1/0/3, enter 1 in the Profile ID field and
click Apply to bind Profile 1 to these ports.
Figure 5-25 Bind Profile 1 to Port 1/0/2 and Port 1/0/3
7) Specify the multicast data that Host B can receive
a. Choose the menu Multicast > IGMP Snooping > Profile Config to load the following
page. Create Profile 2, select Deny as the Mode and click Create.
