Configuring Voice VLAN Configuration Example

Configuration Guide

473

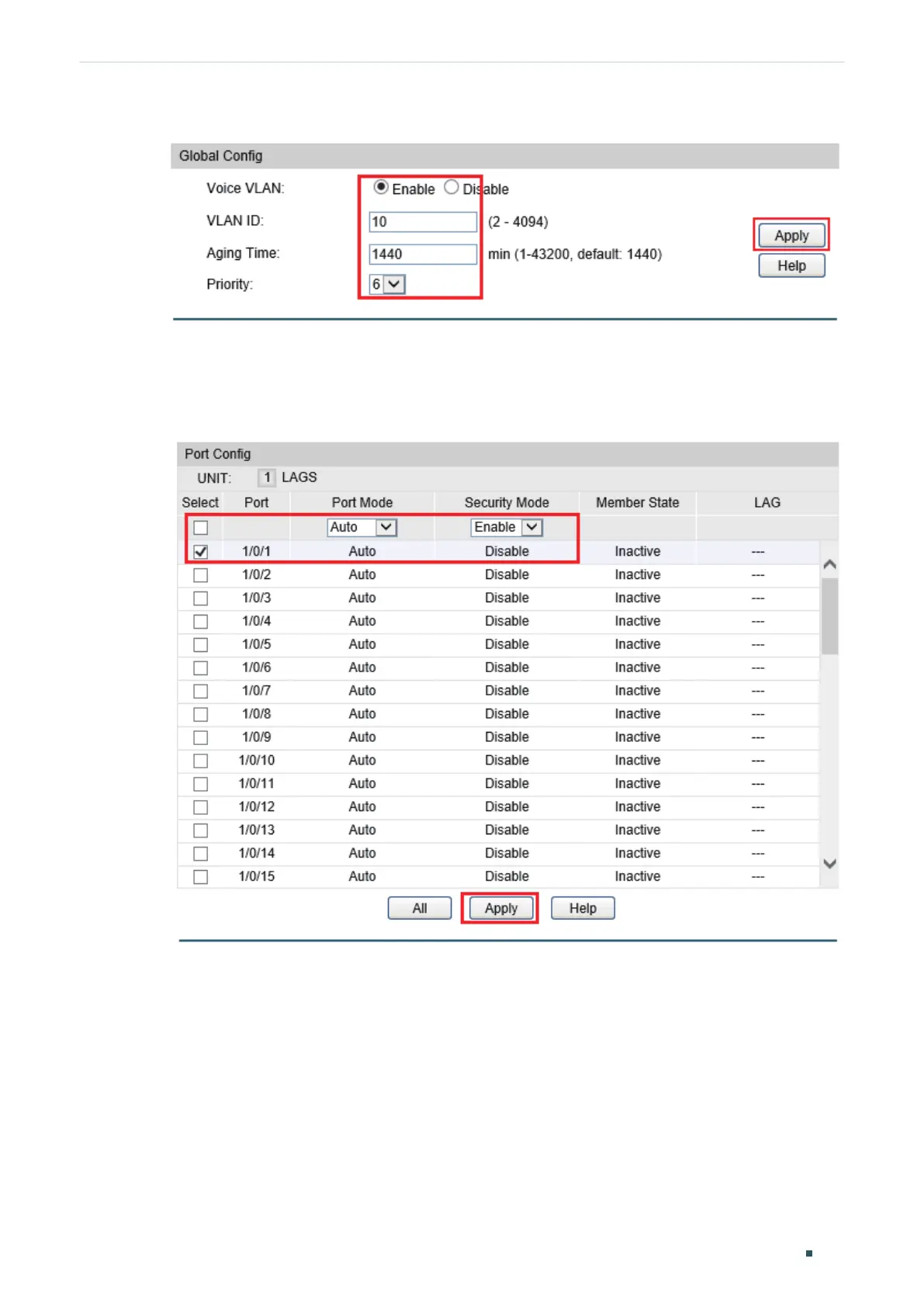

Figure 3-3 Configuring Voice VLAN Globally

3) Choose the menu QoS > Voice VLAN > Port Config to load the following page. Select

port 1/0/1, choose auto mode and enable security mode. Select port 1/0/2 and choose

manual mode. Click Apply.

Figure 3-4 Configuring Voice VLAN Mode on Port 1/0/1
