Configuring Voice VLAN Configuration Example
Configuration Guide
477

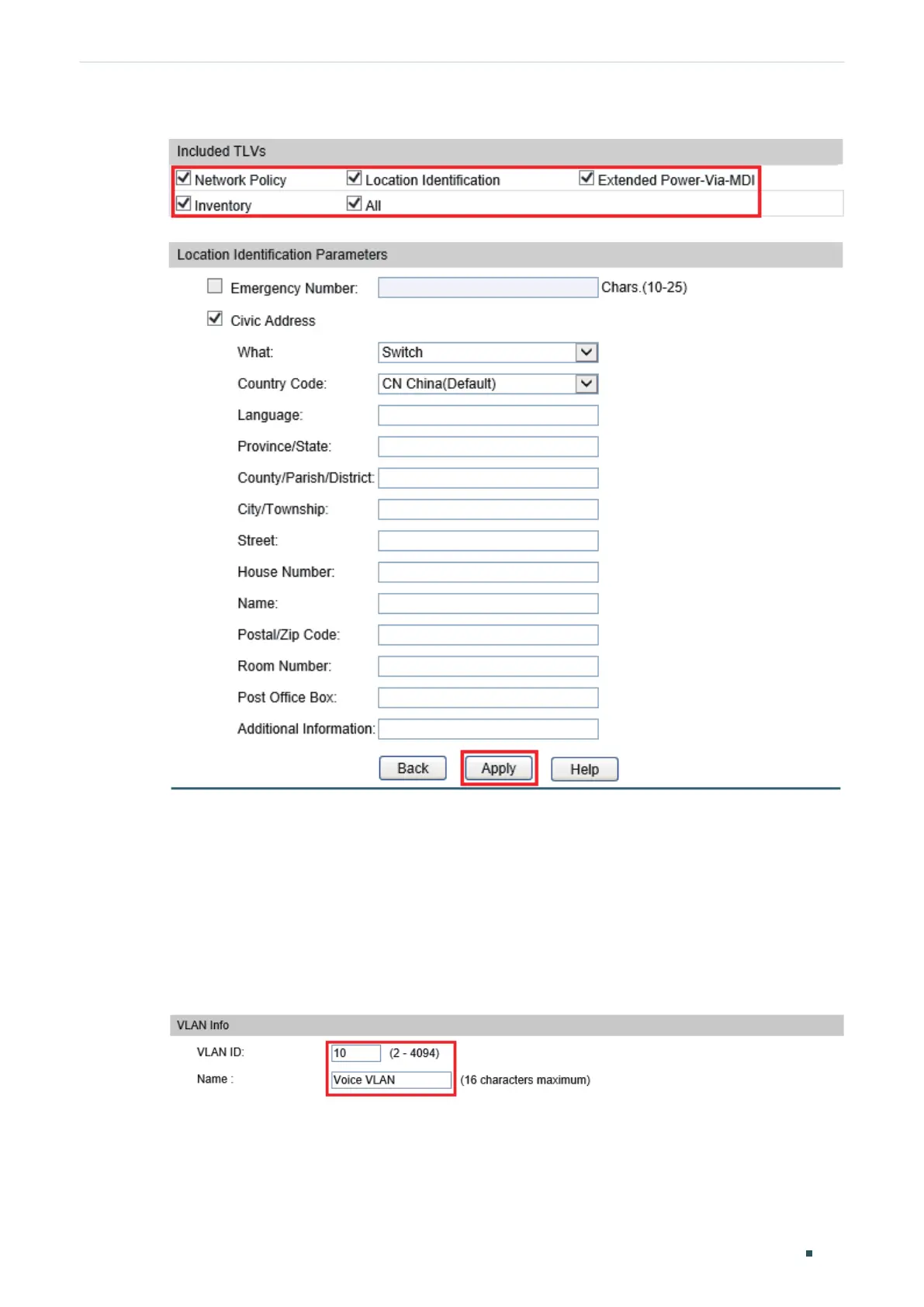

Figure 3-10 Configuring TLVs
For details about LLDP-MED, please refer to
Configuring LLDP
.
8) Click Save Config to save the settings.

Configurations for Switch B
1) Choose the menu VLAN > 802.1Q VLAN > VLAN Config and click Create to load the
following page. Create VLAN 10.
Figure 3-11 Creating a VLAN
2) Choose the menu QoS > Voice VLAN > Global Config to load the following page.
Enable voice VLAN, enter 10 in the VLAN ID field and set priority as 6.
